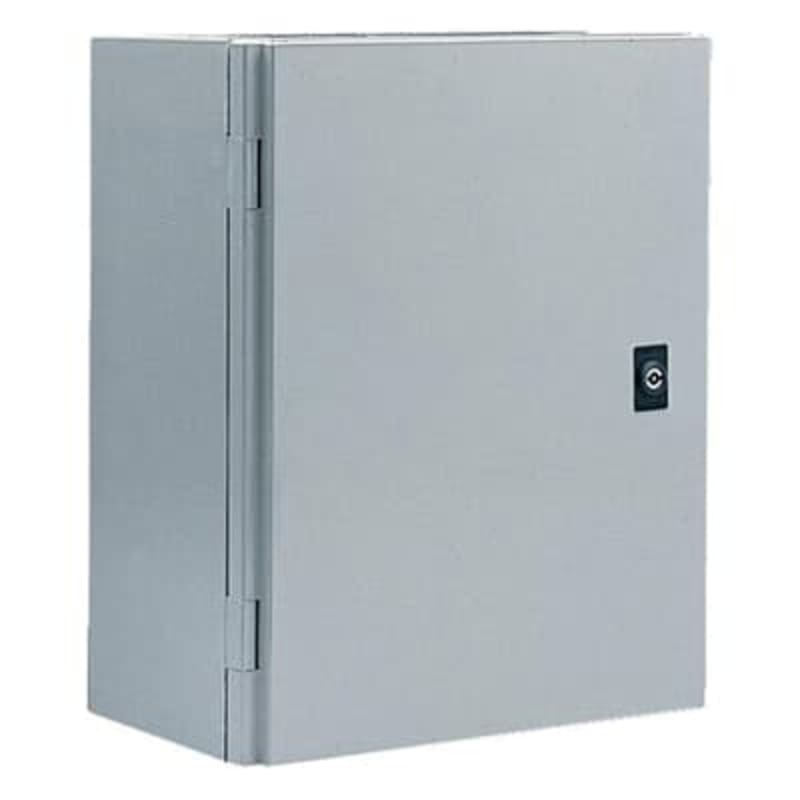

WALL-Mount Cabinet ARIA 86, 835X635X300
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 4TBA831098C0100 — The cabinets are made of light grey (RAL 7035), through-dyed, hot-pressed, glass-fibre reinforced polyester. Threaded bolts are available for mounting the mounting plate and mounting frame. ARIA cabinets offer optimum safety for both users and equipment, thanks to the protective insulation and the high degree of protection of up to IP66. ARIA cabinets withstand continuous temperatures up to 70°C (peak temperatures up to 130°C). Self-extinguishing and halogen-free. Rated insulation voltage Ui = 1000V. PA86 cabinet 835x635x300 ARIA, double bit 3mm, 3-point locking IP66, IK08.
Technical Specifications
- Manufacturer part number (MPN)
- 4TBA831098C0100
- EAN / GTIN
- 5411815234279
- Sales unit
- pcs
- Dimensions
- 835×635×300
- Maximum Load Capacity
- Enclosure 1334.16 N; Door(s) 78.48 N; Mounting Plate 1334.16 N
- Number of Flange Openings
- 0
- Number of Connection Holes
- 0
- Number of Conduit Inlets
- 0
- Number of Doors
- 1
- Number of Rows
- 0
- Cover Plate Type
- Door
- Enclosure Type NEMA
- Type4X
- Door Type
- Single
- Accessories Available
- Yes
- Impact Resistance Rating
- IK08
- Power Loss
- Total 80 W; Δt = 20K - Enclosures 80 W
- Surface Finishing
- Untreated
- Housing Material
- Plastic
- Material
- GRP (Glass fibre reinforced plastic)
- Cover Style
- Closed
- RAL Number
- RAL 7035 - Light Grey
- Color
- Grey
- Number of Modules
- 0
- Degree of Protection
- IP66
- Protection Class
- Isolated (Class II)
- Width in Number of Modular Spacings
- 0
- Product Net Width
- 635 mm
- Product Net Height
- 835 mm
- Product Net Depth / Length
- 300 mm
- Thickness
- Cabinet Plate 3 mm; Door Plate 3 mm
- CAD Dimensional Drawing
- 4TBA831098C0100STP
- Declaration of Conformity - CE
- 9AJK000579
- Mounting Type
- Surface mounted
- ETIM 9
- EC000261 - Enclosure/cabinet (empty)
- UNSPSC
- 39121103
- eClass
- V11.0 : 27142408
- Colour
- Grey
- Width
- 635 mm
- Height
- 835 mm
- Depth
- 300 mm
- With mounting plate
- No
- Number of locks
- 1
- Suitable for wall mounting
- Yes
- Pre-stamping
- No
- EMC-version
- No
- With glazed door
- No
- Couplable
- No
- Material quality
- GRP (Glass fibre reinforced plastic)
- Impact strength
- IK08
- Suitable for metrical mounting
- Yes
- Mounting plate depth-adjustable
- No
- With ventilation door
- No
- With rear door
- No
- Suitable for wall built-in
- No
- With cover
- No
- With door
- Yes
- Pitched roof
- No
- Pole fastening
- No
- Transparent cover
- No
- Suitable for outdoor installation
- Yes
- Max. permitted load of the enclosure according to IEC 62208
- 1334.16 N
- Max. permitted load of the door(s) according to IEC 62208
- 78.48 N
- Floor standing wall model
- No
- Freestanding
- No
- Corner model
- No
- Intermediate mounting
- No
- Country of origin
- Belgium
