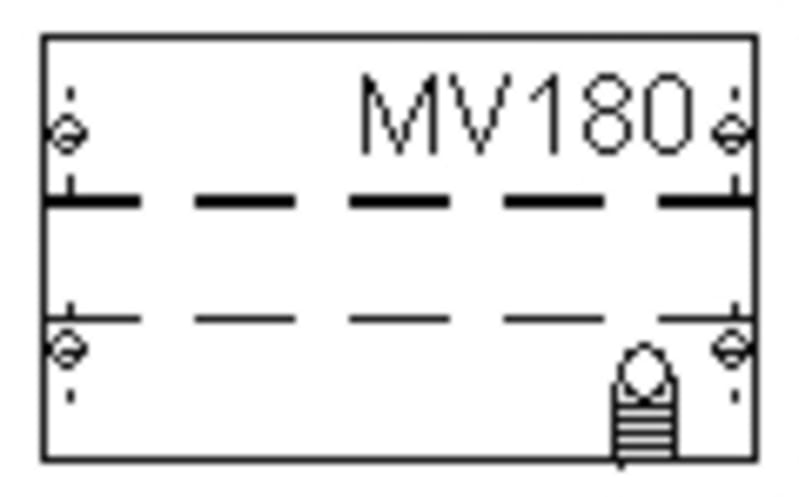

MBV182 module with plastsl.
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CPX041817R9999 — Interior fitting module, CombiLine, Flatpack (unmounted), for Cable connection module, Grid unit 1 GU = 150 mm, panel width 1 = 250 mm, 12 Space units, Fixed mounting, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usable as of the cabinet depth of 225 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 2CPX041817R9999
- EAN / GTIN
- 4011617418177
- Sales unit
- pcs
- Number of Panel Heights
- 1
- Enclosure Mounting Frame
- WR or EDF
- Enclosure Type
- Interior fitting module
- Enclosure Type of Height
- 0000
- DIN Place Units
- 12
- Meter Boards
- 0
- Module Function
- Cable connection module
- Rated Operational Voltage
- Maximum 400 V
- Rated Insulation Voltage (U i )
- 690 V
- Rated Impulse Withstand Voltage (U imp )
- 6 kV
- RAL Number
- RAL 7035 - Light Grey
- Color
- Light grey
- Number of Modules
- 12
- Product Net Width
- 250 mm
- Product Net Height
- 150 mm
- Product Net Depth / Length
- 225 mm
- Section Width
- 1
- Built-In Depth ( t 2 )
- 225 mm
- EPLAN Data
- 9AAF623208_EPLAN
- Declaration of Conformity - CE
- 2CPC100019X0201
- Instructions and Manuals
- 2CPC112290M5601
- Mounting Type
- Fixed mounting
- ETIM 9
- EC001893 - Distributor assembly for device surface mounting
- eClass
- V11.0 : 27400608
- Object Classification Code
- U
- Standards
- DIN EN 61439-3; DIN EN 61439-2
- Width
- 250 mm
- Height
- 150 mm
- Depth
- 225 mm
- With mounting plate
- No
- With mounting rail
- Yes
- With cover
- Yes
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4011617418177
- SAP 1000120236
- Code 8618799
Product Documentation
