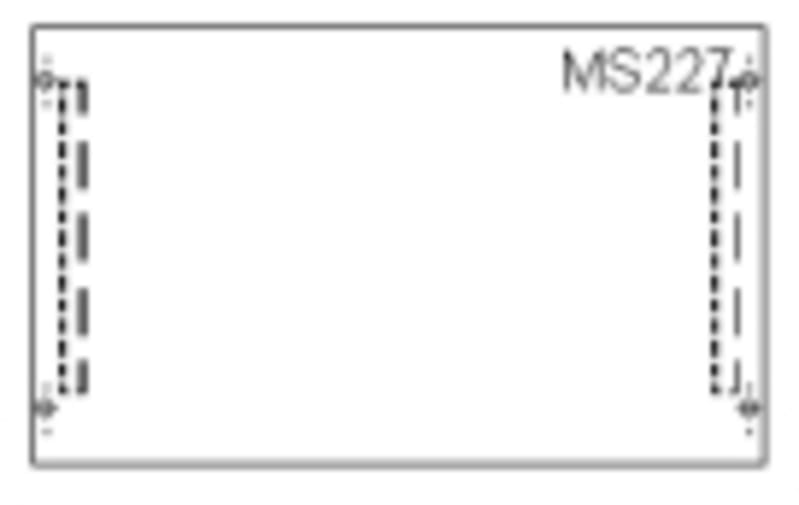

MBS227 Rail module (2CPX041741R9999)
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CPX041741R9999 — Interior fitting module, CombiLine, Flatpack (unmounted), for Busbar system horizontal, Grid unit 2 GU = 300 mm, panel width 2 = 500 mm, 48 Space units, unequipped for the installation of, for busbar system 3-pole, Busbar alignment: horizontal, with busbar holders ZX151, Busbar center distance: 60 mm, for maximum 3 Cu busbars, (busbars must be ordered separately), rated current maximum 630 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usable as of the cabinet depth of 215 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 2CPX041741R9999
- EAN / GTIN
- 4011617417415
- Sales unit
- pcs
- Rated Service Short-Circuit Breaking Capacity (I cs )
- 28 kA
- Busbar Position
- Center Central
- Number of Poles
- 3P
- Number of Panel Heights
- 2
- Enclosure Module Equipment
- Excludes Devices
- Enclosure Mounting Frame
- WR or EDF
- Enclosure Type
- Interior fitting module
- Enclosure Type of Height
- 000
- Accessories Available
- Yes
- DIN Place Units
- 48
- Meter Boards
- 0
- Module Function
- Busbar system horizontal
- Rated Operational Voltage
- Maximum 400 V
- Operational Voltage
- 400 V
- Rated Insulation Voltage (U i )
- 690 V
- Rated Impulse Withstand Voltage (U imp )
- 6 kV
- Rated Current (I n )
- 630 A
- Color
- Light grey
- Number of Modules
- 48
- Product Net Width
- 500 mm
- Product Net Height
- 300 mm
- Product Net Depth / Length
- 215 mm
- Section Width
- 2
- Built-In Depth ( t 2 )
- 215 mm
- EPLAN Data
- 9AAF623202_EPLAN
- Declaration of Conformity - CE
- 2CPC100019X0201
- Instructions and Manuals
- 2CPC112223M5601
- ETIM 9
- EC001896 - Distributor assembly busbars
- eClass
- V11.0 : 27400610
- Object Classification Code
- U
- Standards
- DIN EN 61439-3; DIN EN 61439-2
- Width
- 500 mm
- Height
- 300 mm
- Depth
- 215 mm
- With cover
- Yes
- Short-circuit breaking capacity (Icw)
- 28 kA
- Busbar distance
- 60 mm
- Rail height
- 30 mm
- Busbar thickness
- 5 mm
- Max. rated current
- 630 A
- Country of origin
- Slovenia
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4011617417415
- SAP 1000120175
