DIN-rail terminal MBK108
Pricing
Request a quote
We reply within 24 hours
Product Description

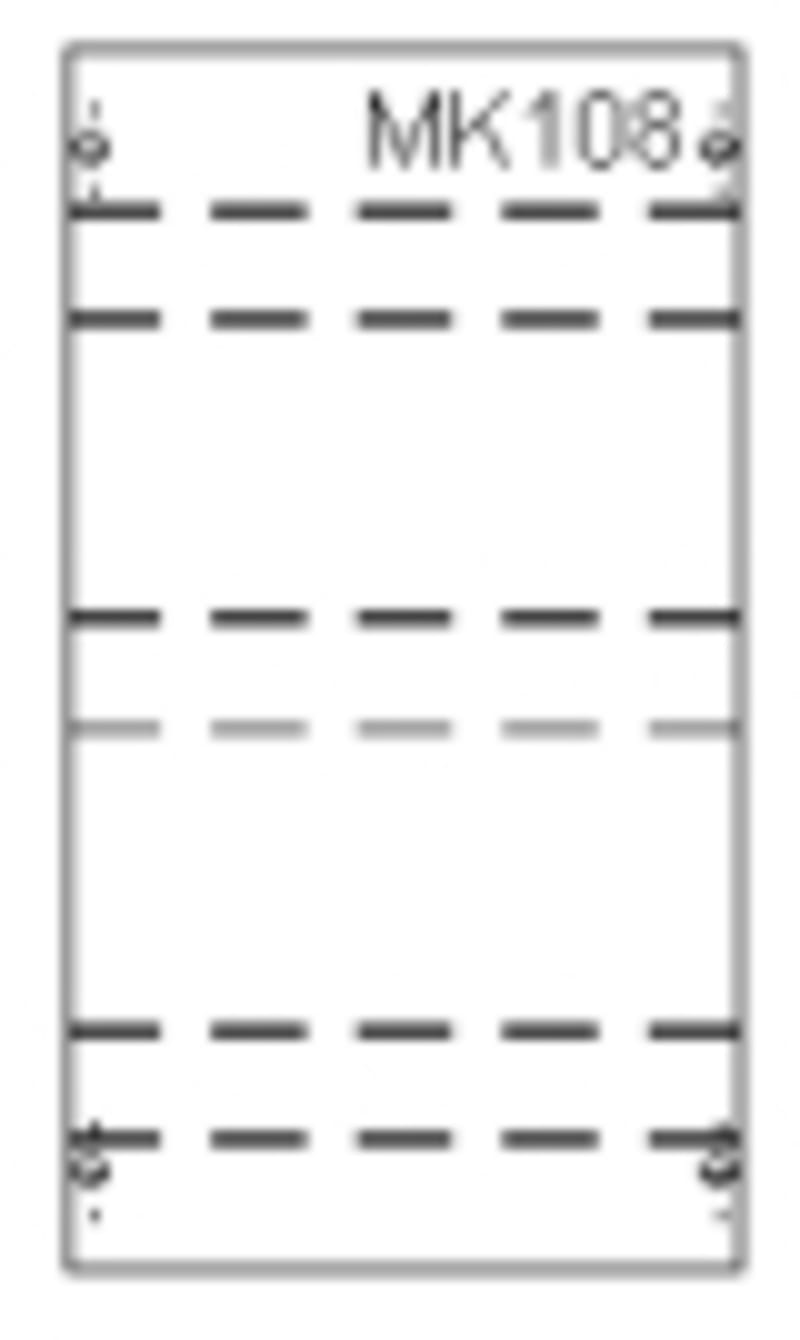

ABB MBK108 — Interior fitting module, CombiLine, Flatpack (unmounted), for DIN rail for terminals horizontal, Grid unit 3 GU = 450 mm, panel width 1 = 250 mm, 36 Space units, Row distance in mm: 150, assembled with DIN rail 35 x 15 mm with perforation for wire holders, Stepless adjustable via mounting bracket, usable depth of 68 mm up to 145 mm, usable width of 188 mm, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usable as of the cabinet depth of 200 mm.
Technical Specifications
- Manufacturer part number (MPN)
- MBK108
- EAN / GTIN
- 4011617416890
- Sales unit
- pcs
- Number of Panel Heights
- 3
- Number of Rows
- 3
- Enclosure Mounting Frame
- WR or EDF
- Enclosure Type
- Interior fitting module
- Enclosure Type of Height
- 00
- DIN Place Units
- 36
- Meter Boards
- 0
- Module Function
- DIN rail for terminals horizontal
- Rated Operational Voltage
- Maximum 400 V
- Operational Voltage
- 400 V
- Rated Insulation Voltage (U i )
- 690 V
- Rated Impulse Withstand Voltage (U imp )
- 6 kV
- Rated Current (I n )
- 850 A
- Color
- Light grey
- Number of Modules
- 36
- Protection Class
- Grounded or Insulated (Class III)
- Product Net Width
- 250 mm
- Product Net Height
- 450 mm
- Product Net Depth / Length
- 200 mm
- Section Width
- 1
- Built-In Depth ( t 2 )
- 200 mm
- EPLAN Data
- 9AAF623201_EPLAN
- Declaration of Conformity - CE
- 2CPC100019X0201
- Instructions and Manuals
- 2CPC112206M5601
- Mounting Type
- Stepless adjustable via mounting bracket
- ETIM 9
- EC001894 - Distributor assembly terminal blocks
- eClass
- V11.0 : 27400609
- Object Classification Code
- U
- Standards
- DIN EN 61439-3; DIN EN 61439-2
- Width
- 250 mm
- Height
- 450 mm
- Depth
- 200 mm
- Max. rated current
- 850 A
- With N-rail
- No
- With PE-rail
- No
- Country of origin
- Slovenia
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4011617416890
- SAP 1000120131
- Code 81234623
