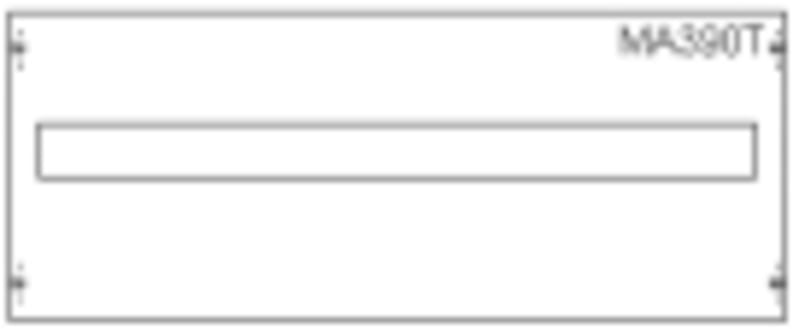

MBA390T for T1-XT3 (2CPX041645R9999)
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CPX041645R9999 — Interior fitting module, CombiLine, Flatpack (unmounted), for Main circuit breaker Tmax, Grid unit 2 GU = 300 mm, panel width 3 = 750 mm, 72 Space units,, usable width of 699 mm, unequipped for the installation of MCCB XT1, XT3, for busbar system 4-pole, rated current maximum 250 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usable as of the cabinet depth of 275 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 2CPX041645R9999
- EAN / GTIN
- 4011617416456
- HS code
- 8536.90
- Sales unit
- pcs
- Rated Operational Current (I e )
- 250 A
- Number of Poles
- 4P
- Number of Switches
- 0
- Number of Panel Heights
- 2
- Enclosure Module Equipment
- Excludes Devices
- Enclosure Mounting Frame
- WR
- Device
- XT1, XT3
- Enclosure Type
- Interior fitting module
- Enclosure Type of Height
- 000
- DIN Place Units
- 72
- Meter Boards
- 0
- Module Function
- Main circuit breaker Tmax
- Rated Operational Voltage
- Maximum 400 V
- Operational Voltage
- 400 V
- Rated Insulation Voltage (U i )
- 690 V
- Rated Impulse Withstand Voltage (U imp )
- 6 kV
- Rated Current (I n )
- 250 A
- Color
- Light grey
- Number of Modules
- 72
- Product Net Width
- 750 mm
- Product Net Height
- 300 mm
- Product Net Depth / Length
- 275 mm
- Section Width
- 3
- Built-In Depth ( t 2 )
- 275 mm
- EPLAN Data
- 9AAF623206_EPLAN
- Declaration of Conformity - CE
- 2CPC100019X0201
- Instructions and Manuals
- 2CPC112309M5601
- ETIM 9
- EC001897 - Distributor assembly switch
- eClass
- V11.0 : 27400611
- Object Classification Code
- U
- Standards
- DIN EN 61439-3; DIN EN 61439-2
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011617416456
- SAP 1000120090
- Code 81234610
Product Documentation
More from ABB
ABB
Floor-Standing Cabinet TW312S 1850X800X350MM IP55
2CPX010198R9999
ABB
ABB SACE Tmax XT1S 160 Moulded-Case Circuit Breaker — TMF 20-450, In=20 A, 4-Pole
1SDA080846R1
ABB
ABB S403-B25 Miniature Circuit Breaker — 3P, Type B, 25 A, 10 kA 2CCS573103R8255
ABB
Plinth TZW210 1000X550X350MM
2CPX010664R9999
ABB
PB 100mm 6 Pcs XT6 4P KIT PA.DI.PH.HI
1SDA105011R1
ABB
ABB GMP3B Blank Metal BASE Plate-SIZE 3;BLANK Metal BASE Plate-SIZE 3
ABB
AF12-30-01-11 60VAC 20-60VDC
AF12-30-01-11 24-60V50/60HZ 20-60VDC
ABB

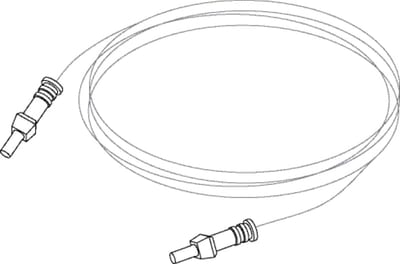

Optisk kab. TVOC-1TO2-OP10 10M
