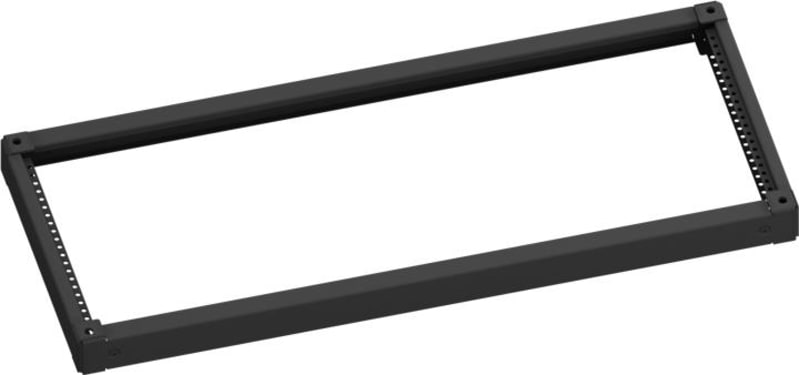

Plinth TZL305 50X800X275MM
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CPX010585R9999 — Plinth, series TwinLine, suitable for series: TwinLine, partly assembled, for the internal use, Powder-coated, in RAL 9005, dimensions in mm (H x W x D): 50 x 800 x 253.5, panel width 3.
Technical Specifications
- Manufacturer part number (MPN)
- 2CPX010585R9999
- EAN / GTIN
- 4011617105855
- Sales unit
- pcs
- Dimensions
- 50×800×275 mm
- Maximum Load Capacity
- 238.5 kg
- Model Number
- Base complete
- Enclosure Type
- Plinth
- Accessories Available
- Yes
- Accessory Group
- Base
- Surface Finishing
- Powder-coated
- Material
- Steel
- RAL Number
- RAL 9005 - Jet Black
- Color
- Black
- Product Net Width
- 800 mm
- Product Net Height
- 50 mm
- Product Net Depth / Length
- 253.5 mm
- Section Width
- 3
- Dimension Diagram
- 2CPC000026D0201
- EPLAN Data
- 9AAC184273_EPLAN
- Declaration of Conformity - CE
- 2CPC100021X0201
- Instructions and Manuals
- 2CPC119667M5601
- ETIM 9
- EC000721 - Base/base element (enclosure/cabinet)
- eClass
- V11.0 : 27182003
- Object Classification Code
- U
- Colour
- Black
- Width
- 800 mm
- Model
- Base complete
- Height
- 50 mm
- Depth
- 253.5 mm
- Max. load capacity
- 238.5 kg
- Suitable for aeration/de-aeration
- No
- Suitable for enclosure building width
- 800 mm
- Suitable for enclosure building depth
- 275 mm
- Suitable for outdoor set-up
- No
- Suitable for cable patch
- No
- Suitable for outdoor installation
- No
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4011617105855
- SAP 1200639066
- Code 83056830
Product Documentation
