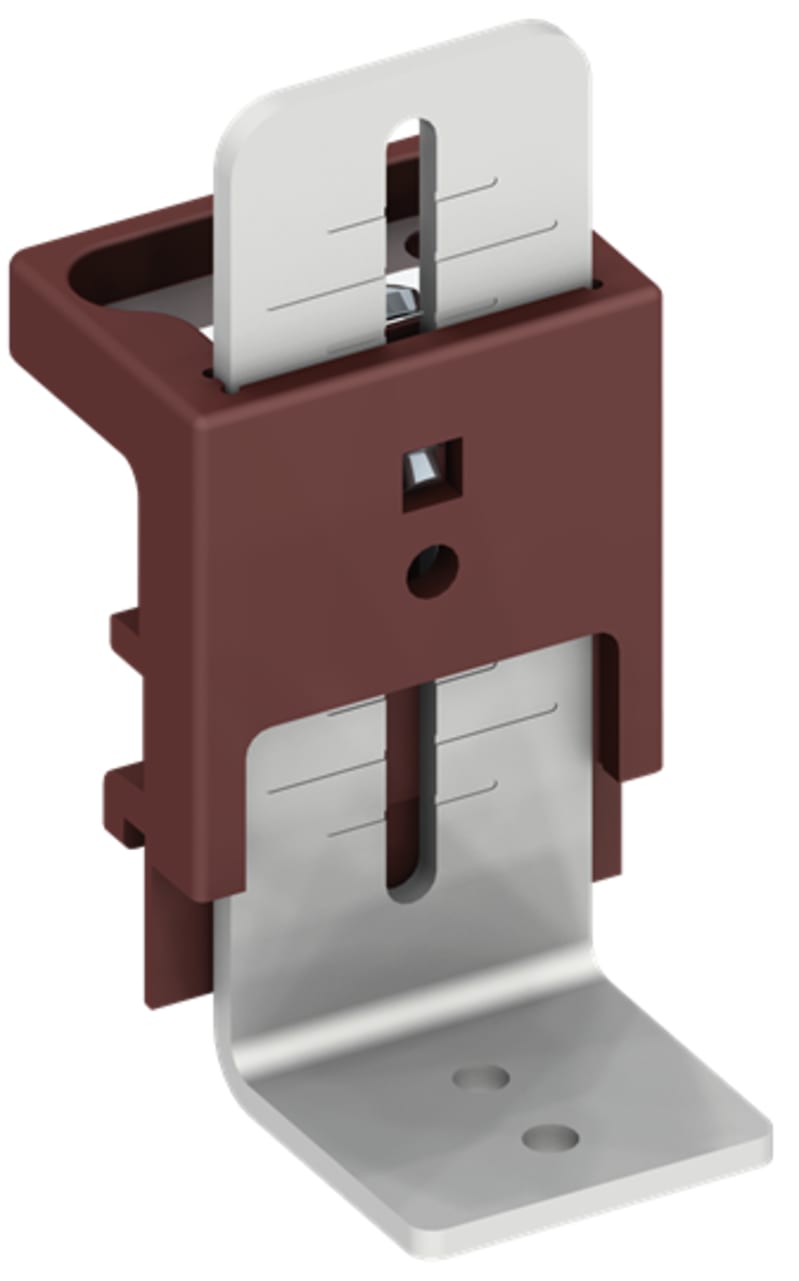

Depth Bracket ZW39P100, Adjustable 20-70 mm
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CPX062715R9999 — Deep angle piece for terminal block modules, for a stepless mounting of 20—70 mm, installation depth between deep angle piece and cover — 83—130 mm. The deep angle pieces can be used for protection-insulated and earthed assembly on EDF and WR profiles.
Technical Specifications
- Manufacturer part number (MPN)
- 2CPX062715R9999
- EAN / GTIN
- 4011617627159
- Sales unit
- pcs
- Model Number
- Fastening parts/-set
- Accessory Type
- Fastening parts/-set
- Enclosure Type
- Interior fitting system
- Material
- Steel
- Product Net Width
- 81 mm
- Product Net Height
- 55 mm
- Product Net Depth / Length
- 35 mm
- Declaration of Conformity - CE
- 2CPC100019X0201
- Instructions and Manuals
- 2CPC112095M5601
- ETIM 9
- EC002625 - Mounting accessories (enclosure/cabinet)
- eClass
- V11.0 : 27182807
- Object Classification Code
- U
- Spare part
- No
- Accessory
- Yes
- Type of accessory/spare part
- Fastening parts/-set
- Width
- 81 mm
- Height
- 55 mm
- Depth
- 35 mm
- Country of origin
- China
Standards & Compliance
- HS Code
- 8708.29
Cross References
- EAN 4011617627159
- SAP 1200794283
- Code 84007201
Product Documentation
