Product Description

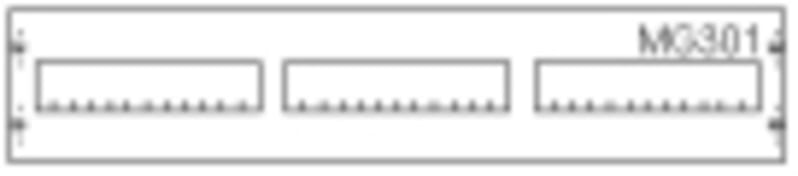

ABB 2CPX041652R9999 — Interior fitting module, CombiLine, Flatpack (unmounted), for DIN rail mounting devices, Grid unit 1 GU = 150 mm, panel width 3 = 750 mm, 36 Space units, Row distance in mm: 125 / 150, assembled with DIN rail 35 x 15 mm with perforation for wire holders, DIN rail 3 panel wide and more are with additional stabilization profile, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usable as of the cabinet depth of 120 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 2CPX041652R9999
- EAN / GTIN
- 4011617416524
- Sales unit
- pcs
- Number of DIN Rails for Mounting
- 1
- Number of Modular Spacings per DIN Rail
- 36
- Number of Panel Heights
- 1
- Number of Rows
- 1
- Enclosure Mounting Frame
- WR or EDF
- Enclosure Type
- Interior fitting module
- Enclosure Type of Height
- 0000
- DIN Place Units
- 36
- Meter Boards
- 0
- Module Function
- DIN rail mounting devices
- Rated Operational Voltage
- Maximum 400 V
- Operational Voltage
- 400 V
- Rated Insulation Voltage (U i )
- 690 V
- Rated Impulse Withstand Voltage (U imp )
- 6 kV
- Color
- Light grey
- Number of Modules
- 36
- Product Net Width
- 750 mm
- Product Net Height
- 150 mm
- Product Net Depth / Length
- 120 mm
- Section Width
- 3
- Built-In Depth ( t 2 )
- 120 mm
- EPLAN Data
- 9AAF623198_EPLAN
- Declaration of Conformity - CE
- 2CPC100019X0201
- Instructions and Manuals
- 2CPC112193M5601
- ETIM 9
- EC002575 - Distributor assembly for serial built-in device
- eClass
- V11.0 : 27400620
- Object Classification Code
- U
- Standards
- DIN EN 61439-3; DIN EN 61439-2; DIN 43880
- Width
- 750 mm
- Height
- 150 mm
- Depth
- 120 mm
- Number of DIN-rails
- 1
- Country of origin
- Slovenia
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4011617416524
- SAP 1000120097
- Code 81106146
Product Documentation
More from ABB
ABB
ABB VFI online double conversion,400V,45000W,RS232,USB,COM slot,includes 3X46X8AH batteries mounted linked and tested 4NWP103584C5010
ABB

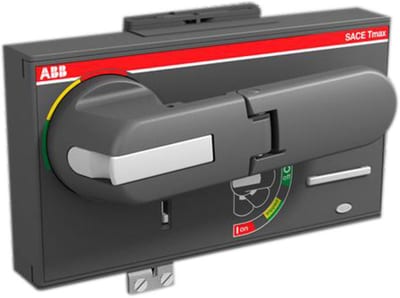

RHD XT7 F/W STAND. Direct + 2 PLL
1SDA104839R1
ABB
Switch FOR DIN-RAIL E213-16-001
ABB

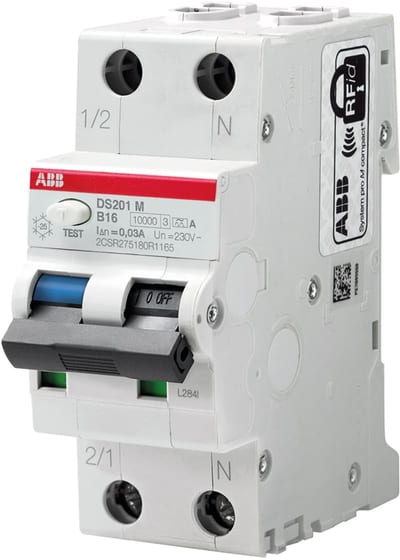

Residual Current Circuit Breaker WITH Overcurrent DS201 M B16 A10MA
2CSR275180R0165
ABB
ABB SACE Tmax XT3N 250 Moulded-Case Circuit Breaker — TMD R200, In=200 A, 4-Pole
1SDA068069R1
ABB

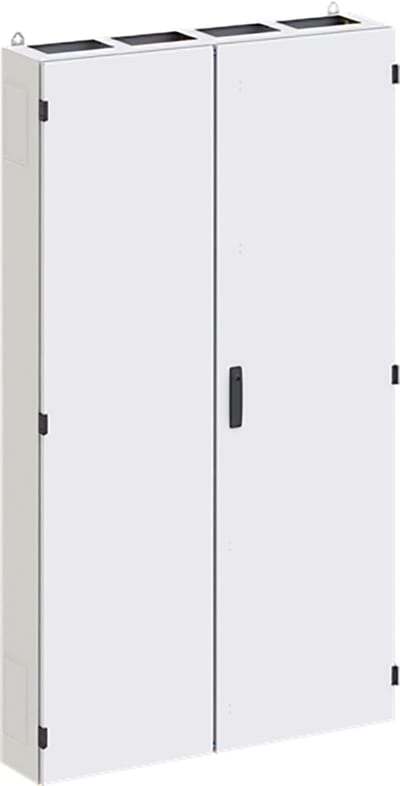

Floor-Standing Cabinet TW412S 1850X1050X350MM IP55
2CPX010199R9999
ABB

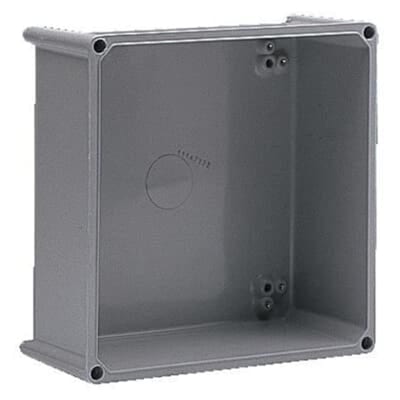

ABB APO iso-distributors. AU51 bottom part 480X300X130 closed APO RAL7035 closed on all sides 4TBO856004C0100
ABB

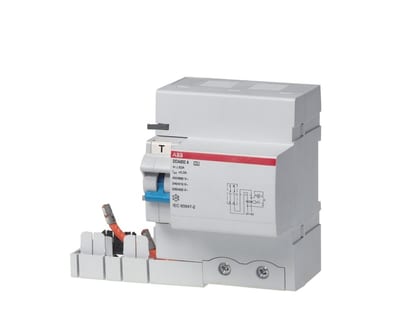

ABB DDA802 RCD Block — 2-Pole, Type A, 100 A, 1 A, Selective, for S800 MCB
