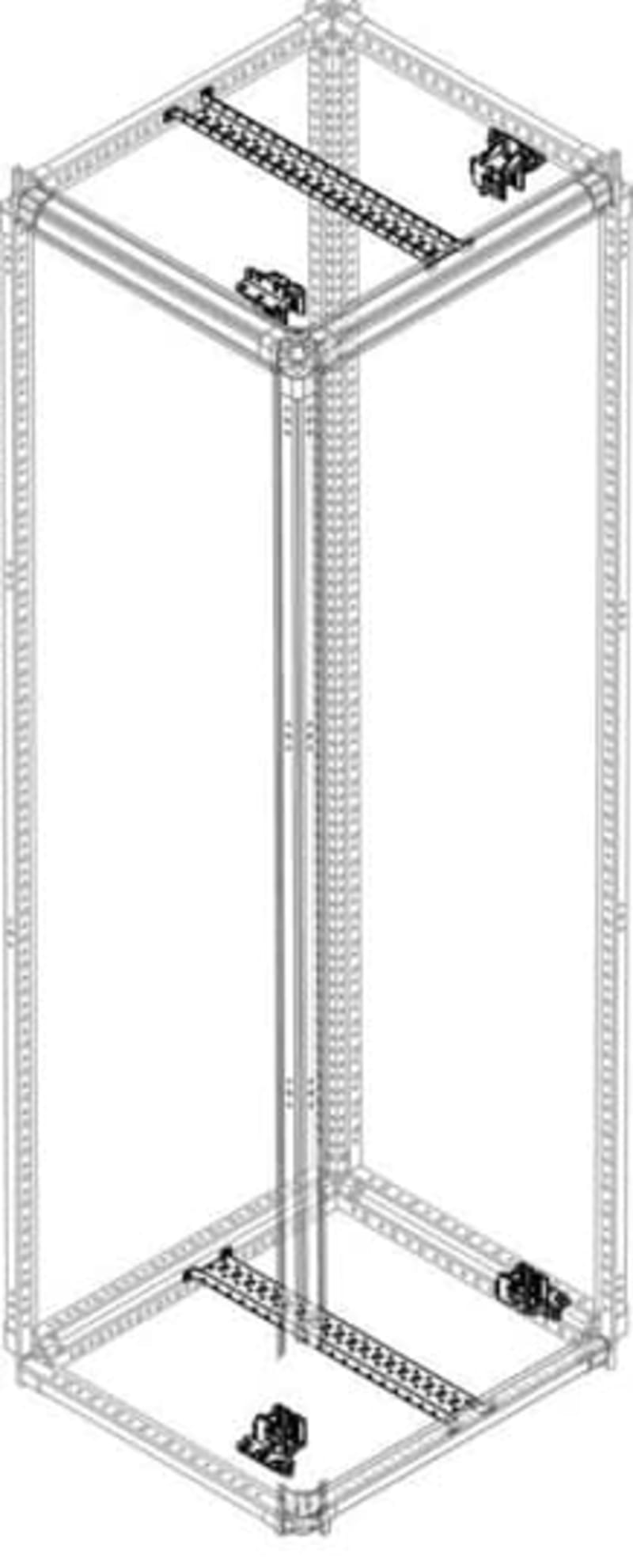

Mounting Bracket RZ1P4 for WR Mounting Frame / Mounting Plate
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB RZ1P4 — WR mounting frame bracket, needed for installing a mounting plate, a WR mounting frame or modules on a WR mounting frame. When installing two mounting plates, WR mounting frames or two WR mounting frames with modules next to each other (RZT WR RZT cross beam must be additionally ordered), suitable for TriLine® row switching cabinets.
Technical Specifications
- Manufacturer part number (MPN)
- RZ1P4
- EAN / GTIN
- 4011617459507
- Sales unit
- pcs
- Software Category
- A
- Sub-Function 3
- Mounting bracket
- Suitable For
- Modular boards - System pro E Power
- Enclosure Type
- Enclosure accessories
- Product Type
- Holder
- Accessories Available
- No
- Accessory Group
- Expansion with mounting plate
- DIN Place Units
- 0
- Meter Boards
- 0
- Remarks
- ETIM
- Product Net Width
- 200 mm
- Product Net Height
- 700 mm
- Product Net Depth / Length
- 100 mm
- Declaration of Conformity - CE
- 2CPC100023X0201
- Instructions and Manuals
- 2CPC104793M5601
- ETIM 9
- EC002625 - Mounting accessories (enclosure/cabinet)
- eClass
- V11.1 : 27182807
- Object Classification Code
- U
- Spare part
- No
- Accessory
- Yes
- Width
- 200 mm
- Height
- 700 mm
- Depth
- 100 mm
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4011617459507
- SAP 1200640455
- Code 83056176
Product Documentation
More from ABB
ABB
ABB SACE Tmax XT7H 800 Moulded-Case Circuit Breaker — Ekip Touch Meas.LSI IN800, In=800 A, 3-Pole
1SDA100910R1
ABB
ABB 1SDA066958R1 KIT Flexible BARS 4PCS XT1
ABB
ABB SACE Tmax XT4H 160 Moulded-Case Circuit Breaker — Ekip LS/In, In=160 A, 3-Pole
1SDA068514R1
ABB
Wallsk. GEMINI transp.dr ST.4
1SL0214A00
ABB
ABB SACE Tmax XT4L 160 Moulded-Case Circuit Breaker — TMA 80-800, In=80 A, 3-Pole
1SDA068372R1
ABB
ABB S203M-C1 Miniature Circuit Breaker — 3P, Type C, 1 A, 10 kA 2CDS273061R0014
ABB

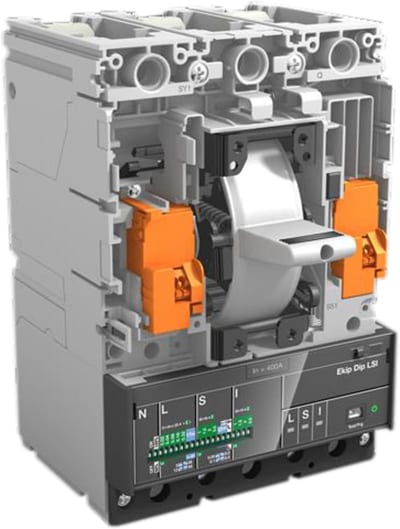

YU-C XT5-XT6 F/P 480...525 Vac
