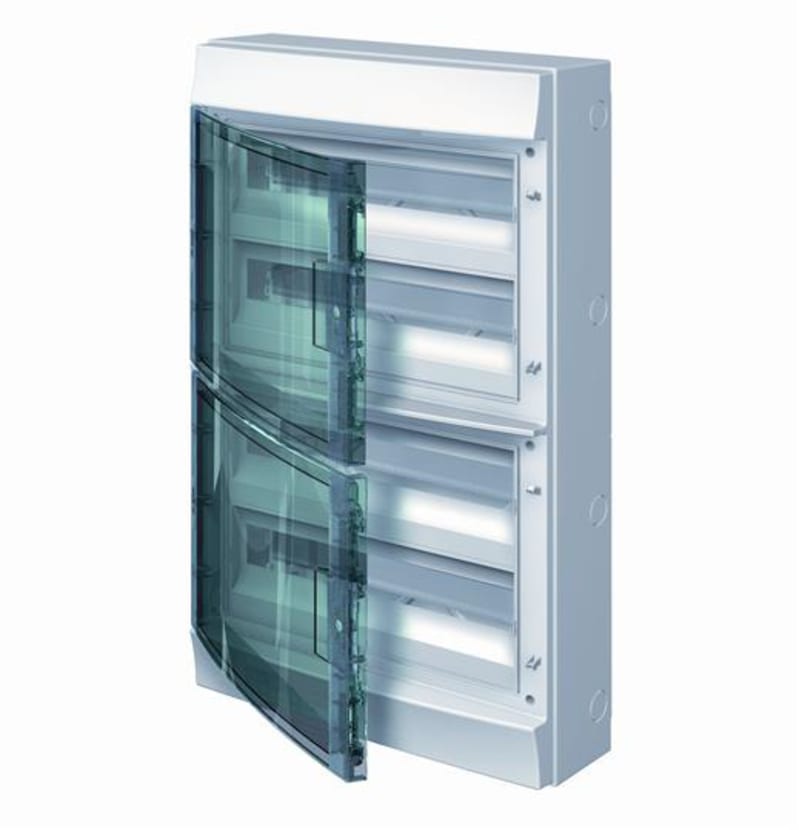

ABB Mistral 65 Enclosure with Transparent Door, 72 Modules, IP65
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB Mistral 65 surface-mounted group panel with transparent door, 72 modules across 4 rows, IP65 protection. Halogen-free plastic housing, RAL 7035 grey, GWT 650 degrees C, external dimensions 430 x 735 x 155 mm. Lockable, DIN-rail equipped, expandable.
Technical Specifications
- Manufacturer part number (MPN)
- Group panel 72M m/Blue-Grøn klar IP65
- EAN / GTIN
- 8000126097948
- Sales unit
- pcs
- Modular width
- 72 modules
- IP rating
- IP65
- Mounting method
- Surface mounted
- Colour
- Grey
- Width
- 430 mm
- UV resistant
- No
- Height
- 735 mm
- Depth
- 155 mm
- RAL-number
- 7035
- With mounting plate
- No
- Built-in depth
- 98 mm
- Number of rows
- 4
- Built-in height
- 662 mm
- Type of covering
- Door
- Built-in width
- 363 mm
- EMC-version
- No
- Extension possible
- Yes
- Inner depth
- 84 mm
- DIN-rail
- Yes
- Sealable
- No
- Housing material
- Plastic
- With N-disconnect slide
- No
- Width in number of modular spacings
- 18
- Type of door
- Single
- Degree of protection (IP)
- IP65
- Transparent cover/door
- No
- With lock
- Yes
- Cover model
- Closed
- Earthing terminal block
- No
- Neutral terminal block
- No
- Signal passing door
- No
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 8000126097948
- SAP 1000599734
- Code 8716360
Product Documentation
More from ABB
ABB
ABB EBM case with batteries 3X4X9 Ah 4NWP100166R0001
ABB

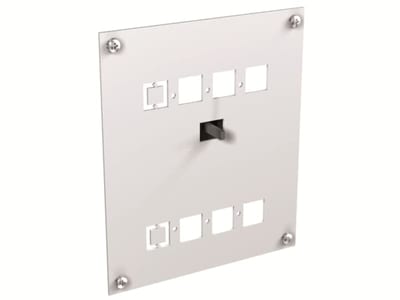

ABB 1SDA105122R1 Plate FOR Mechanical Interlock FOR Fixed Circuit-Breaker XT5
