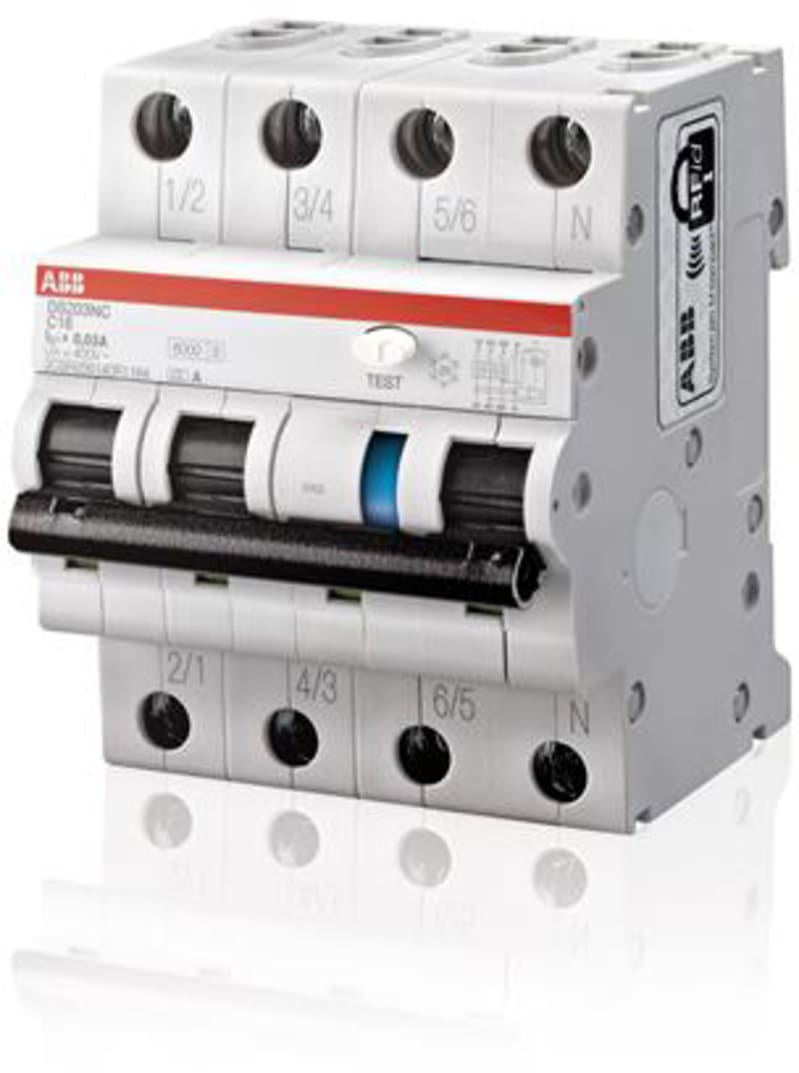

JF.AUT.DS203NC-C32/APR 0.03 (DS203NC C32 APR30)

ABB DS203NC C32 APR30 — DS203NC is a 3P+N residual current circuit breaker with overcurrent protection (RCBO) in four modules for the protection against short-circuit currents, overload, earth fault currents, indirect contacts, additional protection against direct contacts.

Manufacturer part number (MPN)

DS203NC C32 APR30

EAN / GTIN

8012542261124

Sales unit

pcs

Carbon Footprint (Full Lifecycle)

13.076764 kg CO₂ eq

Recyclability Rate of the Product acc. to EN45555

Design for Closing Resource Loops - Standard EN45555 - 83.26 %

Sustainable Material Content in Packaging (wt. %)

Recycled Paper - 00 %; Recycled Cardboard - 92 %; Recycled Paper - 00 %

Extended Product Lifetime

Product Durability

End Of Life Disassembling Instructions

9AKK108469A7475

Environmental Product Declaration - EPD

9AKK108469A9830

Type of Residual Current

Type A APR

Rated Ultimate Short-Circuit Breaking Capacity (I cu )

10 kA

Maximum Surge Current

3 kA

Power Supply Connection

Arbitrary

Energy Limiting Class

3

Electrical Endurance

10000 cycle

Mechanical Endurance

20000 cycle

Number of Protected Poles

3

Number of Poles

3P+N

Operating Characteristic

10ms Delay (High Immunity)

Position of Neutral Terminals

Right

Earthing Switch Type

Short-Time Delayed

Options Provided

None

Accessories Available

Yes

Connecting Capacity

Busbar 10 mm²; Rigid 25 ... 25 mm²; Flexible 25 ... 25 mm²

Rated Cross-Section

1 - Solid-Core 25 … 25 mm²; 4 - Multi-Wired 1 … 25 mm²

Tripping Characteristic

C

Rated Operational Voltage

acc. to IEC 60898-1 415 V

Rated Insulation Voltage (U i )

acc. to IEC/EN 60664-1 500 V

Rated Impulse Withstand Voltage (U imp )

4 kV

Input Voltage Type

AC

Rated Current (I n )

32 A

Rated Residual Current

30 mA

Rated Short-Circuit Capacity

6 kA

Rated Conditional Short-Circuit Current (I nc )

10 kA

Rated Frequency (f)

50/60 Hz

Power Loss

Total 15.1 W

Overvoltage Category

III

Ambient Air Temperature

Operation -25 … 55 °C

Degree of Protection

IP2X

Pollution Degree

2

Environmental Information

refer to RoHS information

Width in Number of Modular Spacings

4

Product Net Width

71 mm

Product Net Height

85 mm

Product Net Depth / Length

69 mm

Built-In Depth ( t 2 )

69 mm

EPLAN Data

9AAC181438_EPLAN

CCC Certificate

2021980307001650

Declaration of Conformity - CE

9AKK106713A5597

Instructions and Manuals

9AKK106713A8790

Mounting Type

DIN-Rail

ETIM 9

EC000905 - Earth leakage circuit breaker

UNSPSC

39121601

eClass

V11.0 : 27142207

Object Classification Code

F

Standards

IEC 61009-1; IEC 61009-2-1; EN 61009-1; EN 61009-2-1

Rated voltage

415 V

Rated insulation voltage Ui

500 V

Rated impulse withstand voltage Uimp

4 kV

Rated fault current

0.03 A

Rated short-circuit breaking capacity according to EN 60898

6 kA

Current limiting class

3

Rated short-circuit breaking capacity according to EN 61009

6 kA

Surge current capacity

3 kA

Voltage type

AC

Frequency

50/60 Hz

Release characteristic

C

Concurrently switching neutral conductor

Yes

With interlocking device

Yes

Ambient temperature during operating

-25–55 °C

Anti-nuisance tripping version

Yes

Connectable conductor cross section solid-core

25 mm²

Connectable conductor cross section multi-wired

25 mm²

Flush-mounted installation

No

Mounting method

DIN rail

Country of origin

Italy

HS Code

8536.30

• EAN 8012542261124
• SAP 1000715657
• Code 8250676
