Main fuse Circuit Breaker S753DR-E80 SEL
Pricing
Request a quote
We reply within 24 hours
Product Description

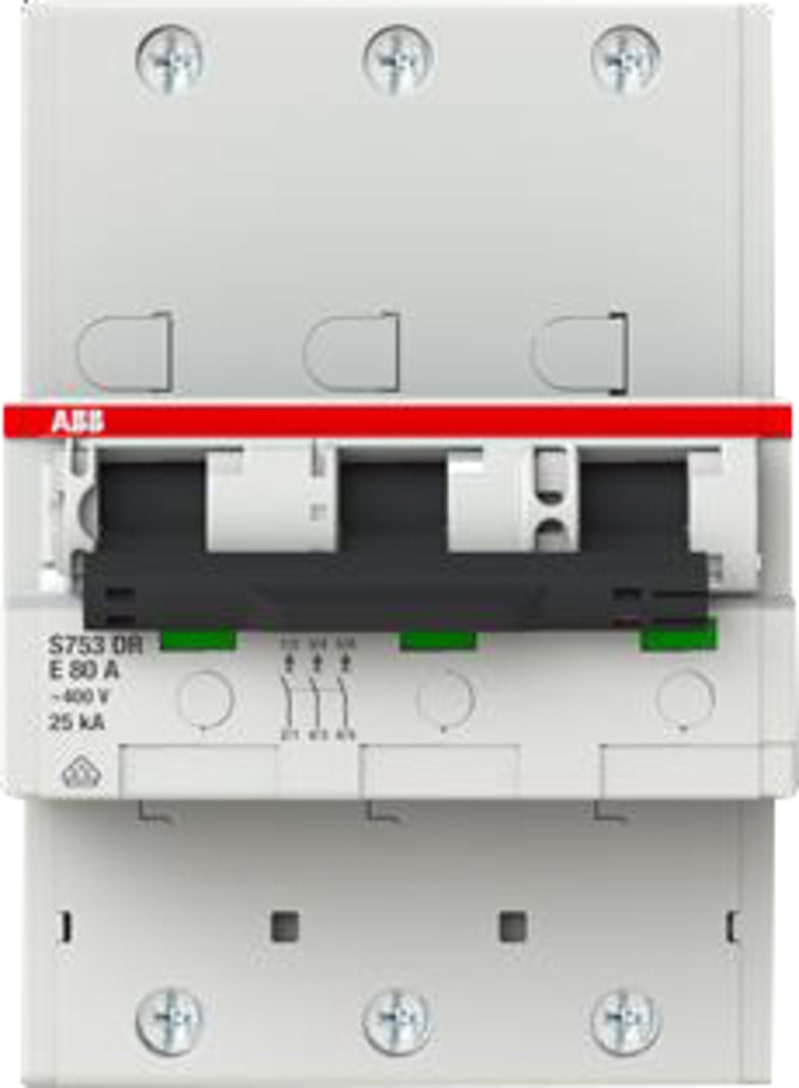

ABB 2CDH783010R0802 — Selective main circuit-breakers of the S 750 DR series are SMCBs based on DIN VDE 0641-21 with voltage-independent operating principle. This means that they do not rely on a control circuit to make or break contact (SHU) and are therefore particularly suitable for use in energy distribution systems with maximum availability requirements. They offer total selectivity to downstream MCBs and outstanding selectivity to upstream protective devices due to unique current limiting selectivity.
Technical Specifications
- Manufacturer part number (MPN)
- 2CDH783010R0802
- EAN / GTIN
- 4016779879644
- HS code
- 8536.90
- Sales unit
- pcs
- Recyclability Rate of the Product acc. to EN45555
- Design for Closing Resource Loops - Standard EN45555 - 45.9 %
- ABB Site Meeting Group Waste To Landfill Target
- No non-hazardous waste is sent to a landfill
- Extended Product Lifetime
- Product Durability
- End Of Life Disassembling Instructions
- 9AKK108469A4877
- Environmental Product Declaration - EPD
- 9AKK108468A5768
- Suitable for Isolation
- Yes
- Dielectric Test Voltage
- 50 / 60 Hz - 1 min 2 kV
- Rated Ultimate Short-Circuit Breaking Capacity (I cu )
- (400 V AC) 25 kA
- Rated Service Short-Circuit Breaking Capacity (I cs )
- (400 V AC) 12.5 kA
- Power Supply Connection
- Arbitrary
- Contact Position Indication
- Red ON / Green OFF
- Number of Poles
- 3P
- Tightening Torque
- 2.5 ... 3 N·m
- Screw Terminal Type
- Cable Clamp
- Actuator Marking
- I / O
- Recommended Screw Driver
- Cross Recess Pozidriv 2; Slotted 1 x 5.5
- Accessories Available
- Yes
- Connecting Capacity
- Flexible with Ferrule 2.5 ... 50 mm²; Flexible 2.5 ... 50 mm²; Rigid 2.5 ... 50 mm²; Stranded 2.5 ... 50 mm²
- Installation Size
- acc. to DIN 43880 3
- Terminal Type
- Screw Terminals
- Tripping Characteristic
- E (Selective)
- Rated Operational Voltage
- 400 V AC; acc. to IEC 60947-2 400 V AC
- Rated Insulation Voltage (U i )
- acc. to IEC/EN 60664-1 690 V
- Rated Impulse Withstand Voltage (U imp )
- 6 kV; at 2000 m 8 kV; at Sea Level 9.8 kV
- Input Voltage Type
- AC
- Rated Current (I n )
- 80 A
- Rated Short-Circuit Capacity
- (400 V AC) 25 kA
- Rated Frequency (f)
- 50 / 60 Hz
- Power Loss
- at Rated Operating Conditions per Pole 10.5 W
- Overvoltage Category
- IV
- I²t Characteristic
- 9AKK108466A4490
- Ambient Air Temperature
- Operation -25 ... +55 °C; Storage -40 ... +70 °C
- Degree of Protection
- IP20; Enclosure with Cover IP40
- Pollution Degree
- 3
- Environmental Conditions
- 28 cycles; with 55 °C / 90-96 %; and 25 °C / 95-100 %
- Resistance to Vibrations
- 20 Cycles with Load 0.8 In: 2g 5 ... 150 ... 5 Hz
- Resistance to Shock acc. to IEC 60068-2-27
- 30g 3 shocks 11 ms
- Product Net Width
- 89 mm
- Product Net Height
- 130 mm
- Product Net Depth / Length
- 96 mm
- Dimension Diagram
- 9AKK108466A4497
- Declaration of Conformity - CE
- 2CDK400633D2701
- Instructions and Manuals
- 2CDS707001P0004
- Mounting Type
- DIN-Rail
- Mounting on DIN Rail
- TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715; TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
- Mounting Position
- any
- ETIM 9
- EC001047 - Selective main line circuit breaker
- UNSPSC
- 39121614
- eClass
- V11.0 : 27141903
- Object Classification Code
- F
- Standards
- IEC/EN 60947-2
- Certification Agency
- EN; IEC
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4016779879644
- SAP 1200622794
- Code 83034033
Product Documentation
More from ABB
ABB
Cover frame RB110, B1/H10
2CPX045935R9999
ABB
ABB Cover, Design of the cover without slot, covers out of Plastic, 90 degree press and turn closure, RAL 7035, packaging unit 1 piece 2CPX070387R9999
ABB
ABB Cover, Design of the cover without slot, covers out of Plastic, 90 degree press and turn closure, RAL 7035, packaging unit 1 piece 2CPX070388R9999
ABB
Residual Current Circuit Breaker WITH Overcurrent DS201 M B10 A30MA
2CSR275180R1105
ABB
ABB BWS616TPN Enclosed Safety Switch 6-Pole 16A 7.5kW IP65
ABB
FUSE Holder E 92/125
2CSM277132R1801
ABB
FUSE Holder E 91/125S
2CSM289632R1801
ABB
Main fuse Circuit Breaker S754DR-K100 SEL
2CDH784010R0637
