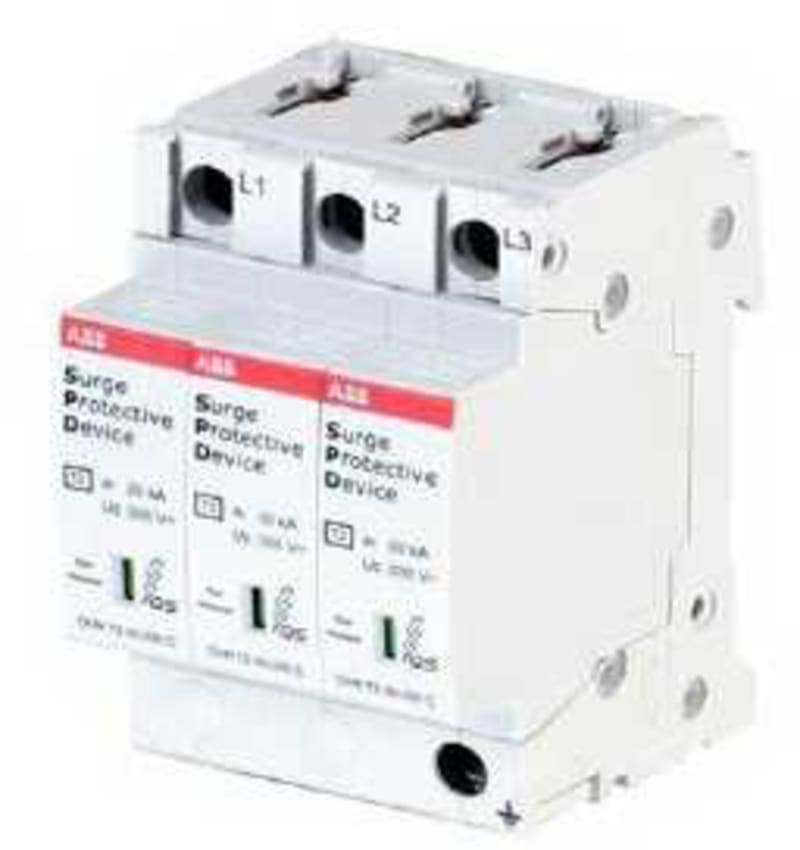

ABB 2CTB803873R3400 OVR T2-T3 3L 20-275 P QS Surge Protective Device

ABB 2CTB803873R3400 OVR T2-T3 3L 20-275 P QS Surge Protective Device is listed under Switchgear & Protection / Surge Protectors. HS code: 8535.40.

Manufacturer part number (MPN)

2CTB803873R3400 EAN / GTIN: 3660308519818 Sales unit: pcs EcoSolutions Profile: 9AKK108472A3406 Environmental Product Declaration - EPD: 9AKK108472A1710 Type of Low Voltage Distribution System: TN-C Suitable For: To protect the systems against the transient overvoltage (lightning) Nominal AC Voltage of the System (U o ): 230 / 400 V Maximum Continuous Operating Voltage (U c ): (L-PE) 275 V Temporary Overvoltage Test Value (U T ): 337 V Rated Service Short-Circuit Breaking Capacity (I cs ): 100 kA Discharge Current: Nominal (8 / 20 µs) 5 kA; I (max, 8 / 20 µs) 20 kA Impulse Current: I (imp, 10 / 350 µs, L-N) 2 kA Short Circuit Withstand Icc: 100 kA Arrester Class: II; III Number of Protected Poles: 3 Number of Poles: 3P Number of Conductors: 3 Transmission Standard: Optic Version: Plug-in Product Type: QS Options Provided: Residential or other where accurate protection is needed. Auxiliary Circuit Load: minimum -; Maximum - Preventive Maintenance Feature: No Status Indicator: Yes Fuse Size: 3 modular spacing Cross-Section ( A cross ): Maximum Conductor Solid-Stranded 25 mm²; Maximum Conductor Flexible 16 mm² Rated Voltage (U r ): 400 V AC Voltage Protection Level ( Up): 0.9 kV; (L-N) 0.9 kV Power Loss: Total 17 mW Degree of Protection: IP20 Maximum Operating Altitude Permissible: Without Derating 5000 Width in Number of Modular Spacings: 3 Product Net Width: 53.4 mm Product Net Height: 88 mm Product Net Depth / Length: 58 mm EPLAN Data: 9AAC183886_EPLAN CB Certificate: 2CTC432024G1701 CQC Certificate: 9AKK107680A1974 Declaration: 2CTC432056G1701 Declaration of Conformity - CE: 9AKK108466A4410 Instructions and Manuals: 2CTC432096M1701 Mounting Type: DIN-Rail ETIM 9: EC000941 - Surge protection device for power supply systems UNSPSC: 39121610 eClass: V11.0 : 27130805 Object Classification Code: 141ECC Standards: IEC 61643-11 / EN 61643-11 System configuration: TN-C System configuration DC: No System configuration IT: No System configuration TN: Yes System configuration TN-C: Yes System configuration TT: No System configuration other: No Nominal discharge surge current (8/20): 5 kA Max. discharge surge current (8/20): 5 kA Short-circuit-proof: No Nominal voltage AC: 400 V Max. continuous voltage AC: 275 V Max. continuous voltage DC: 350 V Voltage protection level L-N: 0.9 kV Voltage protection level N-PE: 1.4 kV Max. overcurrent protection device, series connection (fuse): 125 A Short-circuit breaking capacity (Isccr): 100 kA Integrated short-circuit protection: No Integrated short-circuit protection selective to fuse gG: 125 A Integrated backup fuse: No Leakage-current free: No Construction size: 3 modular spacing Max. conductor cross section solid (solid, stranded): 25 mm² Max. conductor cross section flexible (fine-strand): 16 mm² With remote signalling contact: No Signalling at the device: Optical Category type 2: Yes Country of origin: Bulgaria

HS Code

8535.40

• EAN 3660308519818
• SAP 1000702016
• Code 8317139
