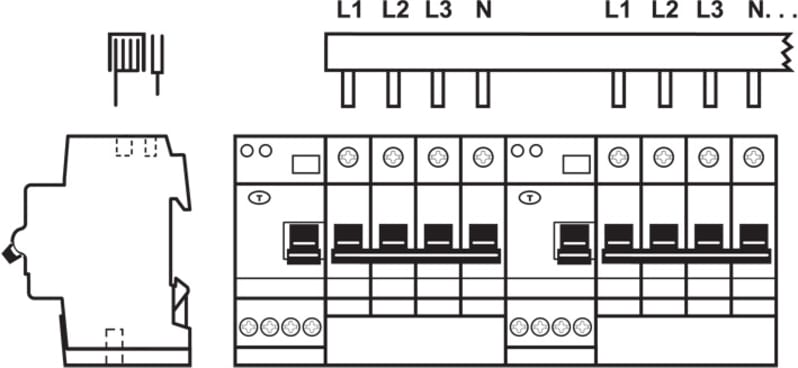

ABB 2CDL040204R1640 Busbar PS4/40/16-DDA204T
Pricing
Request a quote
We reply within 24 hours
Overview
ABB 2CDL040204R1640 Busbar PS4/40/16-DDA204T is listed under Electrical Components / Busbar Systems. Sales unit: pcs; Package quantity: 10 pcs; Sub-Function: top mounting; Suitable For: S200; F200; DDA200; Suitable for Product Class: DDA204; Pitch: 17.5.
Technical Specifications
- Manufacturer part number (MPN)
- 2CDL040204R1640
- EAN / GTIN
- 4016779652605
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Sub-Function
- top mounting
- Suitable For
- S200; F200; DDA200
- Suitable for Product Class
- DDA204
- Pitch
- 17.5
- Number of Poles
- 40P
- Number of Phases
- 4-phase
- Number of Mountable Devices
- 10
- Number of Terminals (N term )
- 40
- Accessory Type
- Busbar
- Connection Type
- Pin
- Options Provided
- DDA204T
- Rated Cross-Section
- 16 mm²
- Rated Operational Voltage
- 230 / 400 V AC; Maximum 690 V
- Rated Short-time Withstand Current Low Voltage (I cw )
- 25 kA
- Rated Uninterrupted Current (I u )
- 63 A
- Rated Frequency (f)
- 50 / 60 Hz; DC
- Overvoltage Category
- III
- RAL Number
- RAL 7035 - Light Grey
- Color
- grey
- Pollution Degree
- 2
- Width in Number of Modular Spacings
- 58
- Product Net Width
- 21.4 mm
- Product Net Height
- 29 mm
- Product Net Depth / Length
- 1015 mm
- Declaration of Conformity - CE
- 9AKK108469A0841
- Declaration of Conformity - UKCA
- 9AKK108469A0914
- Instructions and Manuals
- 2CSC400002D0208
- Mounting Position
- any
- ETIM 9
- EC000215 - Phase busbar
- UNSPSC
- 39121117
- eClass
- V11.0 : 27371306
- IDEA Granular Category Code (IGCC)
- 4378 >> Phase buss bar
- Object Classification Code
- W
- Standards
- IEC/EN 60947-1
- Colour
- Grey
- Insulated
- Yes
- Cross section
- 16 mm²
- Rated permanent current Iu
- 63 A
- Length
- 1015 mm
- Rated surge voltage
- 4 kV
- Type of electric connection
- Pin
- Rated short-time withstand current lcw
- 25 kA
- Suitable for devices with auxiliary switch
- No
- Suitable for devices with N-conductor
- Yes
- Suitable for number of devices
- 10
- Max. rated operation voltage Ue
- 690 V
- Module width
- 17.5 mm
- Country of origin
- Germany
