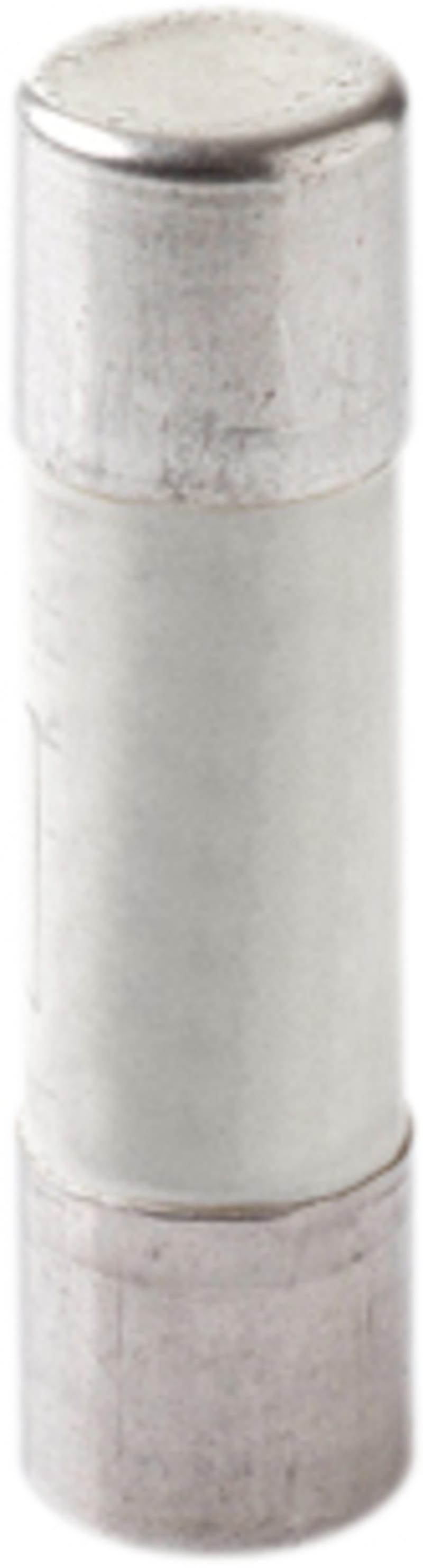

ABB 2CSM258693R1801 E 9F14 GG32 is a 14X51 mm cylindrical fuse for circuits protection
Pricing
Request a quote
We reply within 24 hours
Overview
ABB 2CSM258693R1801 E 9F14 GG32 is a 14X51 mm cylindrical fuse for circuits protection is listed under Electrical Components / Fuses. Sales unit: pcs; Package quantity: 10 pcs; Fuse Type: gG; Construction Material: Ceramic; Fuse Size: 14x51; Contact Material: copper silver plated (Cu/Ag).
Technical Specifications
- Manufacturer part number (MPN)
- 2CSM258693R1801
- EAN / GTIN
- 8012542586937
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Fuse Type
- gG
- Release Type
- gG: Used in general protection of cables and lines in installation and industrial applications
- Construction Material
- Ceramic
- Fuse Size
- 14x51
- Contact Material
- copper silver plated (Cu/Ag)
- Rated Voltage (U r )
- 500 V
- Rated Current (I n )
- 32 A
- Maximum Breaking Capacity
- 120 kA
- Power Loss
- Total 3.6 W; at Rated Operating Conditions per Pole 3.6 W
- I²t Characteristic
- 9AKK108467A0128
- Environmental Information
- See RoHS Information
- Product Net Width
- 1 mm
- Product Net Height
- 51 mm
- Product Net Depth / Length
- 1 mm
- Dimension Diagram
- 9AKK108466A8533
- Cut-off Current Characteristic
- 9AKK108466A9072
- Declaration of Conformity - CE
- 9AKK106713A5625
- ETIM 9
- EC002704 - Cylindrical fuse
- UNSPSC
- 39121606
- eClass
- V11.0 : 27142002
- Object Classification Code
- F
- Standards
- IEC 60269-2
- Size
- 14x51 mm
- Voltage type
- AC
- Utilization category according to IEC 60269
- gL/gG (cable protection/equipment protection)
- Nominal current
- 32 A
- With striker
- No
- Breaking capacity
- 120 kA
- Power loss at rated current
- 3.6 W
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.10
Cross References
- EAN 8012542586937
- SAP 1200640865
- Code 83054202
Product Documentation
More from ABB
ABB
ABB SACE Tmax XT1N 160 Moulded-Case Circuit Breaker — TMD 100-1000, In=100 A, 4-Pole
XT1N 160 TMD 100-1000 4p F F
ABB
ABB DDA804 RCD Block — 4-Pole, Type A, 63 A, 1 A, Selective, for S800 MCB
2CSB804201R5630
ABB

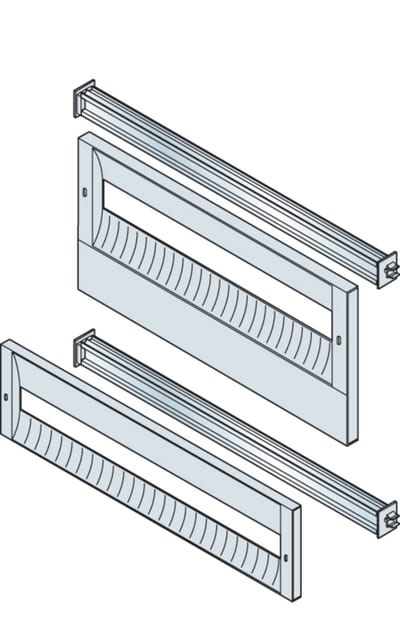

ABB 1SL0313A00 Panel WITH Holes H225 AND DIN-SIZE 2-3;PANEL WITH Holes H225 AND DIN-SIZE 2-3
ABB

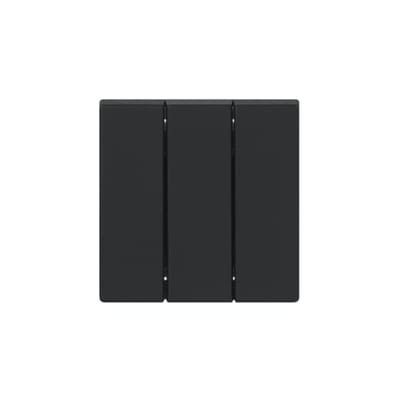

ABB Impressivo Switch Rocker 1+1+1 Black Matte
1783-885
ABB

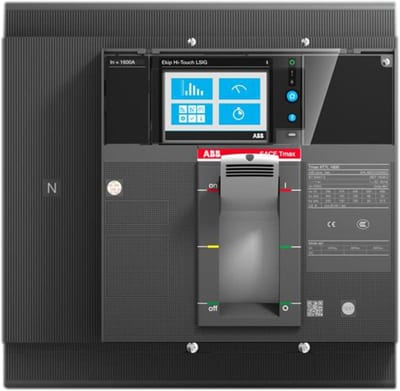

ABB SACE Tmax XT7L 1250 Moulded-Case Circuit Breaker — Ekip Touch Meas.LSI, In=1250 A, 4-Pole
1SDA101248R1
ABB

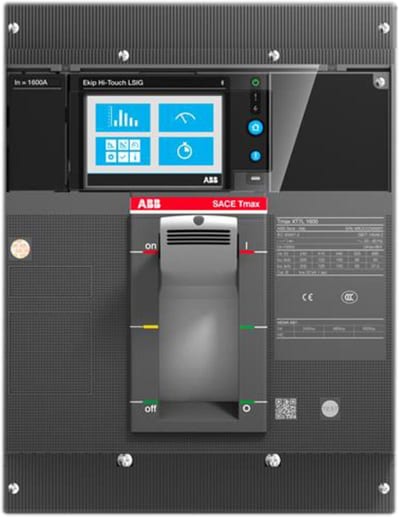

ABB SACE Tmax XT7H 1600 Moulded-Case Circuit Breaker — Ekip Touch Meas.LSI, In=1600 A, 3-Pole 1SDA100913R1
