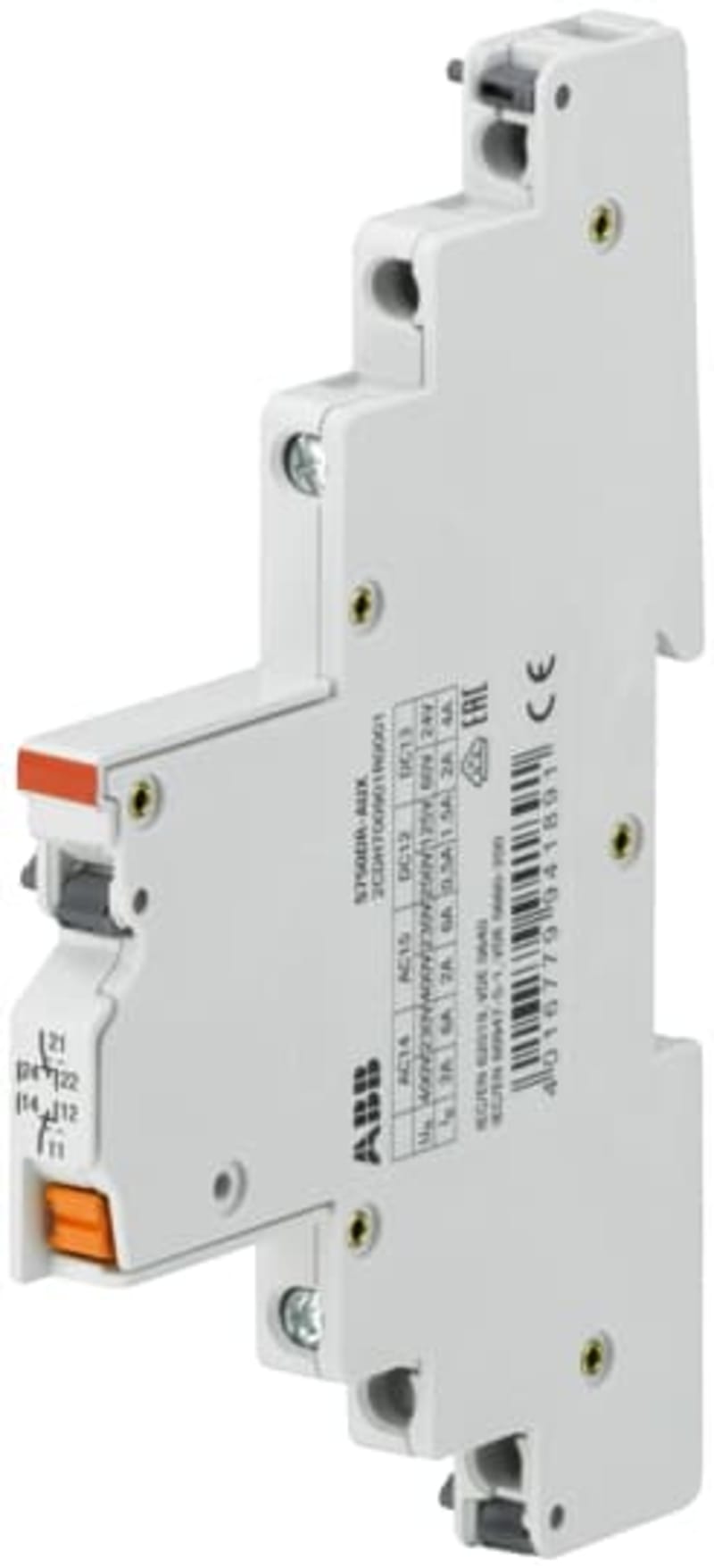

Auxiliary contact S750DR-AUX
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CDH700901R0001 — Two change-over contacts indicate the contact position of the S750 DR pole(s) independently and potential-free. A test button can be used to verify the correct indication of the contact position without switching the pole(s). The change-over contacts fulfill the requirements of electrical separation of the main circuit connected to the pole(s). The S750DR-AUX can be mounted on S750 DR 1-4 pole-devices without tools.
Technical Specifications
- Manufacturer part number (MPN)
- 2CDH700901R0001
- EAN / GTIN
- 4016779941891
- Sales unit
- pcs
- Environmental Product Declaration - EPD
- 9AKK108468A7994
- Suitable For
- S750DR
- Suitable for Product Class
- 1:Selective Main Circuit Breakers SMCBs
- Rated Operational Current AC-15 (I e )
- (230 V) 6 A; (400 V) 2 A
- Mechanical Endurance
- 10000 cycle
- Tightening Torque
- 0.8 N·m
- Accessory Type
- Auxiliary Contact
- Terminal Type
- Screw Terminals
- Rated Operational Current AC-14 (I e )
- (230 V) 6 A; (400 V) 2 A
- Rated Operational Current DC-12 (I e )
- (125 V) 1.5 A; (250 V) 0.5 A
- Rated Operational Current DC-13 (I e )
- (24 V) 4 A; (60 V) 2 A
- Rated Insulation Voltage (U i )
- acc. to IEC/EN 60664-1 690 V
- Rated Impulse Withstand Voltage (U imp )
- 6 kV
- Power Loss
- 0.24 W
- Number of Auxiliary Contacts CO (SPDT)
- 2
- Overvoltage Category
- IV
- Pollution Degree
- 3
- Resistance to Vibrations
- 20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz
- Product Net Width
- 8.7 mm
- Product Net Height
- 128 mm
- Product Net Depth / Length
- 77 mm
- Dimension Diagram
- 9AKK108466A5090
- Declaration of Conformity - CE
- 2CDK400611D2702
- Instructions and Manuals
- 2CDS707009P0001
- ETIM 9
- EC001286 - Auxiliary device for distribution board devices
- UNSPSC
- 39121614
- eClass
- V11.0 : 27143502
- Standards
- IEC/EN 62019; IEC/EN 60947-5-1
- Function
- Auxiliary switch
- Rated voltage
- 230 V
- Installed at the factory
- No
- Width in number of modular spacings
- 0.75
- Additional equipment
- Auxiliary switch
- Voltage type for actuating
- AC/DC
- Number of contacts as change-over contact
- 2
- With auto test for earth leakage function
- No
- Suitable for max. current main contact unit
- 45 A
- Country of origin
- Bulgaria
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4016779941891
- SAP 1200641679
- Code 83053869
Product Documentation
