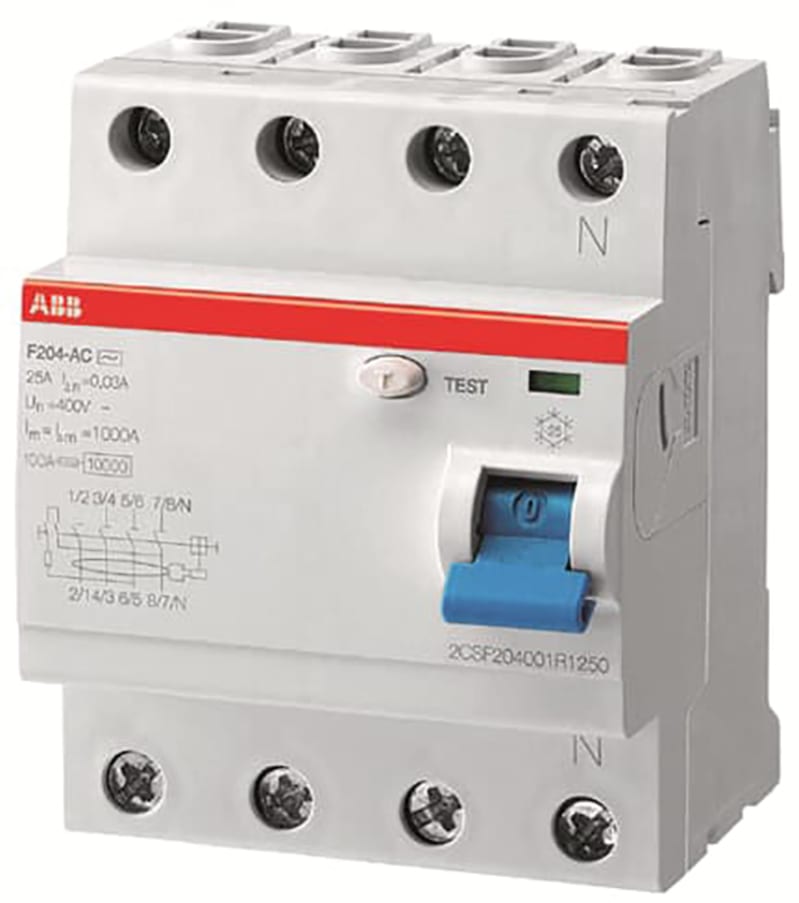

Residual Current Circuit Breaker F204 A 25A/30MA 400Hz
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CSF204197R1250 F204, 4 pole, Type A, 25A, 30mA, 400Hz.
Technical Specifications
- Manufacturer part number (MPN)
- 2CSF204197R1250
- EAN / GTIN
- 8012542968603
- HS code
- 8536.90
- Sales unit
- pcs
- Rated current
- 25 A
- Frequency
- 400 Hz
- Mounting method
- DIN rail
- Voltage type
- AC
- Built-in depth
- 69 mm
- Rated voltage
- 400 V
- Rated insulation voltage Ui
- 500 V
- Number of poles
- 4
- Rated fault current
- 0.03 A
- Leakage current type
- A
- Selective protection
- No
- Short-circuit breaking capacity (Icw)
- 1 kA
- Surge current capacity
- 0.25 kA
- Pollution degree
- 2
- Width in number of modular spacings
- 4
- Short-time delayed tripping
- No
- RAL-number (similar)
- 7035
- Explosion-proof
- No
- Degree of protection (IP)
- IP20
- Connectable conductor cross section solid-core
- 25 mm²
- Connectable conductor cross section multi-wired
- 0–25 mm²
- With interlocking device
- Yes
- Ambient temperature during operating
- -25–55 °C
- Additional equipment possible
- Yes
- Device width
- 70 mm
- Device height
- 85 mm
- Device depth
- 69 mm
- Rated impulse withstand voltage Uimp
- 4 kV
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 8012542968603
- SAP 1200493396
- Code 82631114
Product Documentation
