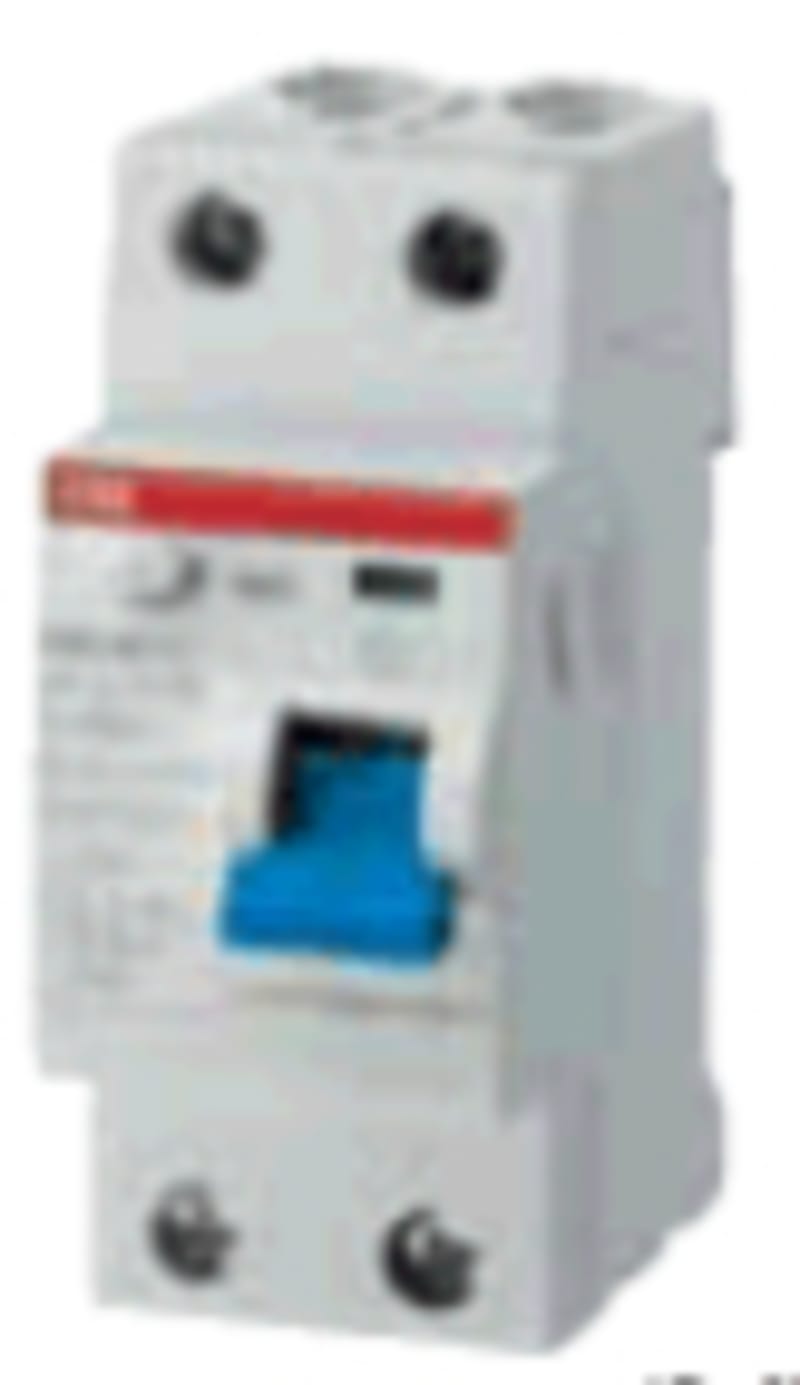

Residual Current Circuit Breaker F202 A S-100A/1A

ABB 2CSF202201R5900 — The RCCBs F200 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous and selective AC and A types is completed with some configurations for special applications.

Manufacturer part number (MPN)

2CSF202201R5900

EAN / GTIN

8012542916307

HS code

8536.90

Sales unit

pcs

Carbon Footprint (Full Lifecycle)

8.966856 kg CO₂ eq

EcoSolutions Profile

9AKK108469A3794

Recyclability Rate of the Product acc. to EN45555

Design for Closing Resource Loops - Standard EN45555 - 82.05 %

ABB Site Meeting Group Waste To Landfill Target

No non-hazardous waste is sent to a landfill; UL 2799 Zero Waste To Landfill Validation available

Sustainable Material Content in Packaging (wt. %)

Recycled Paper - 0 %; Recycled Paper - 3.91 %; Recycled Cardboard - 29.08 %; Recycled Cardboard - 61.23 %; Recycled Cardboard - 2.66 %

Extended Product Lifetime

Product Durability

Offered with Takeback Services

Take Back for Recycling

End Of Life Disassembling Instructions

9AKK108470A1748

Environmental Product Declaration - EPD

9AKK108469A9642

Type of Residual Current

Type A

Test Voltage (Out)

110-254 V

Maximum Surge Current

5 kA

Leakage Current Type

A

Power Supply Connection

Arbitrary

Electrical Endurance

10000 cycle

Mechanical Endurance

20000 cycle

Number of Poles

2P

Number of Modular Spacings per DIN Rail

2

Operating Characteristic

Selective

Tightening Torque

2.8 N·m

Accessory Type

Auxiliary contact; Auxiliary/Signal contact; Shunt trip; Undervoltage release; Overvoltage release; Motor Operating Device; Autoreclosing Unit

Screw Terminal Type

Cage Terminal

Options Provided

None

Accessories Available

Yes

Connecting Capacity

Busbar 10 mm²; Rigid 35 ... 35 mm²; Flexible 35 ... 35 mm²

Rated Cross-Section

4 - Multi-Wired 0...35 mm²; 1 - Solid-Core 35...35 mm²

Wire Stripping Length

Top 12.7 mm; Bottom 14.9 mm

Terminal Type

Screw Terminals

Rated Voltage (U r )

230 V

Rated Operational Voltage

230 V

Rated Insulation Voltage (U i )

500 V

Rated Impulse Withstand Voltage (U imp )

4 kV

Input Voltage Type

AC

Rated Current (I n )

100 A

Rated Residual Current

1000 mA

Rated Conditional Short-Circuit Current (I nc )

10 kA

Frequency ( f )

50/60 Hz

Rated Frequency (f)

50/60 Hz

Power Loss

at Rated Operating Conditions per Pole 6.5 W; Total 13 W

RAL Number

RAL 7035 - Light Grey

Number of Modules

2

Maximum Operating Voltage UL/CSA

277 V AC

Ambient Air Temperature

Operation -25 ... 55 °C; Storage -40 ... 70 °C

Degree of Protection

Terminals IP20; Housing IP40

Pollution Degree

2

Resistance to Vibrations

20 Cycles with Load 0.8 In: 1g or 0.1mm 5...150...5 Hz

Resistance to Shock acc. to IEC 60068-2-27

25g 2 shocks 13 ms

Environmental Information

Refer to RoHS

Width in Number of Modular Spacings

2

Product Net Width

35 mm

Product Net Height

85 mm

Product Net Depth / Length

69 mm

Built-In Depth ( t 2 )

69 mm

EPLAN Data

9AAC202083_EPLAN

Declaration of Conformity - CE

9AKK106713A5602

Instructions and Manuals

9AKK107991A6127

Mounting Type

DIN-Rail

Mounting Position

Any

ETIM 9

EC000003 - Residual current circuit breaker (RCCB)

UNSPSC

39121601

eClass

V11.0 : 27142201

IDEA Granular Category Code (IGCC)

4875 >> Residual current circuit breaker (RCCB)

Object Classification Code

F

Standards

IEC/EN 61008; UL 1053

HS Code

8536.90

• EAN 8012542916307
• SAP 1200282151
