Undervoltagestrigger S2C-UA 110V DC
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CSS200911R0009 — The S2C-UA 110 DC undervoltage release has the function to protect the load in case of a voltage drop included between 70% and 35% of its rated value. Positive safety (device tripping when the voltage is disconnected) emergency stop by means of a button. Suitable for MCBs S200 series, RCCBs F200 series and RCBOs DS201, DS202C, DS200 series. It can be used with MCBs SN201 series by means of SN201-IH interface module. Rated voltage: 110V d.c.
Technical Specifications
- Manufacturer part number (MPN)
- 2CSS200911R0009
- EAN / GTIN
- 8012542896609
- Sales unit
- pcs
- Voltage
- 110 V
- Country of Origin
- India
- Product Sales Status
- Active
- Suitable For
- S200; S300P; SN201; F200; DS201; DS202C; DS200; DS203NC; DSE201 M; SD200; DS-ARC1; S-ARC1
- Suitable for Product Class
- Miniature Circuit Breakers MCBs; Residual Current Devices RCDs; Residual Current Breakers with Overload Protection RCBo
- Number of Switches
- 1
- Rated Voltage (U r )
- 110 V
- Power Loss
- Total 2.2 W
- Number of Contacts CO
- 0
- Number of Contacts NC
- 0
- Number of Contacts NO
- 0
- Environmental Information
- document not needed
- Product Net Width
- 18 mm
- Product Net Height
- 85 mm
- Product Net Depth / Length
- 74 mm
- Declaration of Conformity - CE
- 9AKK106713A5575
- Instructions and Manuals
- 2CSS490001D0010
- ETIM 9
- EC001286 - Auxiliary device for distribution board devices
- UNSPSC
- 39121010
- eClass
- V11.0 : 27143502
- IDEA Granular Category Code (IGCC)
- 4148 >> Under voltage coil
- Object Classification Code
- Q
- Voltage type for actuating
- DC
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 8012542896609
- SAP 1200640369
- Code 83057507
Product Documentation
More from ABB
ABB
ABB SACE Tmax XT7H 1000 Moulded-Case Circuit Breaker — Ekip Touch Meas.LSI, In=1000 A, 3-Pole
1SDA100911R1
ABB
Modular Current Transformer TRFM/100
2CSM100090R1111
ABB
Illuminated Push Button E217-16-01G48
2CCA703264R0001
ABB
ABB SN201-C20 Miniature Circuit Breaker — 1P+N, Type C, 20 A, 6 kA
2CSS255101R0204
ABB
ABB 1SDA104764R1 Extended Front Terminals 3PCS FOR Fixed PART XT5 400
ABB

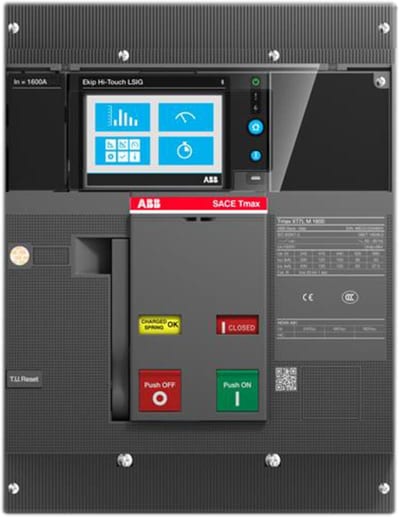

ABB SACE Tmax XT7L 1600 Moulded-Case Circuit Breaker — Ekip M Touch LRIU, In=1600 A, 3-Pole
1SDA101537R1
ABB
Residual Current Circuit Breaker WITH Overcurrent DS201 M B13 A100MA
2CSR275180R2135
ABB

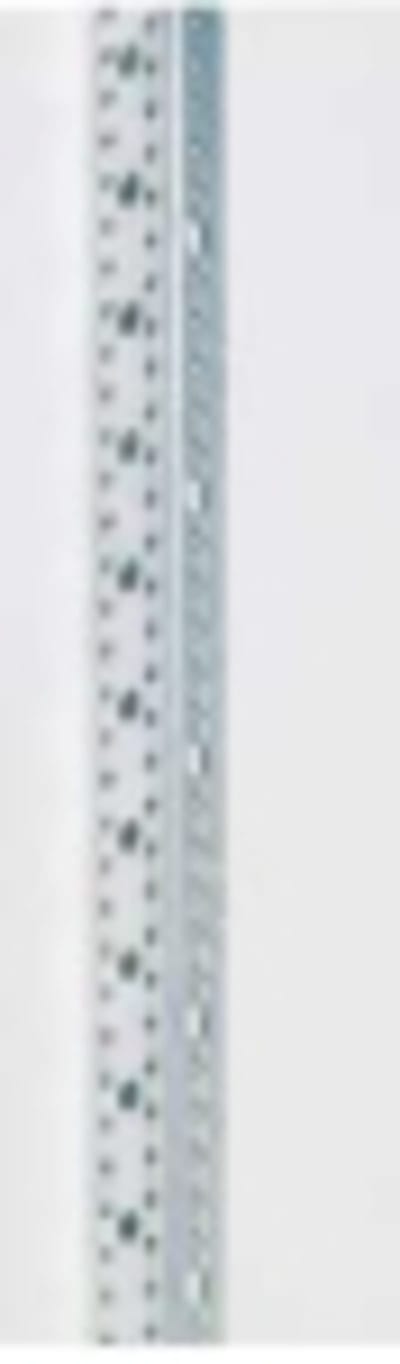

ZW377 WR-rail L=1650mm
