Undervoltagestrigger S2C-UA 24V AC
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CSS200911R0002 — The S2C-UA 24 AC undervoltage release has the function to protect the load in case of a voltage drop included between 70% and 35% of its rated value. Positive safety (device tripping when the voltage is disconnected) emergency stop by means of a button. Suitable for MCBs S200 series, RCCBs F200 series and RCBOs DS201, DS202C, DS200 series. It can be used with MCBs SN201 series by means of SN201-IH interface module. Rated voltage: 24V a.c.
Technical Specifications
- Manufacturer part number (MPN)
- 2CSS200911R0002
- EAN / GTIN
- 8012542839804
- Sales unit
- pcs
- Voltage
- 24 V
- Suitable For
- S200; S300P; SN201; F200; DS201; DS202C; DS200; DS203NC; DSE201 M; SD200; DS-ARC1; S-ARC1
- Suitable for Product Class
- Miniature Circuit Breakers MCBs; Residual Current Devices RCDs; Residual Current Breakers with Overload Protection RCBo
- Number of Switches
- 1
- Rated Voltage (U r )
- 24 V
- Number of Contacts CO
- 0
- Number of Contacts NC
- 0
- Number of Contacts NO
- 0
- Environmental Information
- document not needed
- Product Net Width
- 18 mm
- Product Net Height
- 85 mm
- Product Net Depth / Length
- 74 mm
- Declaration of Conformity - CE
- 9AKK106713A5575
- Instructions and Manuals
- 2CSS490001D0010
- ETIM 9
- EC001286 - Auxiliary device for distribution board devices
- UNSPSC
- 39121010
- eClass
- V11.0 : 27143502
- IDEA Granular Category Code (IGCC)
- 4148 >> Under voltage coil
- Object Classification Code
- Q
- Voltage type for actuating
- AC
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 8012542839804
- SAP 1200640361
- Code 83057535
Product Documentation
More from ABB
ABB
KOMPENSATOR E295-CP (E296-CP Compensator)
ABB
Ekip LS/In In=160A XT4 3P
1SDA067501R1
ABB
ABB 1SDA066268R1 REAR Terminals Adjustable 3PCS FOR Fixed PART XT1
ABB
ABB SACE Tmax XT4H 160 Moulded-Case Circuit Breaker — MA 100 Im=500, In=100 A, 3-Pole
1SDA068447R1
ABB
Glidekontakt.v.on und. T7
1SDA063572R1
ABB
ABB SACE Tmax XT2V 160 Moulded-Case Circuit Breaker — TMD 6,3-63, In=6.3 A, 3-Pole
1SDA067678R1
ABB

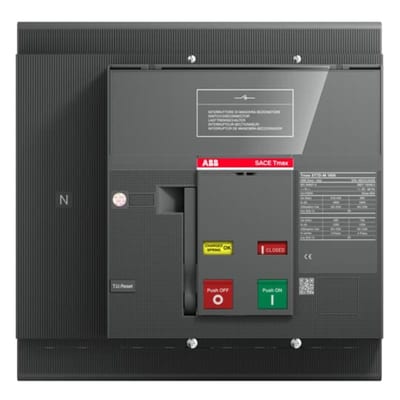

ABB 1SDA101917R1 Switch-Disconnector TMAX XT7D 1600 Fixed FOUR-POLE WITH Front Terminals AND Stored Energy Operating Mechanism
ABB

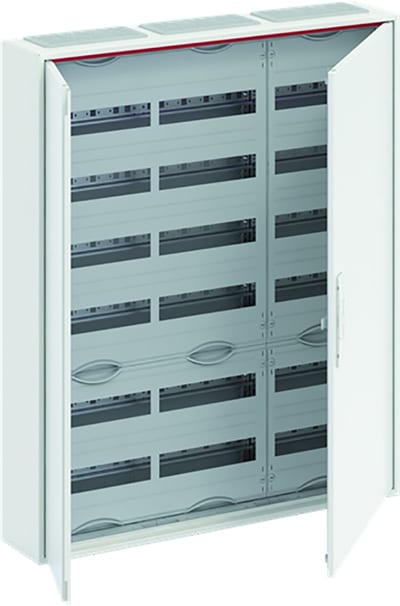

WALL-Mount Cabinet CA36V 800X950X160MM. IP44 (2CPX052192R9999)
