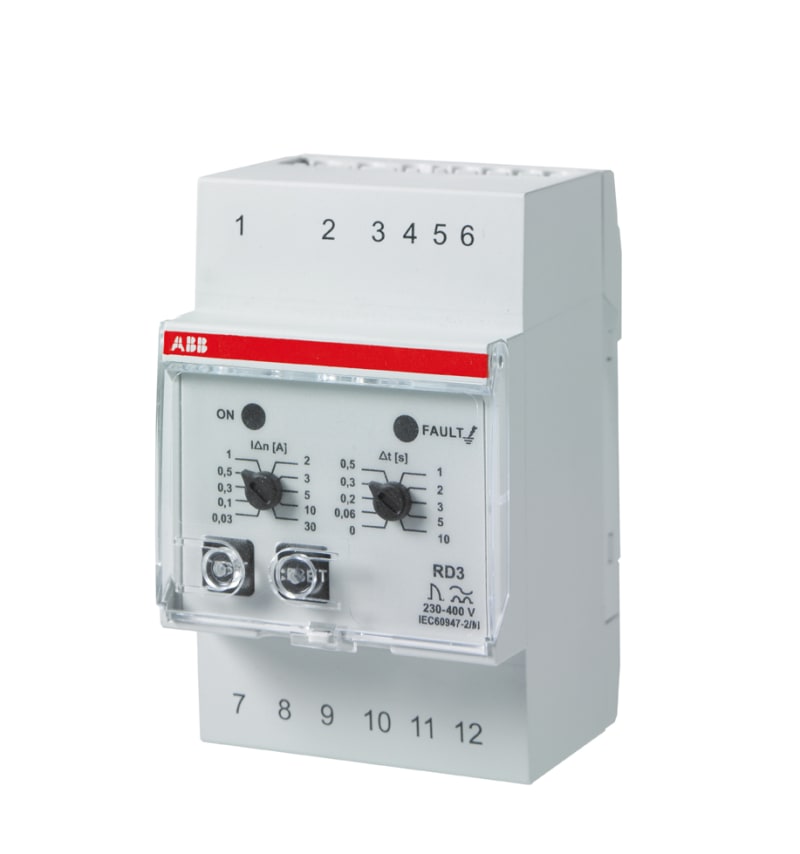

ABB RD3-48 Residual Current Relay — Type A, 12 … 48 V AC/DC

The ABB 2CSJ201001R0001 is an RD3-48 electronic residual current relay from the RD3 series. It provides residual current protection and earth-fault monitoring, and works with the whole ABB S200 miniature circuit breaker range and with Tmax moulded-case breakers up to T5, which is why it is normally specified for industrial boards rather than for final domestic circuits. It is a Type A device, so it detects sinusoidal AC and pulsating DC residual currents. Sensitivity and tripping delay are both set on the device, which is what lets one part number cover a range of installations and lets discrimination be arranged with the devices downstream. Supply voltage is 12 … 48 V AC/DC. This is the base version of the series: no frequency filter and no pre-alarm threshold, with manual reset. Where variable-speed drives are present, or where advance warning of failing insulation is wanted, the RD3M or RD3P covers that. Supplied by cBallast on quote-to-invoice terms; lead time and freight are quoted per RFQ against the destination Incoterm.

Manufacturer part number (MPN)

2CSJ201001R0001

EAN / GTIN

8012542748236

Sales unit

pcs

Country of Origin

China

Lead Time

97 day

Product Sales Status

Inactive

Type of Residual Current

Type A

Function

For mixed system

Current Rating

Response value amperage 1 500 ... 500 mA

Number of Contacts

2 Delay Time ( τ ): Delay-On Energization, Maximum, Permitted 10 s; Delay-On Energization, minimum, Adjustable 0 s

Filter Option

no frequency filter

Options Provided

Pre-alarm threshold: no Rated Voltage (U r ): 48...48 V

Rated Operational Voltage

12 ... 48 V AC/DC Rated Control Supply Voltage (U s ): (50 Hz) 48...48 V; (50 Hz) 48...48 V; (60 Hz) 48...48 V; (60 Hz) 48...48 V; (DC) 48...48 V; (DC) 48...48 V Rated Frequency (f): 50 … 60 Hz

Power Loss

Total 0.6 W

Number of Contacts CO

1

Number of Contacts NC

0

Number of Contacts NO

0

Product Net

Width

52.8 mm

Product Net

Height

85 mm

Product Net Depth / Length

65 mm

Declaration of Conformity - CE

9AKK106713A5628

Instructions and Manuals

2CSF423005D1002

Mounting Type

DIN-Rail

ETIM 9

EC001445 - Residual current monitoring relay

UNSPSC

39121601

eClass

V11.0 : 27371809 IDEA Granular Category Code (IGCC): 4878 >> Residual current release for power circuit breaker

Object Classification Code

F

Standards

IEC EN 60947-2 Ann M

Type of electric connection

Screw connection Rated control supply voltage AC 50 Hz: 48 V Rated control supply voltage AC 60 Hz: 48 V Rated control supply voltage DC: 48 V Voltage type for actuating: AC/DC With detachable clamps: No Response value amperage 1: 500 mA Response value amperage 2: 500 mA Min. adjustable delay-on energization time: 0 s Max. permitted delay-on energization time: 10 s Indication of difference current: Yes Error registration possible: No Number of contacts as change-over contact: 1

Width

52.8 mm

Height

85 mm

Depth

65 mm

Product family

ABB RD3 electronic residual current relay

Model

RD3-48

Device type

Residual current relay

Supply voltage

12 … 48 V AC/DC

Reset

Manual

Pre-alarm threshold

Not fitted

Frequency filter

Not fitted

LED bar indicator

Not fitted

HS Code

8536.41

• EAN 8012542748236
• SAP 1200640947
• Code 83055807
• MPN 2CSJ201001R0001
• Model RD3-48
