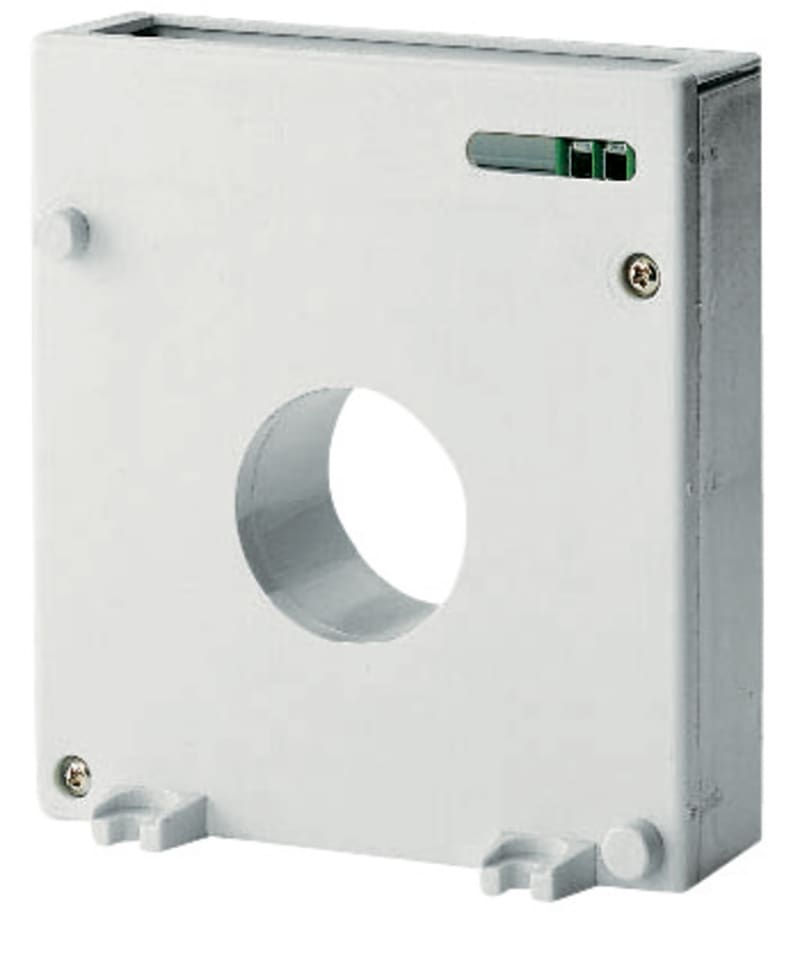

Sumcurrentstrafo TR5/A 210mm
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CSG210200R1211 — Residual current monitors (RCMs) with external transformer can detect leakage currents. Through minidip you can set sensitivity and intervention time. According to the same diameter, transformers are made in a single version for all relay sensitivity values.
Technical Specifications
- Manufacturer part number (MPN)
- 2CSG210200R1211
- EAN / GTIN
- 8012542065708
- Sales unit
- pcs
- Current Limit Function
- FS 5
- Apparent Power Output
- 630 V·A
- Secondary Output Connection
- Screw connection
- Model Number
- Through-feed current converter
- Number of Inputs
- Primary 1
- Product Net Width
- 0.290 m
- Product Net Height
- 0.310 m
- Product Net Depth / Length
- 0.055 m
- Inside Diameter
- 210 mm
- Declaration of Conformity - CE
- 9AKK106713A5628
- ETIM 9
- EC002048 - Current transformer
- UNSPSC
- 39121032
- eClass
- V11.0 : 27210902
- IDEA Granular Category Code (IGCC)
- 4189 >> Toroidal current transformers
- Object Classification Code
- F
- Model
- Through-feed current converter
- Rated primary current
- 25 A
- Rated secondary current
- 12 A
- Rated secondary apparent power
- 630 VA
- Accuracy class
- 0.5
- Overcurrent limiting factor
- FS 5
- Calibrated
- Yes
- With contact protection
- Yes
- Height opening
- 290 mm
- Width opening
- 290 mm
- Snap mounting
- No
- With copper rail
- No
- Number of primary inputs
- 1
- Secondary connection
- Screw connection
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8504.31
Cross References
- EAN 8012542065708
- SAP 1200640949
- Code 83055992
Product Documentation
More from ABB
ABB
ABB SACE Tmax XT3S 250 Moulded-Case Circuit Breaker — In=400 A, 4-Pole 1SDA068275R1
ABB
ABB SA/S12.6.2.2 KNX Binary Switch Actuator, 12-Channel, 6 A
ABB
ABB Kit for DIN-rail mounting of switch according to DIN50022 for XT1 4 pole
KIT DIN50022 XT1 4p PLATE DIN
ABB
ABB 1SDA066300R1 Ronis Key Lock KL-D FP W for XT2-XT4, Key A
ABB
JF.LYSB.AUT.DS-ARC1 M B20 A30
2CSA275103R1205
ABB
ABB 1SDA066853R1 Front Terminals 3PCS XT2
ABB
ABB SACE Tmax XT2N 160 Moulded-Case Circuit Breaker — TMD R2, In=2 A, 3-Pole
1SDA067001R1
ABB
Blindav.H=150 GEMINI size. 1
1SL0324A00
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 2CSG210200R1211?
- 2CSG210200R1211 can be ordered from cballast.com as a ABB catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this ABB product?
- The manufacturer part number is 2CSG210200R1211.
- What is the HS code for 2CSG210200R1211?
- The customs tariff (HS) code for 2CSG210200R1211 is 8504.31.
- Who manufactures 2CSG210200R1211?
- 2CSG210200R1211 is a ABB product in the Electrical Components range.
- Is a datasheet available for 2CSG210200R1211?
- Yes — the 2CSG210200R1211 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 2CSG210200R1211?
- The minimum order quantity is 1.
- Is 2CSG210200R1211 available?
- Yes — 2CSG210200R1211 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
