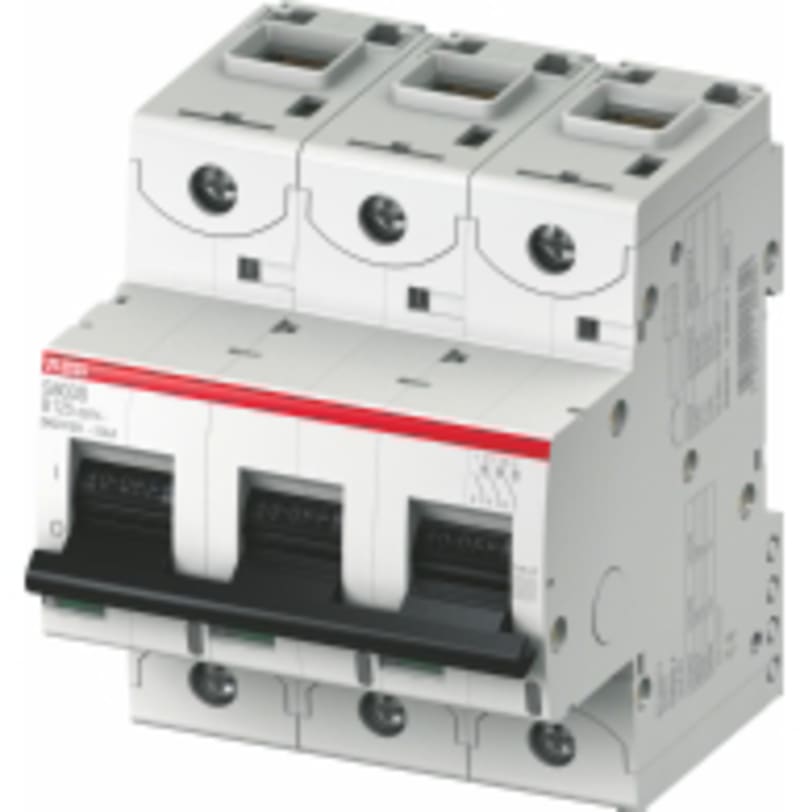

ABB S803S-KM25 Miniature Circuit Breaker — 3P, magnetic-only, 25 A, 50 kA
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB S803S-KM25 miniature circuit breaker (MCB) from the S800 high performance range. 3P, rated current In = 25 A, magnetic-only instantaneous release (short-circuit protection only, no thermal overload element). Rated ultimate short-circuit breaking capacity Icu = 50 kA (IEC 60947-2); rated operational voltage Ue 240/415 V AC. DIN-rail modular device for short-circuit protection of cables and equipment. Conforms to IEC 60947-2. ABB order code 2CCS863001R0516, EAN 7612271202200, ABB/SAP material 1200261341, catalogue code 82241183.
Technical Specifications
- Manufacturer
- ABB
- Product family
- S800 high performance
- Type designation
- S803S-KM25
- Manufacturer part number (MPN)
- 2CCS863001R0516
- EAN / GTIN
- 7612271202200
- ABB / SAP material no.
- 1200261341
- Poles
- 3P
- Release
- magnetic-only (instantaneous short-circuit)
- Rated current In
- 25 A
- Rated ultimate breaking capacity Icu
- 50 kA
- Rated operational voltage Ue
- 240/415 V AC
- Standard
- IEC 60947-2
- HS code
- 8536.20
- Sales unit
- pcs
Standards & Compliance
- Standard
- IEC 60947-2
- HS Code
- 8536.20
Cross References
- EAN 7612271202200
- SAP 1200261341
- Code 82241183
