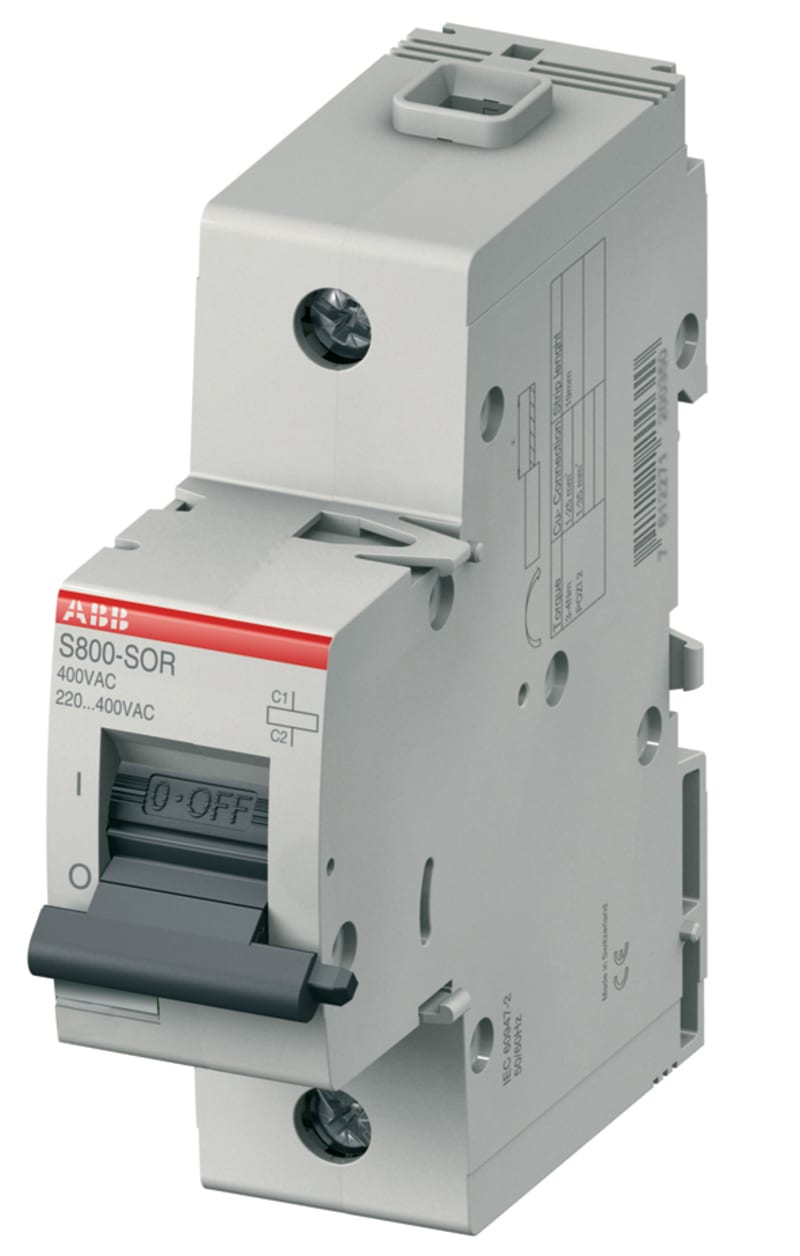

ABB 2CCS800900R0191 S800-SOR24 Shunt operation release 24 V AC / DC
Pricing
Request a quote
We reply within 24 hours
Overview
ABB 2CCS800900R0191 S800-SOR24 Shunt operation release 24 V AC / DC is listed under Electrical Components / Circuit Breaker Accessories. Sales unit: pcs; Voltage: 24 V; Rated Voltage (U r ): 24 V; Rated Operational Voltage: 24 V; Frequency ( f ): 50/60 Hz; Power Loss: Total 16.6 W; Total 17 V·A.
Technical Specifications
- Manufacturer part number (MPN)
- 2CCS800900R0191
- EAN / GTIN
- 7612271208318
- Sales unit
- pcs
- Voltage
- 24 V
- Suitable For
- S800P; S800S; S800N; S800C; S800B; S800HV; S800U; S800PV-SP; S800PV-SD; S800PV-M-H
- Rated Voltage (U r )
- 24 V
- Rated Operational Voltage
- 24 V
- Rated Control Supply Voltage (U s )
- (50 Hz) 24...24 V; (50 Hz) 24...24 V; (60 Hz) 24...24 V; (60 Hz) 24...24 V; (DC) 24...24 V; (DC) 24...24 V
- Frequency ( f )
- 50/60 Hz
- Power Loss
- Total 16.6 W; Total 17 V·A
- Number of Contacts CO
- 0
- Number of Contacts NC
- 0
- Number of Contacts NO
- 1
- Environmental Information
- 2CCY413207D0203
- Product Net Width
- 27 mm
- Product Net Height
- 95 mm
- Product Net Depth / Length
- 82.5 mm
- Dimension Diagram
- 2CCC413003C0201
- EPLAN Data
- 9AAC212941_EPLAN
- Declaration of Conformity - CE
- 9AKK108472A2536
- Instructions and Manuals
- 9AKK106930A3418
- ETIM 9
- EC001023 - Shunt release (for power circuit breaker)
- UNSPSC
- 39121601
- eClass
- V11.0 : 27370418
- IDEA Granular Category Code (IGCC)
- 4879 >> Shunt release (for power circuit breaker)
- Object Classification Code
- F
- Standards
- IEC 60947-5-1_UL489
- Suitable for off-load switch
- No
- Suitable for overload relay
- Yes
- Type of electric connection
- Screw connection
- Rated control supply voltage AC 50 Hz
- 24 V
- Rated control supply voltage AC 60 Hz
- 24 V
- Rated control supply voltage DC
- 24 V
- Suitable for motor safety switch
- No
- Suitable for power circuit breaker
- Yes
- Voltage type for actuating
- AC/DC
- Number of contacts as normally open contact
- 1
- Country of origin
- Switzerland
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 7612271208318
- SAP 1200641803
- Code 83054312
