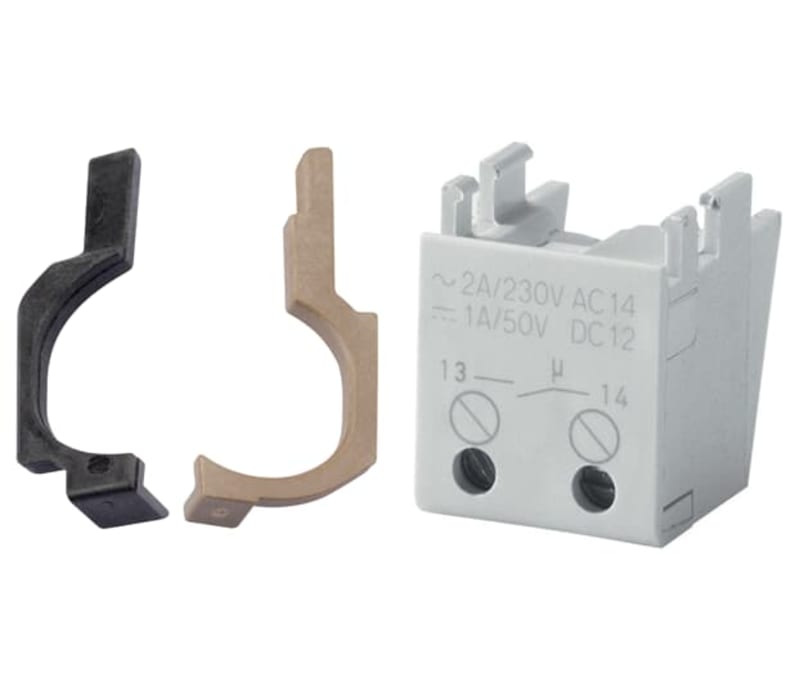

Auxiliary contact S2C-H01 15X1NC
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CDS200970R0041 — Indication of the position of the device’s contacts. S2C-H01 is the opening device and S2C-H10 the closing device. Compared to the S2C-S/H6R, the S2C-H10 entails less cost and many practical benefits. It can be fitted at the bottom of the MCBs and RCDs and is thus much more convenient for retrofitting than the side-mounted device because not all MCBs have to be removed from the rail first. And even when the MCBs affected are connected to a busbar, they do not have to be removed. 50% space can be saved. Suitable for MCBs S200 series, electronic RCBOs DSE200 series.
Technical Specifications
- Manufacturer part number (MPN)
- 2CDS200970R0041
- EAN / GTIN
- 4016779065160
- Sales unit
- pcs
- Recyclability Rate of the Product acc. to EN45555
- Design for Closing Resource Loops - Standard EN45555 - 76.5 %
- ABB Site Meeting Group Waste To Landfill Target
- No non-hazardous waste is sent to a landfill
- Offered with Takeback Services
- Take Back for Recycling
- End Of Life Disassembling Instructions
- 9AKK108472A0830
- Environmental Product Declaration - EPD
- 9AKK108468A9282
- Function
- Auxiliary Contact
- Suitable For
- S200; S200M; S200P; S200S; S200 MT; S200 MTR; S200 MUC; S300P; DS-ARC1; SD200; DS201(2019)
- Suitable for Product Class
- Miniature Circuit Breaker; Residual Current Device
- Number of Auxiliary Contacts NC
- 1
- Number of Auxiliary Contacts NO
- 0
- Accessory Type
- Auxiliary Contact
- Power Loss
- 0.5 W; Maximum 0.5 W
- Number of Auxiliary Contacts CO (SPDT)
- 0
- Product Net Width
- 17.4 mm
- Product Net Height
- 21.2 mm
- Product Net Depth / Length
- 23.1 mm
- Declaration of Conformity - CE
- 9AKK108468A4564
- Instructions and Manuals
- GHS2007025P0006
- Mounting Position
- bottom
- ETIM 9
- EC001286 - Auxiliary device for distribution board devices
- UNSPSC
- 39121522
- eClass
- V11.0 : 27143502
- IDEA Granular Category Code (IGCC)
- 4743 >> Auxiliary contact block
- Standards
- CSA 22.2 No. 235; GB/T 14048.5; UL 1077
- Rated voltage
- 230 V
- Installed at the factory
- No
- Rated switch current
- 2 A
- Device fitting
- Miniature circuit breaker (MCB)
- Additional equipment
- Auxiliary switch
- Voltage type for actuating
- AC/DC
- Number of contacts as normally closed contact
- 1
- With auto test for earth leakage function
- No
- Suitable for max. number of poles main contact unit (total)
- 1
- Suitable for max. current main contact unit
- 63 A
- Country of origin
- Bulgaria
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4016779065160
- SAP 1200640334
- Code 83057598
Product Documentation
