Auxiliary contact S2C-H10, 1NO
Pricing
Request a quote
We reply within 24 hours
Product Description

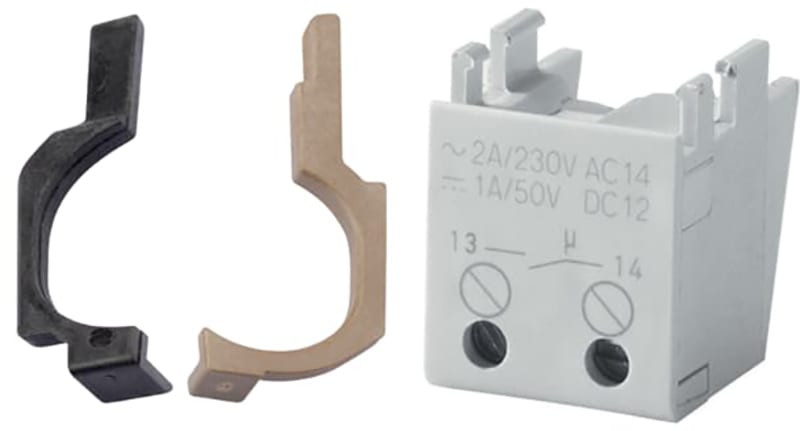

ABB 2CDS200970R0032 — S2C-H10 Bottom-fitting auxiliary contact 1NO with slider for MCB + AFDD.
Technical Specifications
- Manufacturer part number (MPN)
- 2CDS200970R0032
- EAN / GTIN
- 4016779065139
- Sales unit
- pcs
- Contact configuration
- 1 NO
- Configuration Only
- No
- Country of Origin
- Germany
- Criticality
- No
- Lead Time
- 28 day
- Note
- No
- Product Availability Class
- Standard delivery time
- Product Sales Status
- Active
- Storage Location
- 4001
- Recyclability Rate of the Product acc. to EN45555
- Design for Closing Resource Loops - Standard EN45555 - 76.5 %
- ABB Site Meeting Group Waste To Landfill Target
- No non-hazardous waste is sent to a landfill
- Offered with Takeback Services
- Take Back for Recycling
- End Of Life Disassembling Instructions
- 9AKK108472A0830
- Environmental Product Declaration - EPD
- 9AKK108468A9282
- Function
- Auxiliary Contact
- Suitable For
- S200; S200M; S200P; S200S; S200 MT; S200 MTR; S200 MUC; S300P; DS-ARC1; SD200; DS201(2019)
- Suitable for Product Class
- Miniature Circuit Breaker; Residual Current Device
- Number of Auxiliary Contacts NC
- 0
- Number of Auxiliary Contacts NO
- 1
- Accessory Type
- Auxiliary Contact
- Power Loss
- 0.5 W; Maximum 0.5 W
- Number of Auxiliary Contacts CO (SPDT)
- 0
- Product Net Width
- 17.4 mm
- Product Net Height
- 21.2 mm
- Product Net Depth / Length
- 23.1 mm
- Declaration of Conformity - CE
- 9AKK108468A4564
- Instructions and Manuals
- GHS2007024P0006
- Mounting Position
- bottom
- ETIM 9
- EC001286 - Auxiliary device for distribution board devices
- UNSPSC
- 39121522
- eClass
- V11.0 : 27143502
- IDEA Granular Category Code (IGCC)
- 4743 >> Auxiliary contact block
- Standards
- CSA 22.2 No. 235; GB/T 14048.5; UL 1077
- Rated voltage
- 230 V
- Installed at the factory
- No
- Width in number of modular spacings
- 1
- Rated switch current
- 2 A
- Device fitting
- Miniature circuit breaker (MCB)
- Additional equipment
- Auxiliary switch
- Voltage type for actuating
- AC/DC
- Number of contacts as normally open contact
- 1
- With auto test for earth leakage function
- No
- Suitable for max. number of poles main contact unit (total)
- 1
- Suitable for max. current main contact unit
- 63 A
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4016779065139
- SAP 1200640327
- Code 83057593
