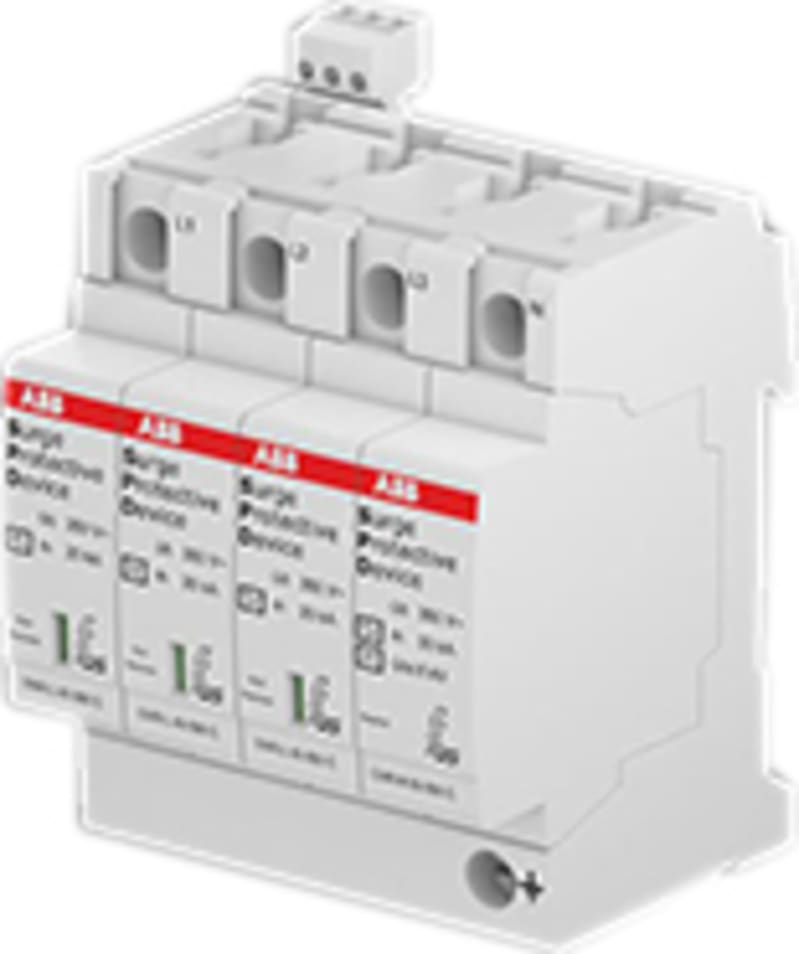

ABB 2CTB815708R3500 OVR T2 3L 80-440S P TS QS Surge Protective Device

ABB 2CTB815708R3500 OVR T2 3L 80-440S P TS QS Surge Protective Device is listed under Switchgear & Protection / Surge Protectors. HS code: 8536.30.

Manufacturer part number (MPN)

2CTB815708R3500 EAN / GTIN: 3660308525574 Sales unit: pcs Country of Origin: China Lead Time: 31 day Product Sales Status: Inactive Carbon Footprint (Full Lifecycle): 51.931176 kg CO₂ eq EcoSolutions Profile: 9AKK108472A3406 Environmental Product Declaration - EPD: 9AKK108472A1711 Type of Low Voltage Distribution System: TN-C; IT Suitable For: To protect the systems against the transient overvoltage (lightning) Nominal AC Voltage of the System (U o ): 400 / 690 V Maximum Continuous Operating Voltage (U c ): (L-PE) 440 V Temporary Overvoltage Test Value (U T ): 581 V Rated Service Short-Circuit Breaking Capacity (I cs ): 100 kA Discharge Current: Nominal (8 / 20 µs) 20 kA; I (max, 8 / 20 µs) 80 kA Impulse Current: I (imp, 10 / 350 µs, L-N) 6.25 kA Short Circuit Withstand Icc: 100 kA Arrester Class: II Number of Protected Poles: 3 Number of Auxiliary Contacts NC: 1 Number of Auxiliary Contacts NO: 1 Number of Poles: 3P Number of Conductors: 3 Transmission Standard: Optic Version: Plug-in Product Type: QS Options Provided: Industry, commercial building Auxiliary Circuit Load: minimum 12Vdc - 10mA; Maximum 250Vac - 1A Preventive Maintenance Feature: Yes Status Indicator: Yes Fuse Size: 3 modular spacing Cross-Section ( A cross ): Maximum Conductor Solid-Stranded 35 mm²; Maximum Conductor Flexible 25 mm² Rated Voltage (U r ): 400 V AC Voltage Protection Level ( Up): 2.1 kV; (L-N) 2.1 kV Degree of Protection: IP20 Maximum Operating Altitude Permissible: Without Derating 5000 Width in Number of Modular Spacings: 3 Product Net Width: 53.4 mm Product Net Height: 95.8 mm Product Net Depth / Length: 76.7 mm CQC Certificate: 9AKK107680A1974 Declaration: 2CTC432056G1701 Declaration of Conformity - CE: 9AKK108466A4617 Instructions and Manuals: 2CTC432106M1701 Mounting Type: DIN-Rail ETIM 9: EC000941 - Surge protection device for power supply systems UNSPSC: 39121610 eClass: V11.0 : 27130805 Object Classification Code: 141DEC Standards: IEC 61643-11 / EN 61643-11 System configuration DC: No System configuration IT: Yes System configuration TN: Yes System configuration TN-C: Yes System configuration TT: No System configuration other: No Nominal discharge surge current (8/20): 20 kA Max. discharge surge current (8/20): 20 kA Nominal voltage AC: 400 V Nominal voltage DC: 990 V Max. continuous voltage AC: 440 V Max. continuous voltage DC: 560 V Voltage protection level L-N: 2.1 kV Voltage protection level N-PE: 2.1 kV Max. overcurrent protection device, series connection (fuse): 160 A Short-circuit breaking capacity (Isccr): 100 kA Integrated short-circuit protection: No Integrated short-circuit protection selective to fuse gG: 160 A Integrated backup fuse: No Leakage-current free: No Construction size: 3 modular spacing Max. conductor cross section solid (solid, stranded): 35 mm² Max. conductor cross section flexible (fine-strand): 25 mm² With remote signalling contact: Yes Signalling at the device: Optical Category type 2: Yes

HS Code

8536.30

• EAN 3660308525574
• SAP 1200641874
• Code 83054322
