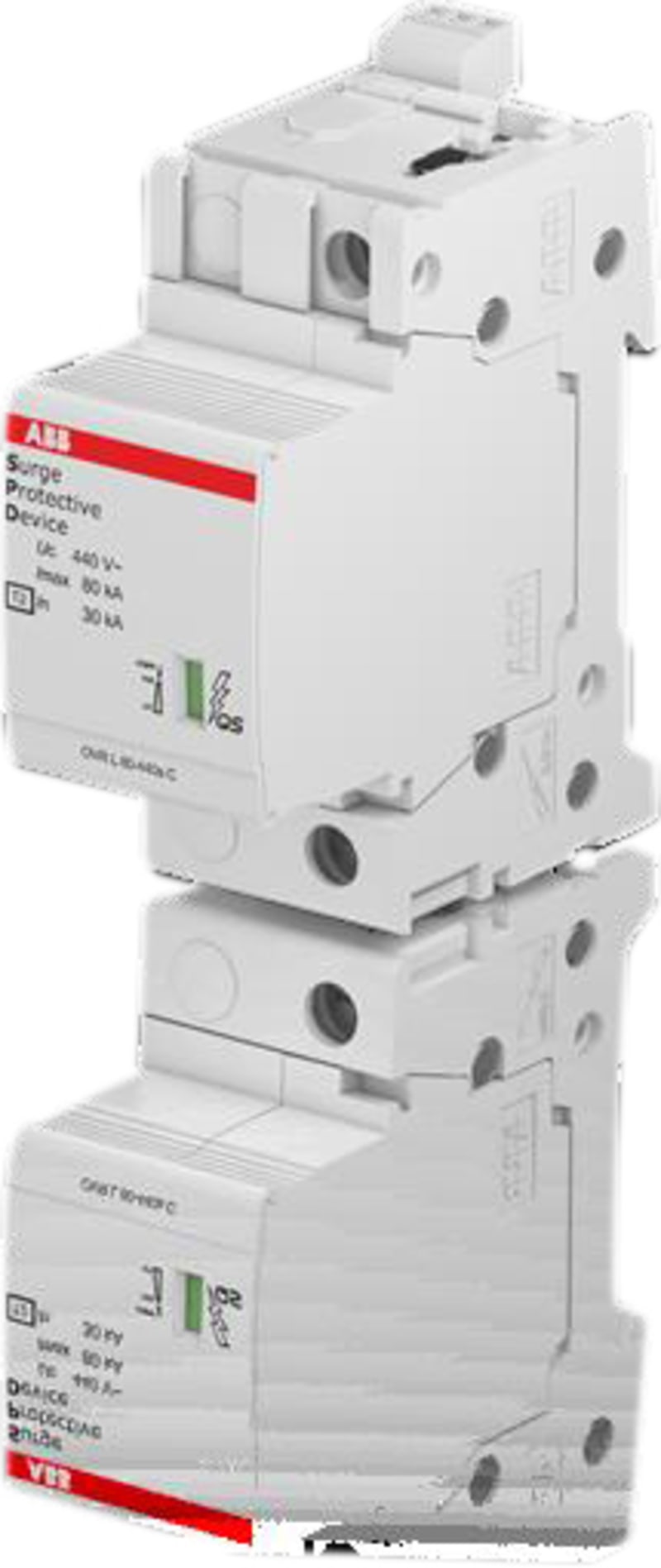

OVR T2 80-440S P TS QS

ABB 2CTB815708R2900 — Surge protective devices SPD type 2 protect low-voltage consumer systems against surge voltages as they are tested as SPD type 2 according to IEC 61643-11. The devices are compatible with the System pro M compact series. The SPD with TS are optionally equipped with a auxiliary contact. The variants with reserve varistor (s) offer additional protection for the system, as the SPD is not completely disconnected from the mains at the end of its service life, but with an additional smaller varistor still guarantees basic protection and the system thus until the surge arrester is replaced is still protected.

Manufacturer part number (MPN)

2CTB815708R2900 EAN / GTIN: 3660308525567 Sales unit: pcs Carbon Footprint (Full Lifecycle): 26.907638 kg CO₂ eq EcoSolutions Profile: 9AKK108472A3406 Environmental Product Declaration - EPD: 9AKK108472A1711 Type of Low Voltage Distribution System: TT; TN-C; TN-S; IT Suitable For: To protect the systems against the transient overvoltage (lightning) Nominal AC Voltage of the System (U o ): 400 / 690 V Maximum Continuous Operating Voltage (U c ): (L-PE) 440 V Temporary Overvoltage Test Value (U T ): 581 V Rated Service Short-Circuit Breaking Capacity (I cs ): 100 kA Discharge Current: Nominal (8 / 20 µs) 20 kA; I (max, 8 / 20 µs) 80 kA Impulse Current: I (imp, 10 / 350 µs, L-N) 6.25 kA Short Circuit Withstand Icc: 100 kA Arrester Class: II Number of Protected Poles: 1 Number of Auxiliary Contacts NC: 1 Number of Auxiliary Contacts NO: 1 Number of Poles: 1P Number of Conductors: 1 Transmission Standard: Optic Version: Plug-in Product Type: QS Options Provided: Industry, commercial building Auxiliary Circuit Load: minimum 12Vdc - 10mA; Maximum 250Vac - 1A Preventive Maintenance Feature: Yes Status Indicator: Yes Fuse Size: 4 modular spacing Cross-Section ( A cross ): Maximum Conductor Solid-Stranded 35 mm²; Maximum Conductor Flexible 25 mm² Rated Voltage (U r ): 400 V AC Voltage Protection Level ( Up): 1.8 kV; (L-N) 1.8 kV; (N-PE) 1.8 kV Degree of Protection: IP20 Maximum Operating Altitude Permissible: Without Derating 5000 Width in Number of Modular Spacings: 1 Product Net Width: 17.8 mm Product Net Height: 95.8 mm Product Net Depth / Length: 76.7 mm CQC Certificate: 9AKK107680A1974 Declaration: 2CTC432056G1701 Declaration of Conformity - CE: 9AKK108466A4617 Instructions and Manuals: 2CTC432106M1701 Mounting Type: DIN-Rail ETIM 9: EC000941 - Surge protection device for power supply systems UNSPSC: 39121610 eClass: V11.0 : 27130805 Object Classification Code: 141DEC Standards: IEC 61643-11 / EN 61643-11 System configuration DC: No System configuration IT: Yes System configuration TN: Yes System configuration TN-C: No System configuration TT: Yes System configuration other: No Nominal discharge surge current (8/20): 20 kA Max. discharge surge current (8/20): 20 kA Nominal voltage AC: 400 V Nominal voltage DC: 495 V Max. continuous voltage AC: 440 V Max. continuous voltage DC: 560 V Voltage protection level L-N: 1.8 kV Voltage protection level N-PE: 1.8 kV Max. overcurrent protection device, series connection (fuse): 160 A Short-circuit breaking capacity (Isccr): 100 kA Integrated short-circuit protection: No Integrated short-circuit protection selective to fuse gG: 160 A Integrated backup fuse: No Leakage-current free: No Construction size: 4 modular spacing Max. conductor cross section solid (solid, stranded): 35 mm² Max. conductor cross section flexible (fine-strand): 25 mm² With remote signalling contact: Yes Signalling at the device: Optical Category type 2: Yes Country of origin: Bulgaria

HS Code

8536.30

• EAN 3660308525567
• SAP 1200641857
• Code 83054261
