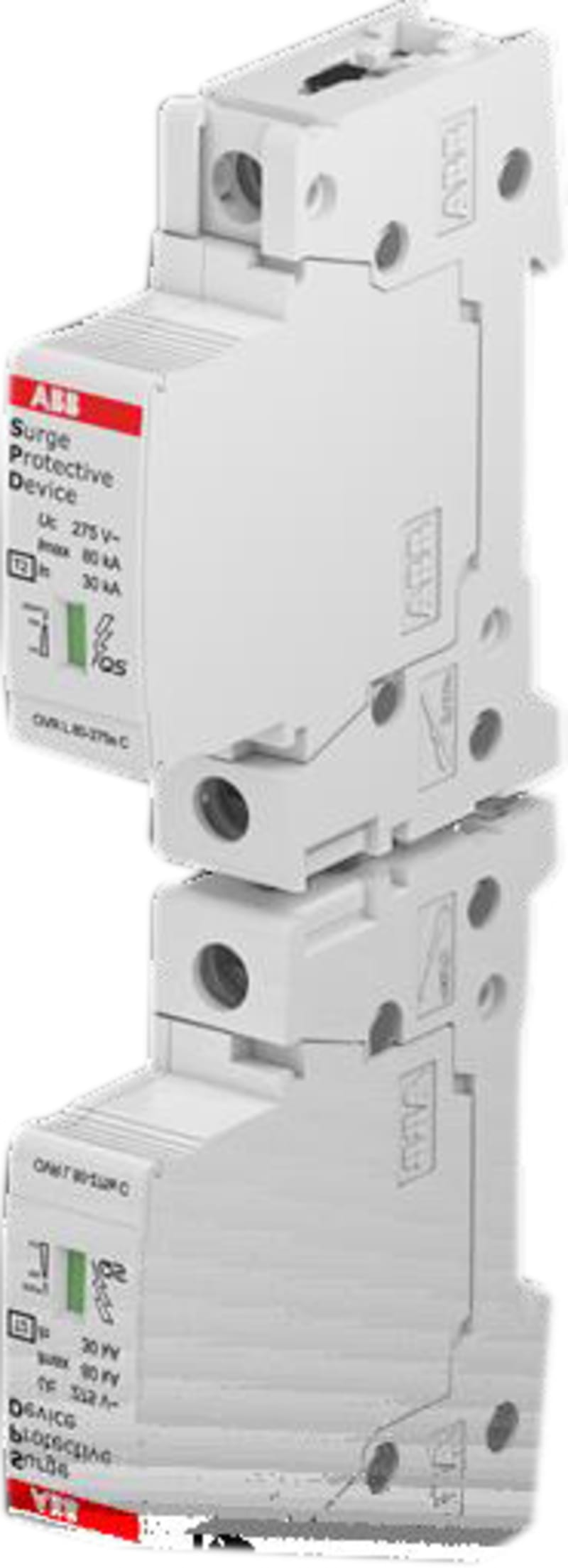

OVR T2 80-275S P QS (2CTB815708R1200)
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CTB815708R1200 — Surge protective devices SPD type 2 protect low-voltage consumer systems against surge voltages as they are tested as SPD type 2 according to IEC 61643-11. The devices are compatible with the System pro M compact series. The SPD with TS are optionally equipped with a auxiliary contact. The variants with reserve varistor (s) offer additional protection for the system, as the SPD is not completely disconnected from the mains at the end of its service life, but with an additional smaller varistor still guarantees basic protection and the system thus until the surge arrester is replaced is still protected.
Technical Specifications
- Manufacturer part number (MPN)
- 2CTB815708R1200
- EAN / GTIN
- 3660308525475
- Sales unit
- pcs
- Carbon Footprint (Full Lifecycle)
- 31.552612 kg CO₂ eq
- EcoSolutions Profile
- 9AKK108472A3406
- Environmental Product Declaration - EPD
- 9AKK108472A1711
- Type of Low Voltage Distribution System
- TT; TN-C; TN-S
- Suitable For
- To protect the systems against the transient overvoltage (lightning)
- Nominal AC Voltage of the System (U o )
- 230 / 400 V
- Maximum Continuous Operating Voltage (U c )
- (L-PE) 275 V
- Temporary Overvoltage Test Value (U T )
- 337 V
- Rated Service Short-Circuit Breaking Capacity (I cs )
- 100 kA
- Discharge Current
- Nominal (8 / 20 µs) 20 kA; I (max, 8 / 20 µs) 80 kA
- Impulse Current
- I (imp, 10 / 350 µs, L-N) 6.25 kA
- Short Circuit Withstand Icc
- 100 kA
- Arrester Class
- II
- Number of Protected Poles
- 1
- Number of Poles
- 1P
- Number of Conductors
- 1
- Transmission Standard
- Optic
- Version
- Plug-in
- Product Type
- QS
- Options Provided
- Industry, commercial building
- Preventive Maintenance Feature
- Yes
- Status Indicator
- Yes
- Fuse Size
- 1 modular spacing
- Cross-Section ( A cross )
- Maximum Conductor Solid-Stranded 35 mm²; Maximum Conductor Flexible 25 mm²
- Rated Voltage (U r )
- 230 V AC
- Voltage Protection Level ( Up)
- 1.4 kV; (L-N) 1.4 kV
- Power Loss
- Total 28 mW
- Degree of Protection
- IP20
- Maximum Operating Altitude Permissible
- Without Derating 5000
- Width in Number of Modular Spacings
- 1
- Product Net Width
- 17.8 mm
- Product Net Height
- 88 mm
- Product Net Depth / Length
- 76.7 mm
- CQC Certificate
- 9AKK107680A1974
- Declaration
- 2CTC432056G1701
- Declaration of Conformity - CE
- 9AKK108466A4617
- Instructions and Manuals
- 2CTC432106M1701
- Mounting Type
- DIN-Rail
- ETIM 9
- EC000941 - Surge protection device for power supply systems
- UNSPSC
- 39121610
- eClass
- V11.0 : 27130805
- Object Classification Code
- 141DCC
- Standards
- IEC 61643-11 / EN 61643-11
- System configuration DC
- No
- System configuration IT
- No
- System configuration TN
- Yes
- System configuration TN-C
- No
- System configuration TT
- Yes
- System configuration other
- No
- Nominal discharge surge current (8/20)
- 20 kA
- Max. discharge surge current (8/20)
- 20 kA
- Nominal voltage AC
- 230 V
- Nominal voltage DC
- 320 V
- Max. continuous voltage AC
- 275 V
- Max. continuous voltage DC
- 350 V
- Voltage protection level L-N
- 1.4 kV
- Voltage protection level N-PE
- 1.4 kV
- Max. overcurrent protection device, series connection (fuse)
- 160 A
- Short-circuit breaking capacity (Isccr)
- 100 kA
- Integrated short-circuit protection
- No
- Integrated short-circuit protection selective to fuse gG
- 160 A
- Integrated backup fuse
- No
- Leakage-current free
- No
- Construction size
- 1 modular spacing
- Max. conductor cross section solid (solid, stranded)
- 35 mm²
- Max. conductor cross section flexible (fine-strand)
- 25 mm²
- With remote signalling contact
- No
- Signalling at the device
- Optical
- Category type 2
- Yes
- Country of origin
- Bulgaria
Standards & Compliance
- HS Code
- 8536.30
Cross References
- EAN 3660308525475
- SAP 1200641859
- Code 83054277
Product Documentation
