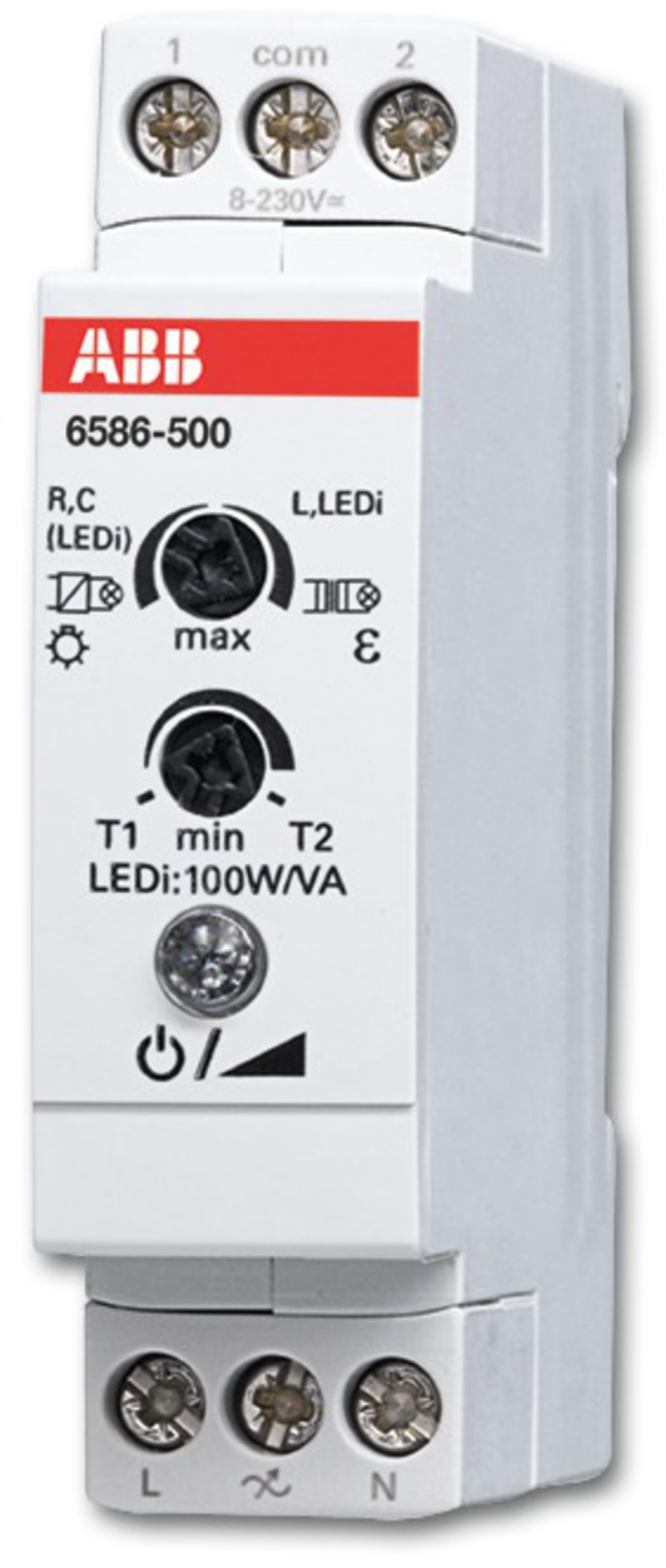

DIN UNIV. LED Dimmer 2-100VA

ABB 2CKA006590A0191 — Touch dimmer with local operation. Optimised for dimming of retrofit LED lamps (LEDi). For dimmable Retrofit-LEDs (LEDi). For dimmable Retrofit-LEDs (LEDi) with conventional or electronic transformers. For incandescent lamps, 230V tungsten halogen lamps and low-voltage halogen lamps with conventional transformers or electronic transformers and dimmable halogen energy-saving lamps. Mix operaton of LEDi with conventional loads possible. With the following functions: memory, snooze, wake-up, childrens room, central off, cleaning light and time function. For staircase lighting control with automatic switch-off and warning function according to DIN 18015-2. Supports the adherence to the energy saving ordinance (EnEV 2014). Low-noise level by MOSFET transistors. With electronic short-circuit protection. With electronic overload protection. With manually adjustable operating mode: trailing / leading edge control. With adjustable minimum/maximum brightness. With light value storage. Operation also possible via conventional push buttons (2020 US, 2021/6 UK). Extension unit input for short switching pulses (push-button) and continuous contact (switch/timer). Extension unit input designed as wide voltage input (8-230 V AC/DC) galvanic isolation. Nominal power: 2 - 100 W/VA (retrofit LED loads). Nominal power: 10 - 200 W/VA (non-LED loads). Rated frequency: 50 Hz/60 Hz.

Manufacturer part number (MPN)

2CKA006590A0191 EAN / GTIN: 4011395208519 HS code: 8536.90 Sales unit: pcs Instructions and Manuals: DEBJE-6590-0-0191 Mounting Type: DIN-Rail Type of Fastening: Snapper Mounting Ambient Air Temperature: Operation 0 ... +35 °C Degree of Protection: IP20 Application: Dimmable Retrofit-LEDs (LEDi) Terminal Type: Screw Terminals Actuator Type: Pushbutton Rated Voltage (U r ): 230 V Rated Control Supply Voltage (U s ): 8 ... 230 V AC/DC Rated Frequency (f): 50 / 60 Hz Load Type: Universal and LED Retrofit; LEDi; Incandescent Lamp; Halogen Lamp, High Voltage; Halogen Lamp, Low Voltage Power Loss: 0.5 W; Total 1 W Power Watt: 2...100 V·A Control Supply Voltage: 8...230 V Surface Finishing: Untreated; Matt material: Thermoplastic RAL Number: Similar to RAL 7035 Color: grey Number of Modules: 1 Width in Number of Modular Spacings: 1 Product Net Width: 65 mm Product Net Height: 74 mm Product Net Depth / Length: 18 mm Dimension Diagram: 2CKA000097E0732 Declaration of Conformity - CE: 2CKA100000E1708 EU Data Act Applicability and Compliance: Not Applicable ETIM 9: EC000025 - Dimmer eClass: V11.0 : 27144014

HS Code

8536.90

• EAN 4011395208519
• SAP 1000724249
• Code 8708889
