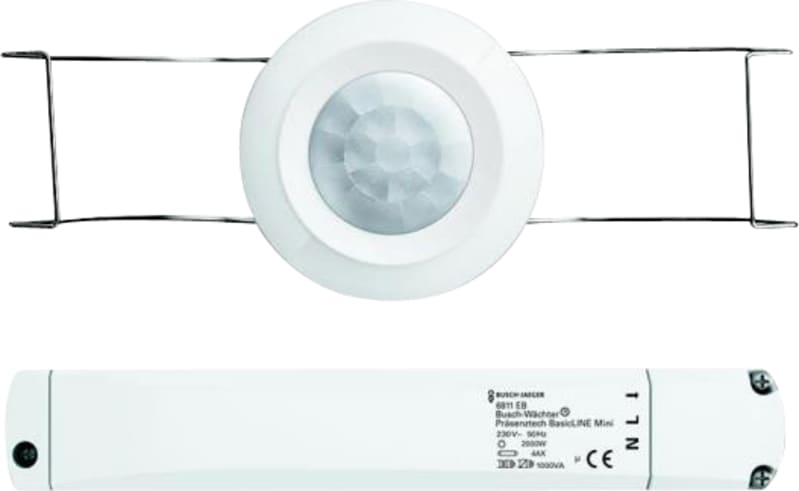

ABB 6811 EB BasicLINE Mini Presence Detector 230 V 2000 W IP20

ABB 6811 EB is a mini passive-infrared presence detector from the BasicLINE range for recessed lighting-control installations. Rated 230 V AC 50 Hz with a maximum switching load of 2000 W incandescent or 1000 W transformed low-voltage halogen, and 400 VA for fluorescent lamps. Detection range 6 m across a 360° horizontal field with an illuminance range of 10-1000 lx, and switch-on delay of 60 s. Screw terminals, IP20 protection and operating range 0-45 °C.

Manufacturer part number (MPN)

6811 EB EAN / GTIN: 4011395133323 Sales unit: pcs Instructions and Manuals: 2CKA000173B7329 Wiring Diagram: 2CKA000097E0090; 2CKA000097E0131; 2CKA000097E0145 Mounting Type: Built-in Mounting Height: Optimum 2 m Modular Components Included: Complete Device Ambient Air Temperature: 0 ... 45 °C; Operation 0 ... +45 °C Degree of Protection: IP20 Measuring Range: 6 m Number of Outputs: 1 Number of Switching Zones: 76 minimum Switching Time: Switch-On 60 s Product Type: Mini Sensor Type: Passive Infrared Illuminance: 10 ... 1000 lx Terminal Type: Screw Terminals Sensor Detection Range: 360 °; Horizontal 360 ... 360 ° Rated Voltage (U r ): 230 V AC Input Voltage Type: AC Current Range: 80 A Rated Frequency (f): 50 ... 50 Hz Maximum Switching Power: 2000 W; Fluorescent Lamp 400 V·A; Halogen Low Voltage Lamps with Electronical Transformers (Capacitive Loads) 1000 V·A; Halogen Low Voltage Lamps with Magnetic Transformers (Inductive Loads) 1000 V·A; Incandescent Lamp or Halogen High Voltage Lamps 1000 W Load Type: Incandescent Lamp; Halogen Lamp, High Voltage; Halogen Lamp, Low Voltage; Fluorescent Lamp Power Loss: 1.5 W; Total 2 W Design Range: BasicLINE Surface Finishing: Matt; Untreated material: Plastic; Thermoplastic RAL Number: Similar to RAL 9010 Color: white Product Net Width: 38 mm Product Net Height: 38 mm Product Net Depth / Length: 80 mm Built-In Depth ( t 2 ): 205 mm Dimension Diagram: 2CKA000097E0264 Building Information Modeling – BIM: 2CKA110002E3957 Declaration of Conformity - CE: 2CKA100000E1982 EU Data Act Applicability and Compliance: Not Applicable ETIM 9: EC000133 - Movement sensor/presence detector complete eClass: V11.0 : 27144007 Nominal voltage: 230 V Colour: White Width: 38 mm Model: Presence detector Halogen free: Yes Height: 38 mm Depth: 80 mm Connection type: Screwed terminal Surface protection: Untreated Creep-under protection: Yes Voltage type: AC Frequency: 50 Hz With remote control: No Diameter: 38 mm Suitable for wall mounting: No Built-in width: 27 mm Built-in diameter: 32 mm Staircase light controller: Yes Bridging switch: No Suitable for wireless transmission: No material quality: Thermoplastic Max. reach frontally: 3 m Max. reach sideways: 3 m Max. switching power: 2000 W Temperature: 0–45 °C Max. starting current: 80 A Ambient temperature: 0–45 °C Response value sensitivity adjustable: Yes Dim function with dimmer basic element: No Response value luminosity: 10–1000 lx Suitable for C-load: Yes Diameter reach on floor: 6 m Remote operation: No HVAC-control: No Constant light control: No Substation input: No With signal unit: No Teach-function for response value luminosity: No Networkable: No Forced switch off: No Scan angle: 360 ° Built-in length: 205 mm With alarm function: No Transparent: No Animal zone: No Detection angle horizontal: 360 ° Min. switch-on time: 60 s Max. duty cycle: 15 min Response value luminosity adjustable: Yes Optimum mounting height: 2 m Constant light output (CLO): No With DALI interface: No IFTTT support available: No Forced switch on: No Min. starting current: 0.01 A Min. depth of built-in installation box: 205 mm Max. presence range: 1.75 m² Compatible with Apple HomeKit: No Compatible with Google Assistant: No Compatible with Amazon Alexa: No Movement sensor/presence detector technology: Passive infrared Suitable for ceiling mounting: Yes Anti-bacterial treatment: No Device emplacement: Indoor and outdoor positioning Country of origin: China

HS Code

8536.50

• EAN 4011395133323
• SAP 1000322197
• Code 8348914
