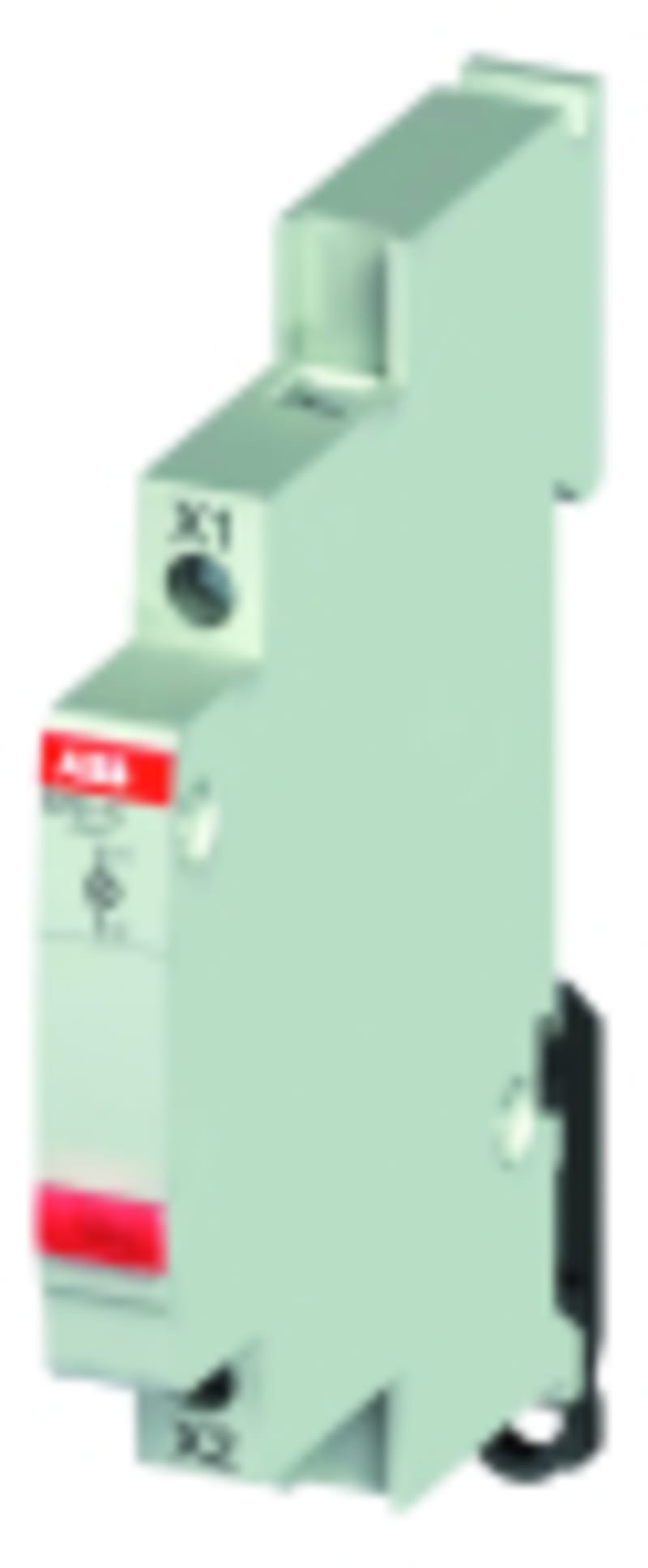

ABB Indicator light with maintenance-free LED, LED colour: red 115-250 VACPDC, 12-48 VACDCPDC, 110-220 VDCPDC Module width 0,5 2CCA703406R0001
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CCA703406R0001 — Indicator light with maintenance-free LED, LED colour: red 115-250 VACPDC, 12-48 VACDCPDC, 110-220 VDCPDC Module width 0,5.
Technical Specifications
- Manufacturer part number (MPN)
- 2CCA703406R0001
- EAN / GTIN
- 7612270939343
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Number of LEDs
- 1
- Tightening Torque
- 1.2-1.5 N·m
- Lamp Type
- LED
- Switch Type
- Double Interrupting Contacts
- Material of Conductor
- Copper
- Remarks
- Sealable in the On and Off positions
- Cover Color
- Red
- Lamp Color
- Red
- Connecting Capacity
- Solid 1x1…6 mm²; Solid 2x2.5 mm²; Flexible 1x0.75…2x2.5 mm²
- Service Life
- LED Indicator 50000 hour
- Short-Circuit Current Rating (SCCR)
- 3 kA
- Rated Voltage (U r )
- 230 V
- Rated Operational Voltage
- 220 V
- Rated Insulation Voltage (U i )
- 250 V
- Voltage Range
- 60 ... 220 V DC
- Rated Impulse Withstand Voltage (U imp )
- 4 kV
- Auxiliary Voltage AC/DC
- LED Indicator 60…220 V AC
- Input Voltage Type
- DC
- Rated Current (I n )
- 16 A
- Rated Frequency (f)
- 50/60 Hz
- Power Loss
- Total 0.47-1 W
- Power Watt
- 1 W
- Color
- Red
- Ambient Air Temperature
- Operation -25...+55 °C; Storage -40...+70 °C
- Degree of Protection
- IP20
- Environmental Information
- 2CCC441002C0201
- Width in Number of Modular Spacings
- 0.5
- Product Net Width
- 9 mm
- Product Net Height
- 85 mm
- Product Net Depth / Length
- 68 mm
- Built-In Depth ( t 2 )
- 59 mm
- EPLAN Data
- 9AAC407653_EPLAN
- CB Certificate
- 9AKK108466A3847
- Declaration of Conformity - CE
- 2CCC441015D0201
- Declaration of Conformity - UKCA
- 9AKK108467A6138
- VDE Certificate
- 9AKK108466A3837
- ETIM 9
- EC001657 - Indicator light for distribution board
- UNSPSC
- 39121534
- eClass
- V11.0 : 27142324
- Object Classification Code
- P
- Standards
- EN60068-2-1; EN60068-2-2; EN60068-2-30; DIN EN 62094-1; UL508
- Colour calotte
- Red
- Max. lamp power
- 1 W
- Voltage type
- DC
- Country of origin
- Switzerland
