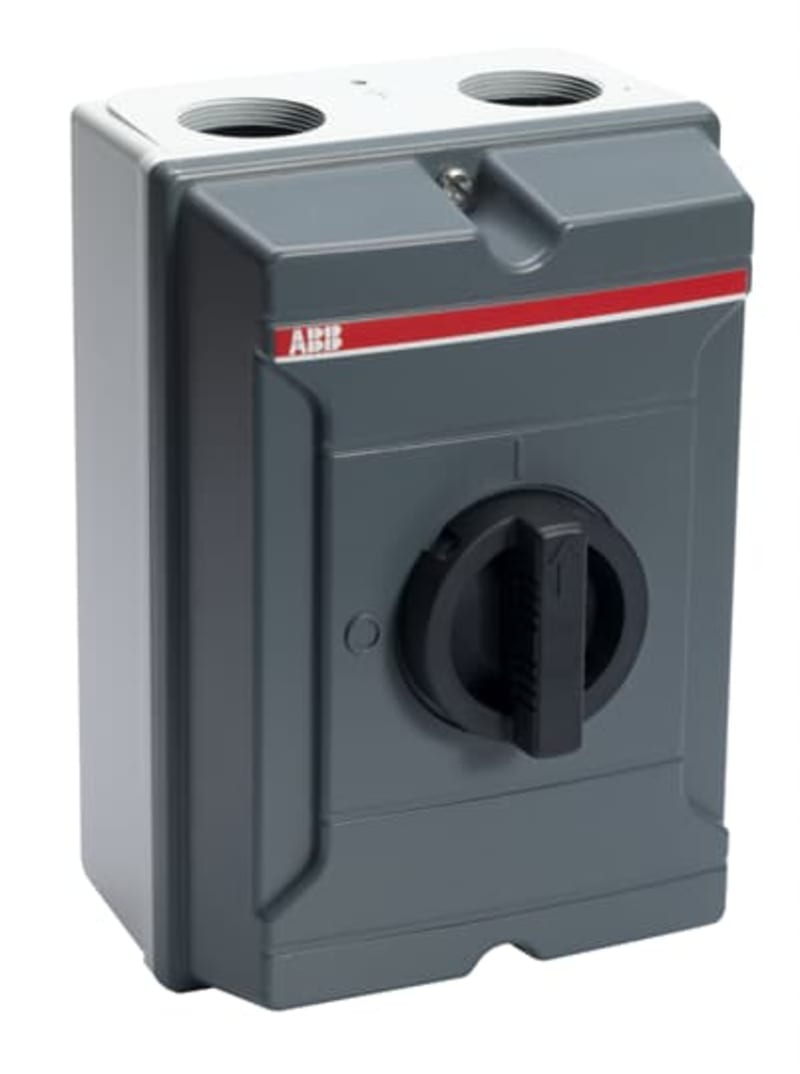

Enclosed Switch-disconnector KSE380TPN

ABB 2CMA144583R1000 — Encl. Switch Disconnector, 3-p. 415V AC23 75A, 37kW. Aluminium enclosure. IP65. Black Round handle. Interlocked cover. The dye casted aluminum alloy (silumin) enclosure is extremely rigid, and well suited for harsh environment. The surface is polyester coated and well protected from corrosion. Installation is made easy, thanks to the easy access to terminals, screwed cover and with the grommet type of glands included (IP54). The cover is interlocked, and handle padlockable with two padlocks. The handle can also be padlocked in On position, by removing two small plastic bits. N and PE terminals included. The switches can be used in EMC environment, when used together with EMC cable glands.

Manufacturer part number (MPN)

2CMA144583R1000

EAN / GTIN

7392696445832

Sales unit

pcs

Degree of Protection

acc. to IEC 60529 IP65

Product Net Width

160 mm

Product Net Height

230 mm

Product Net Depth / Length

118 mm

Cable Cross-Section

1.5 ... 35 mm²

Cable Entry Position

Top/Bottom

Cable Outlets Per Side

2xM40 / 2xM40+M16

Color

RAL7012 / RAL7035

Connecting Capacity Main Circuit

Screw Clamp 1.5 ... 35 mm²; Screw Clamp / PE Terminal 1pc 6 ... 35 mm²

Conventional Free-air Thermal Current (I th )

80 A

Conventional Thermal Current (I the )

Fully Enclosed 80 A

Enclosure Material

Aluminium

Handle Color

Black

Handle Type

Round

Impact Resistance Rating

Housing IK08

Maximum Mounted Auxiliary Contacts

2 NO, 2 NC

Mounted Auxiliary Contacts

0 NO, 0 NC

Neutral Type

Fixed Neutral

Number of Auxiliary Contacts NC

0

Number of Auxiliary Contacts NO

0

Number of Poles

3P

Power Loss

at Rated Operating Conditions per Pole 2.8 W; Total 8.4 W

Protection Type

Watertight

Rated Conditional Short-Circuit Current (I nc )

13 kA

Rated Insulation Voltage (U i )

acc. to IEC/EN 60664-1 750 V

Rated Operational Current AC-21A (I e )

(400 V) 80 A; (500 V) 80 A; (690 V) 80 A

Rated Operational Current AC-22A (I e )

(380 ... 415 V) 80 A; (500 V) 80 A; (690 V) 80 A

Rated Operational Current AC-23A (I e )

(380 ... 415 V) 75 A; (500 V) 58 A; (690 V) 20 A

Rated Operational Power AC-23A (P e )

(380 ... 415 V) 37 kW; (500 V) 37 kW; (690 V) 18.5 kW

Rated Operational Voltage

Main Circuit 750 V

Rated Short-Circuit Making Capacity (I cm )

(690 V AC) 2.1 kA

Rated Short-time Withstand Current Low Voltage (I cw )

for 1 s 1.5 kA; for 0.2 s 1.5 kA

Recommended Screw Driver

Main Circuit Pozidriv 2

Special Functions

EMC

Standards

IEC 60947-1, -3

Terminal Type

Screw Terminals

Tightening Torque

Main Circuit 2 N·m

Wire Stripping Length

13 mm

Declaration of Conformity - CE

1SCC340062D2702

Object Classification Code

Q; 2CMT005069

ETIM 9

EC000216 - Switch disconnector (low voltage)

ETIM 10

EC000216 - Switch disconnector (AC)

UNSPSC

39122205

IDEA Granular Category Code (IGCC)

5166 >> Safety switch

eClass

V11.1 : 27371403

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm)

E-Number (Norway)

1428738

HS Code

8536.30

• EAN 7392696445832
• SAP 1200640409
• Code 83057523
