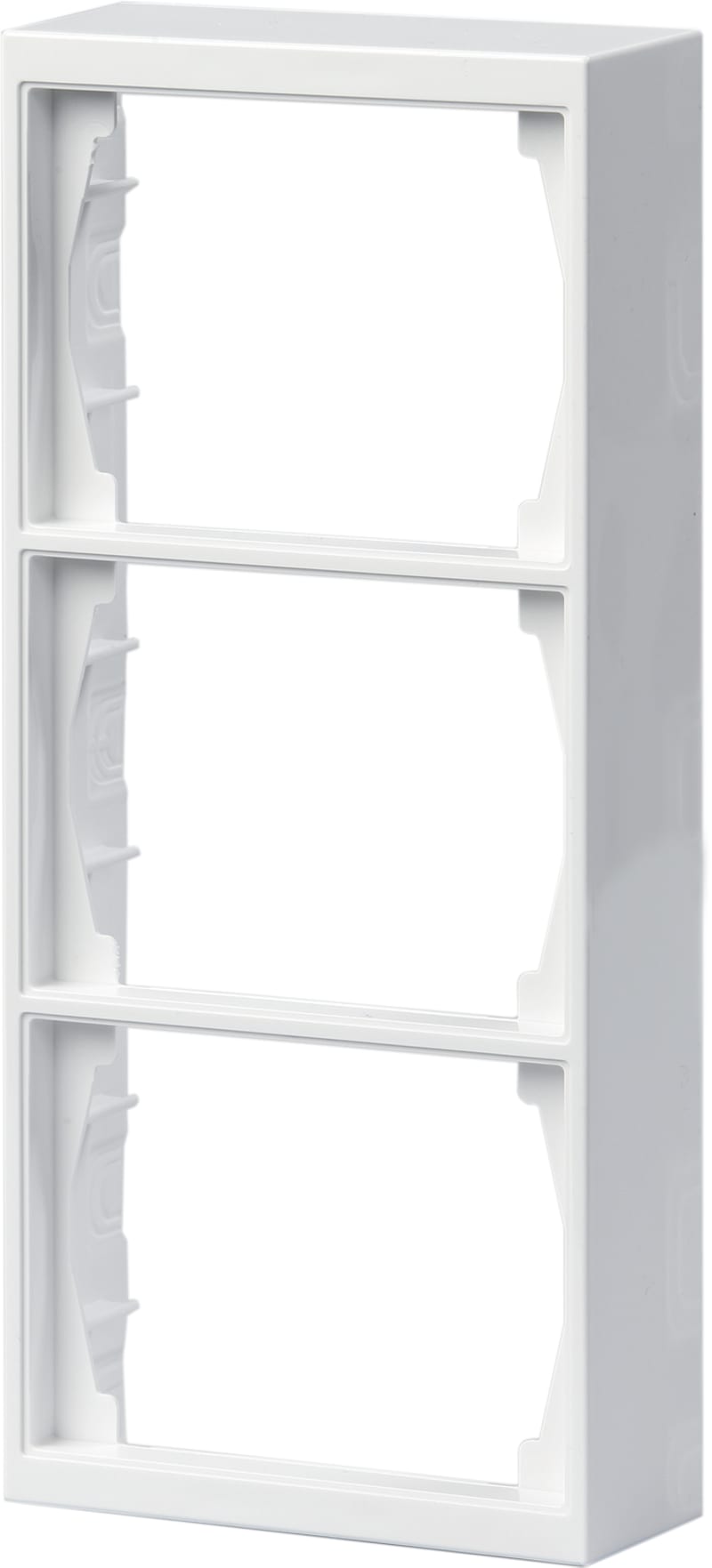

Impressivo 3-H KAP without BOX 40/100 White
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2TKA000381G1 — Impressivo flush mounting products are able to be surface mounted with surface mounting frames and surface mounting box (2456.26). Using center plates with lid the socket outlets are water protected (IP44). The switches and push switches are also water protected (IP44) when using screw mounted rocker frames (2474 or 2475). In the cases of the other products than socket outlets and switches the water protection depends on the water protection of the center plate. The manufacture material is a durable high quality plastic. The surface is glossy and easy to keep clean. Cleaning with a mild, standard household detergent. Be careful when cleaning with a powerful dissolvent.
Technical Specifications
- Manufacturer part number (MPN)
- 2TKA000381G1
- EAN / GTIN
- 6418677331213
- Sales unit
- pcs
- Package quantity
- 25 pcs
- Mounting Orientation
- Horizontal; Vertical
- Degree of Protection
- IP21
- Environmental Information
- 9AKK107680A2951
- Design Range
- Impressivo
- Shape
- Rectangular
- Surface Finishing
- Surface protection: Untreated; Surface finishing: Glossy
- Material
- Plastic, Thermoplastic
- RAL Number
- RAL 9016 - Traffic White
- Color
- White
- Number of Gangs
- 3-gang
- Product Net Width
- 40 mm
- Product Net Height
- 100 mm
- Product Net Depth / Length
- 227 mm
- Dimension Diagram
- 9AKK108470A8028
- EU Data Act Applicability and Compliance
- Not Applicable
- ETIM 9
- EC000080 - Surface mounted box for flush-mounted switching equipment
- Assembly arrangement
- Surface mounted frame
- Colour
- White
- Width
- 40 mm
- Halogen free
- Yes
- Height
- 100 mm
- Depth
- 227 mm
- Number of units
- 3
- Shock resistant
- No
- Surface protection
- Untreated
- With cable entry
- No
- Material quality
- Thermoplastic
- Number of inlets
- 2
- With cover frame
- No
- Mounting direction
- Horizontal and vertical
- Inlet from the rear
- Yes
- Transparent
- No
- With screw gland entry
- No
- With duct entry
- No
- Device width
- 40 mm
- Device height
- 100 mm
- Device depth
- 227 mm
- Number of modules (module system)
- 1
- Suitable for modular domestic switching devices
- No
- Desktop device
- No
- Cross-trunking mounting
- No
- With installation tube entry
- Yes
- Suitable for mounting over existing flush-mounted box
- Yes
- Country of origin
- Finland
Standards & Compliance
- HS Code
- 8538.90
