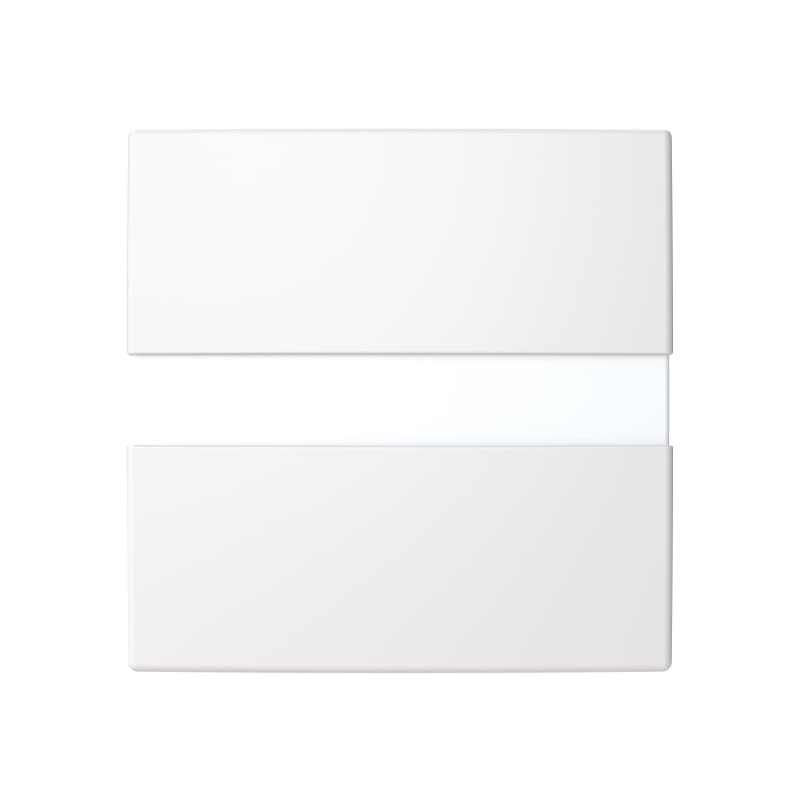

SAGA FLEX Front Komfortswitch

ABB 2CKA006800A3107 — Movement detector push-button switch combination.For switching lighting systems that depend on brightness and movement. With select lens, prevents detection of smaller animal.Push switch function possible at all times. With notice LED when manual operation is necessary.Extension of the detection range by main unit/extension unit combination.Control element: 2 controllers for setting the brightness switching threshold and switch-off delay.Additional activation/deactivation option via push-button input on the flush-mounted insert.Adjustable operating mode: automatic mode, automatic (motion-controlled) switch-on and switch-off.Adjustable operating mode: semiautomatic, manual switch-on, automatic (timer and movement-controlled) switch-off.Adjustable operating mode: automatic mode, automatic switch-on, manual switch-off.With continuous light/continuous Off function.Adjusting elements on rear side.Surveillance density: 9 sectors with 28 switching segments.Switch off delay: 1 to 10 min., adjustable.Compatible with all ABB flexTronics inserts.For relay insert flex, 1gang, 64811 U-500For relay insert flex, 2gang, 64821 U-500.For e-contact insert flex, 1gang, 64814 U-500.For LED touch dimmer insert flex, 1gang, 64851 U-500.For extension insert flex, 64891 U-500.Display elements: LED for status display.Control element: 2 controllers for setting the brightness switching threshold and switch-off delay.Brightness limit value: 5 Lux - daytime operationHight above the wall: 21 mm.The range specifications refer only to an ambient temperature of 21°C.Please order the respective flush-mounted insert separately.

Manufacturer part number (MPN)

2CKA006800A3107 EAN / GTIN: 4011395321614 Sales unit: pcs Package quantity: 10 pcs Mounting Type: Flush-mounted Mounting Position: Wall Mounting Height: Maximum 0.8 m; minimum 1.2 m; Optimum 1.1 m Modular Components Included: Cover Plate Ambient Air Temperature: Operation -5 ... +45 °C; Storage -25 ... +70 °C Degree of Protection: IP20 Data Sheet, Technical Information (Part 2): 2CKA000073B5216 Product Range: flexTronics; free@home; KNX minimum Switching Time: Switch-On 60 s Lamp Type: LED Orientation light Product Type: Select lens Sensor Type: Passive Infrared Manual Operation: Yes Sensor Detection Range: Horizontal 170 ... 170 °; Tangential 5 m Motion Detector Features: Animal Zone Design Range: Saga Surface Finishing: Untreated; Glossy material: Plastic; Thermoplastic RAL Number: Similar to RAL 9003 Color: white Product Net Width: 55.5 mm Product Net Height: 55.5 mm Product Net Depth / Length: 32.13 mm Dimension Diagram: 2CKA000097E4118 Environmental Product Declaration - EPD: 9AKK108472A4242 Declaration of Conformity - CE: 2CKA100000E4789 EU Data Act Applicability and Compliance: Not Applicable ETIM 9: EC000534 - Automatic controller for light controlling system ETIM 10: EC000534 - Controller for light controlling system eClass: V11.0 : 27144008 Mounting method: Flush-mounted Device width: 55.5 mm Device height: 55.5 mm Device depth: 32.13 mm IFTTT support available: No Compatible with Apple HomeKit: No Compatible with Google Assistant: No Compatible with Amazon Alexa: No Metallic colour: No Country of origin: Germany

HS Code

8536.50

• EAN 4011395321614
• SAP 1200706254
• Code 83752080
