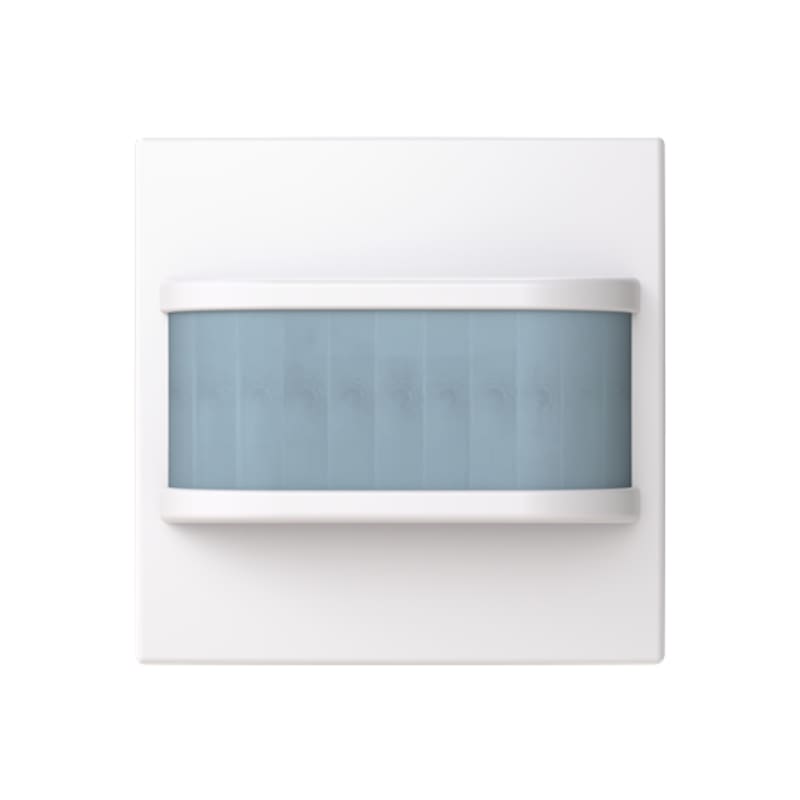

SAGA FLEX Sensorlinse Basic

ABB 2CKA006800A3057 — Movement detector sensor with measurement of ambient light. For automatic switching of devices dependent on motion and brightness../. Compatible with all free@home flex inserts. Adjusting elements on rear side. Extension of the detection range by means of master/slave combination. With brightness-independent test mode for evaluating the detection zone. With detection display in test mode. Surveillance density: 14 sectors with 56 switching segments. Switch-off delay: approx. 10 sec - 30 min or short-time pulse 1 sec adjustable. For relay insert flex, 1gang, 64811 U. For e-contact insert flex, 1gang, 64814 U. For series relay insert flex, 2gang, 64821 U. For LED touch dimmer insert flex, 1gang, 64851 U. For extension insert flex, 64891 U. Mounting height: 22 mm.

Manufacturer part number (MPN)

2CKA006800A3057 EAN / GTIN: 4011395316344 Sales unit: pcs Mounting Type: Flush-mounted Mounting Height: Maximum 2.2 m Ambient Air Temperature: Operation -5 ... +45 °C Degree of Protection: IP20 Data Sheet, Technical Information (Part 2): 2CKA000073B5216 Product Range: flexTronics minimum Switching Time: Switch-On 10 s Connection Type: Pin Sensor Type: Passive Infrared Manual Operation: No Sensor Detection Range: 180 °; Horizontal 0 ... 180 ° Motion Detector Features: Animal Zone Design Range: Saga material: Plastic; Thermoplastic Color: black Product Net Width: 55 mm Product Net Height: 55 mm Product Net Depth / Length: 28 mm Dimension Diagram: 2CKA000097E4119 Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 42.5 % ABB Site Meeting Group Waste To Landfill Target: Non-hazardous waste is sent to a landfill, where there is no alternative option available within 100km of a facility; UL 2799 Zero Waste To Landfill Validation available Extended Product Lifetime: Product Durability; Product Modularity; Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services Offered with Takeback Services: Take Back for Recycling Environmental Product Declaration - EPD: 9AKK108472A4243 Declaration of Conformity - CE: 2CKA100000E4784 EU Data Act Applicability and Compliance: Not Applicable ETIM 9: EC000138 - Sensor element for movement sensor ETIM 10: EC000138 - Sensor element for movement sensor/presence detector eClass: V11.0 : 27144008 Colour: Black Model: Movement sensor Halogen free: No Creep-under protection: No With movement sensor: Yes Staircase light controller: No Suitable for wireless transmission: No With light sensor: Yes material quality: Thermoplastic Max. reach frontally: 12 m Max. reach sideways: 12 m Dim function with dimmer basic element: No HVAC-control: No Constant light control: No RAL-number (similar): 9003 Teach-function for response value luminosity: No Networkable: Yes Operation mode switch: No Animal zone: Yes Detection angle horizontal: 0–180 ° Min. switch-on time: 10 s Max. duty cycle: 30 min Suitable for degree of protection (IP): IP20 Response value luminosity adjustable: Yes Switch-off delay self-learning: No With orientation lighting: No IFTTT support available: No Compatible with Apple HomeKit: No Compatible with Google Assistant: No Compatible with Amazon Alexa: No Combination movement sensor/push button switch: No Country of origin: Germany

HS Code

8538.90

• EAN 4011395316344
• SAP 1200706247
• Code 83752065
