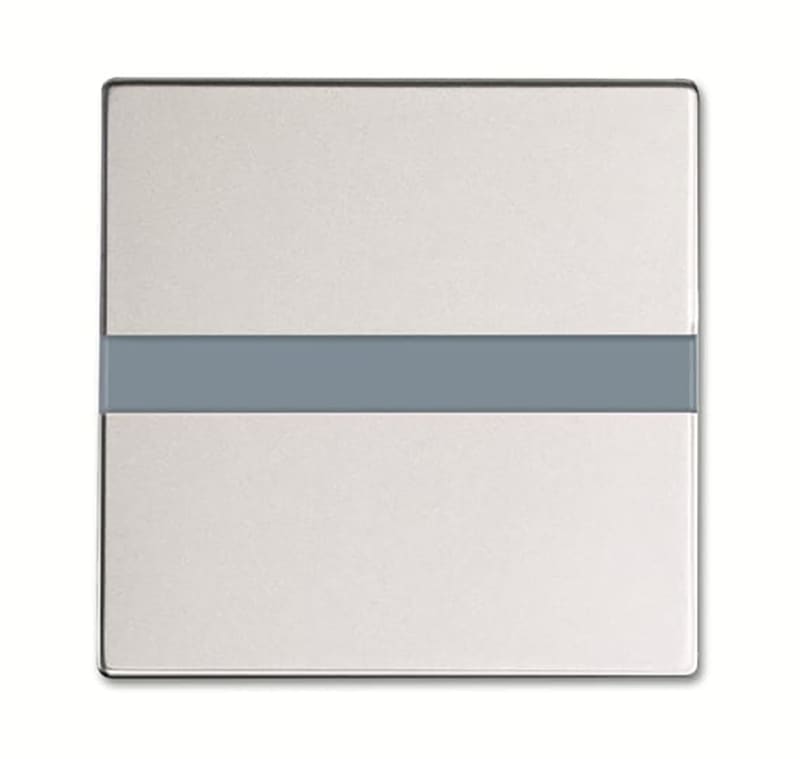

FLEX Front Komfortswitch Aluminium

ABB 64765-83-500 — Movement detector push-button switch combination.For switching lighting systems that depend on brightness and movement. With select lens, prevents detection of smaller animal.Push switch function possible at all times. With notice LED when manual operation is necessary.Extension of the detection range by main unit/extension unit combination.Control element: 2 controllers for setting the brightness switching threshold and switch-off delay.Additional activation/deactivation option via push-button input on the flush-mounted insert.Adjustable operating mode: automatic mode, automatic (motion-controlled) switch-on and switch-off.Adjustable operating mode: semiautomatic, manual switch-on, automatic (timer and movement-controlled) switch-off.Adjustable operating mode: automatic mode, automatic switch-on, manual switch-off.With continuous light/continuous Off function.Adjusting elements on rear side.Surveillance density: 9 sectors with 28 switching segments.Switch off delay: 1 to 10 min., adjustable.Compatible with all ABB flexTronics inserts.For relay insert flex, 1gang, 64811 U-500For relay insert flex, 2gang, 64821 U-500.For e-contact insert flex, 1gang, 64814 U-500.For LED touch dimmer insert flex, 1gang, 64851 U-500.For extension insert flex, 64891 U-500.Display elements: LED for status display.Control element: 2 controllers for setting the brightness switching threshold and switch-off delay.Brightness limit value: 5 Lux - daytime operationHight above the wall: 21 mm.The range specifications refer only to an ambient temperature of 21°C.Please order the respective flush-mounted insert separately.

Manufacturer part number (MPN)

64765-83-500 EAN / GTIN: 4011395293072 Sales unit: pcs Instructions and Manuals: 2CKA000073B5200; 2CKA000073B5201; 2CKA000073B5202; 2CKA000073B5206; 2CKA000073B5207; 2CKA000073B5210 Mounting Type: Flush-mounted Mounting Position: Wall Mounting Height: Maximum 0.8 m; minimum 1.2 m; Optimum 1.1 m Modular Components Included: Cover Plate Ambient Air Temperature: Operation -5 ... +45 °C; Storage -25 ... +70 °C Degree of Protection: IP20 Data Sheet, Technical Information (Part 2): 2CKA000073B5216 Product Range: flexTronics; free@home; KNX minimum Switching Time: Switch-On 60 s Lamp Type: LED Orientation light Product Type: Select lens Sensor Type: Passive Infrared Manual Operation: Yes Sensor Detection Range: Horizontal 170 ... 170 °; Tangential 5 m Motion Detector Features: Animal Zone Design Range: Platform 63; future linear; Busch-axcent Design Range Variant: Busch-axcent; Busch-axcent pur Surface Finishing: Lacquered; Matt material: Plastic; Thermoplastic RAL Number: Similar to RAL 9006 Color: aluminium silver Product Net Width: 63 mm Product Net Height: 63 mm Product Net Depth / Length: 32 mm Declaration of Conformity - CE: 2CKA100000E4485 EU Data Act Compliance Declaration: 9AKK108471A4355 EU Data Act Applicability and Compliance: Applicable - Compliant ETIM 9: EC000138 - Sensor element for movement sensor ETIM 10: EC000138 - Sensor element for movement sensor/presence detector eClass: V11.0 : 27144008 Colour: Aluminium Model: Movement sensor Halogen free: Yes Creep-under protection: No With movement sensor: Yes Staircase light controller: No Suitable for wireless transmission: No With light sensor: Yes material quality: Thermoplastic Max. reach frontally: 5 m Max. reach sideways: 3 m Response value sensitivity adjustable: No Dim function with dimmer basic element: Yes HVAC-control: No Constant light control: No Teach-function for response value luminosity: No Networkable: Yes Operation mode switch: Yes Animal zone: Yes Detection angle horizontal: 170 ° Min. switch-on time: 60 s Max. duty cycle: 10 min Suitable for degree of protection (IP): IP20 Response value luminosity adjustable: Yes Switch-off delay self-learning: No With orientation lighting: Yes IFTTT support available: No Compatible with Apple HomeKit: No Compatible with Google Assistant: No Compatible with Amazon Alexa: No Combination movement sensor/push button switch: Yes Country of origin: Germany

HS Code

8538.90

• EAN 4011395293072
• SAP 1200681880
• Code 83539779
