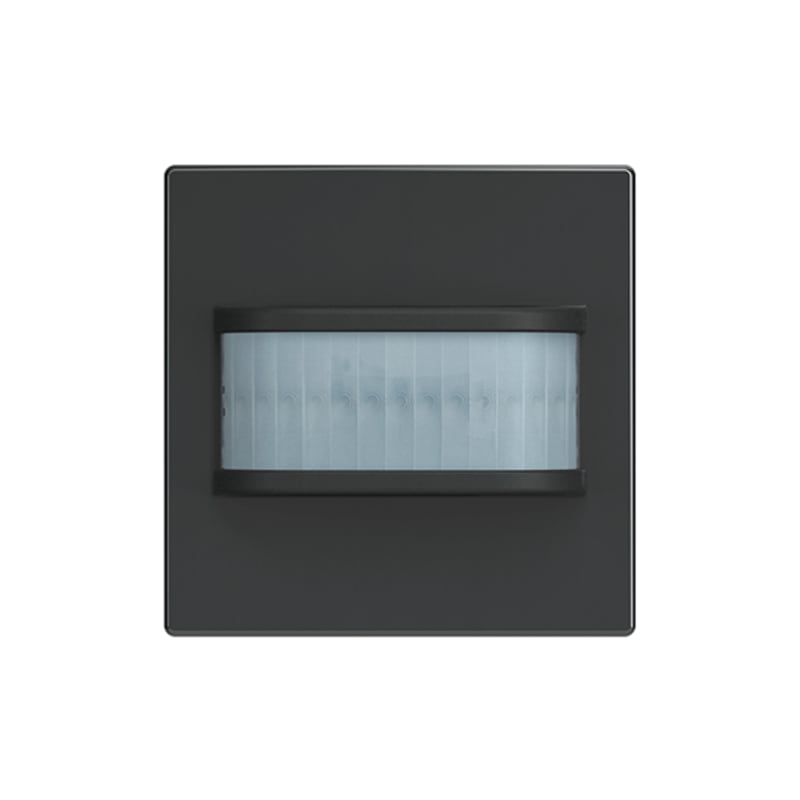

FLEX PIR180 Sensor Comfort IMPR. Black Matte

ABB 2CKA006800A2970 — Movement detector sensor with measurement of ambient light. For automatic switching of devices dependent on motion and brightness. Push switch function possible at all times../. In combination with dimmer insert flex: dimming function of lighting and selectable light value storage. With enabling of pre-warning of switch-off for stairwell operation. Compatible with all free@home flex inserts. Adjusting elements on rear side. Extension of the detection range by means of master/slave combination. With continuous light/continuous Off function. With brightness-independent test mode for evaluating the detection zone. With detection display in test mode. Surveillance density: 14 sectors with 56 switching segments. Switch-off delay: approx. 10 sec - 30 min or short-time pulse 1 sec adjustable. For relay insert flex, 1gang, 64811 U. For e-contact insert flex, 1gang, 64814 U. For series relay insert flex, 2gang, 64821 U. For LED touch dimmer insert flex, 1gang, 64851 U. For extension insert flex, 64891 U. Mounting height: 22 mm.

Manufacturer part number (MPN)

2CKA006800A2970 EAN / GTIN: 4011395293584 HS code: 8536.90 Sales unit: pcs Instructions and Manuals: 2CKA000073B5100; 2CKA001373B5203 Mounting Type: Flush-mounted Mounting Height: Maximum 1.2 m Modular Components Included: Cover Plate Ambient Air Temperature: Operation -5 ... +45 °C Degree of Protection: IP20 Data Sheet, Technical Information: 2CKA000073B5216 Product Range: flexTronics; free@home; KNX minimum Switching Time: Switch-On 10 s Connection Type: Pin Manual Operation: Yes Sensor Detection Range: 180 °; Horizontal 0 ... 180 ° Motion Detector Features: Animal Zone Design Range: Platform 63; future linear; Busch-axcent; carat Design Range Variant: future linear - matt; Busch-axcent; Busch-axcent pur Surface Finishing: Lacquered; Matt material: Plastic; Thermoplastic RAL Number: Similar to RAL 9005 Color: black matt Product Net Width: 63 mm Product Net Height: 63 mm Product Net Depth / Length: 35 mm Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 42.5 % ABB Site Meeting Group Waste To Landfill Target: Non-hazardous waste is sent to a landfill, where there is no alternative option available within 100km of a facility; UL 2799 Zero Waste To Landfill Validation available Extended Product Lifetime: Product Durability; Product Modularity; Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services Offered with Takeback Services: Take Back for Recycling Environmental Product Declaration - EPD: 9AKK108472A4243 Declaration of Conformity - CE: 2CKA100000E4293 EU Data Act Compliance Declaration: 9AKK108471A4355 EU Data Act Applicability and Compliance: Applicable - Compliant ETIM 9: EC000138 - Sensor element for movement sensor ETIM 10: EC000138 - Sensor element for movement sensor/presence detector eClass: V11.0 : 27144008

HS Code

8536.90

• EAN 4011395293584
• SAP 1200681871
• Code 83539802
