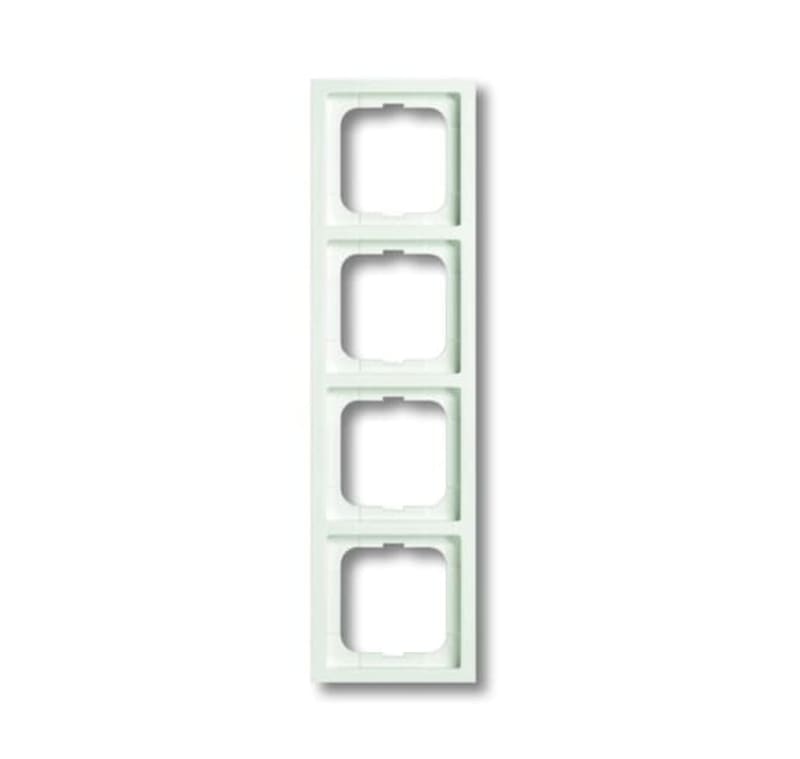

ABB 1724-884K with small corner radii for trunking systems.
Pricing
Request a quote
We reply within 24 hours
Overview
ABB 1724-884K with small corner radii for trunking systems. is listed under Electrical Components / Wiring Accessories. Sales unit: pcs; Package quantity: 10 pcs; Mounting Type: Flush Mounted; Type of Fastening: Clamp; Mounting Orientation: Horizontal; Vertical; Modular Components Included: Cover Frame.
Technical Specifications
- Manufacturer part number (MPN)
- 1724-884K
- EAN / GTIN
- 4011395128275
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Mounting Type
- Flush Mounted
- Type of Fastening
- Clamp
- Mounting Orientation
- Horizontal; Vertical
- Modular Components Included
- Cover Frame
- Degree of Protection
- IP20
- Options Available
- "basic"
- Design Range
- future linear; Platform 63
- Design Range Variant
- future linear - matt
- Surface Finishing
- Lacquered; Matt
- Material
- Plastic; Thermoplastic
- Label Space Provided
- Without Label Space
- RAL Number
- Similar to RAL 9016
- Color
- studio white matt
- Number of Gangs
- 4-gang
- Number of Modules
- Horizontal 4; Vertical 4
- Product Net Width
- 80 mm
- Product Net Height
- 293 mm
- Product Net Depth / Length
- 11 mm
- Dimension Diagram
- 2CKA000097E4156
- Building Information Modeling – BIM
- 9AKK108471A9963; 9AKK108471A9951
- EU Data Act Applicability and Compliance
- Not Applicable
- ETIM 9
- EC000007 - Cover frame for domestic switching devices
- eClass
- V11.0 : 27144001
- Colour
- White
- Width
- 80 mm
- Halogen free
- Yes
- Height
- 293 mm
- Depth
- 11 mm
- Number of units
- 4
- With hinged lid
- No
- Surface protection
- Lacquered
- Built-in height
- 63 mm
- Built-in width
- 63 mm
- Label space/information surface
- No
- Material quality
- Thermoplastic
- Mounting direction
- Horizontal and vertical
- Impact strength
- IK03
- Suitable for subfloor installation duct box
- No
- Transparent
- No
- Suitable for wall duct
- Yes
- Suitable for built-in installation
- No
- Flush-mounted installation
- Yes
- Number of units horizontal
- 4
- Number of units vertical
- 4
- Diameter bore hole (opening)
- 71 mm
- Number of modules horizontal (module system)
- 4
- Number of modules vertical (module system)
- 4
- With mounting grid
- No
- Number of switch inserts
- 4
- Anti-bacterial treatment
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4011395128275
- SAP 1000347540
- Code 8387338
Product Documentation
More from ABB
ABB
ABB 2CCA703902R0001 multi indicator light with 3 red, yellow, green LEDs Voltage range = 415-230 VACPDC Module width 0,5
ABB
Residual Current Circuit Breaker F202A 63A/300MA 16-2A/3HZ
2CSF202196R3630
ABB
Modular LOAD-Break Switch SD202/25
2CDD282101R0025
ABB
ABB VFI online double conversion,400V,13500W,RS232,USB,COM slot,includes battery links plus trays and shelves,up to 1X48X7/8/9 Ah blocks 4NWP103584A1500
ABB
ABB SACE Tmax XT4L 160 Moulded-Case Circuit Breaker — TMA 50-500, In=50 A, 3-Pole
1SDA068370R1
ABB
METER 3F A44 552-100
A44 552-100 Platin RS485
ABB

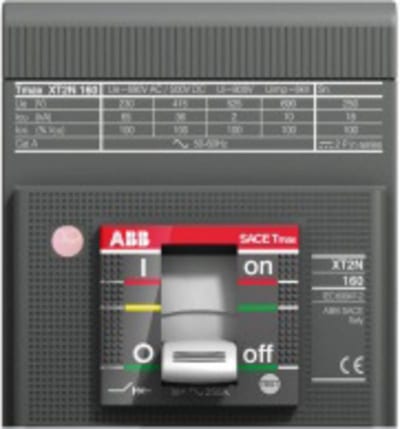

ABB SACE Tmax XT2S 160 Moulded-Case Switch-Disconnector — 3-Pole
1SDA068164R1
ABB

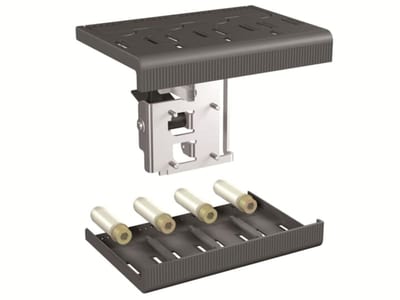

KIT P MP XT1 3P (1SDA066276R1)
