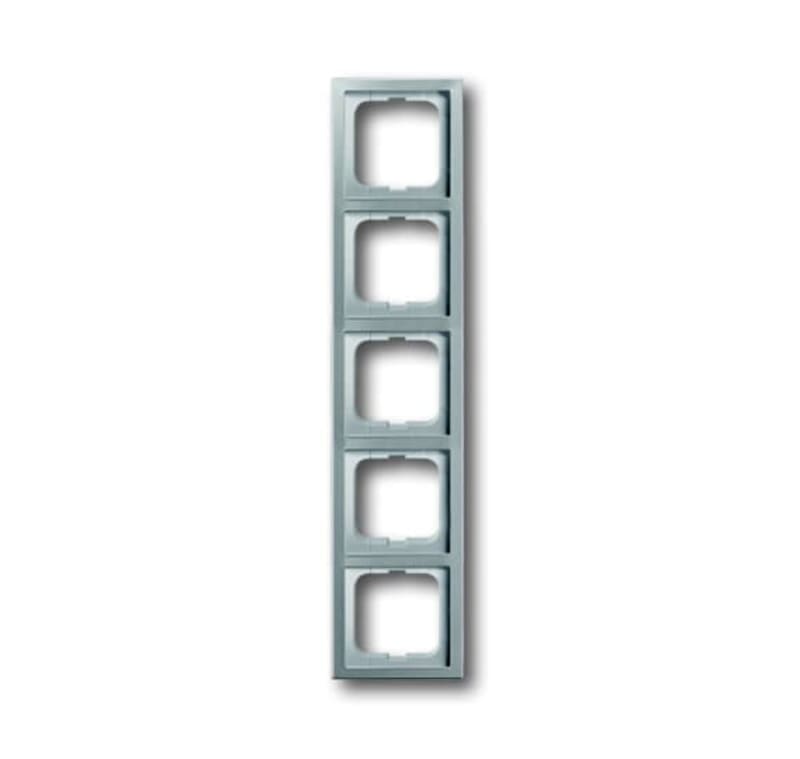

Frame 5-Hole, 80mm, PURE Steel
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CKA001754A4321 — For vertical or horizontal installation. Material stainless steel. Anti fingerprint.
Technical Specifications
- Manufacturer part number (MPN)
- 2CKA001754A4321
- EAN / GTIN
- 4011395088425
- Sales unit
- pcs
- Mounting Type
- Flush Mounted
- Type of Fastening
- Clamp
- Mounting Orientation
- Horizontal; Vertical
- Modular Components Included
- Cover Frame
- Degree of Protection
- IP20
- Options Available
- "basic"
- Design Range
- Pure Stainless Steel
- Surface Finishing
- Untreated; Matt; Anti fingerprint coating
- Material
- Stainless steel
- Material Details
- Genuine Metal Surface
- Label Space Provided
- Without Label Space
- Color
- stainless steel
- Number of Gangs
- 5-gang
- Number of Modules
- Horizontal 5; Vertical 5
- Product Net Width
- 80 mm
- Product Net Height
- 364 mm
- Product Net Depth / Length
- 11 mm
- Dimension Diagram
- 2CKA000097E4159
- EU Data Act Applicability and Compliance
- Not Applicable
- ETIM 9
- EC000007 - Cover frame for domestic switching devices
- eClass
- V11.0 : 27144001
- Colour
- Stainless steel
- Width
- 80 mm
- Halogen free
- Yes
- Height
- 364 mm
- Depth
- 11 mm
- Number of units
- 5
- With hinged lid
- No
- Surface protection
- Untreated
- Built-in height
- 63 mm
- Built-in width
- 63 mm
- Label space/information surface
- No
- Material quality
- Stainless steel
- Mounting direction
- Horizontal and vertical
- Impact strength
- IK03
- Suitable for subfloor installation duct box
- No
- Transparent
- No
- Suitable for wall duct
- Yes
- Suitable for built-in installation
- No
- Flush-mounted installation
- Yes
- Number of units horizontal
- 5
- Number of units vertical
- 5
- Diameter bore hole (opening)
- 71 mm
- Number of modules horizontal (module system)
- 5
- Number of modules vertical (module system)
- 5
- With mounting grid
- No
- Number of switch inserts
- 5
- Anti-bacterial treatment
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4011395088425
- SAP 1000220434
- Code 8926480
