Safety Switch OTA600P3B

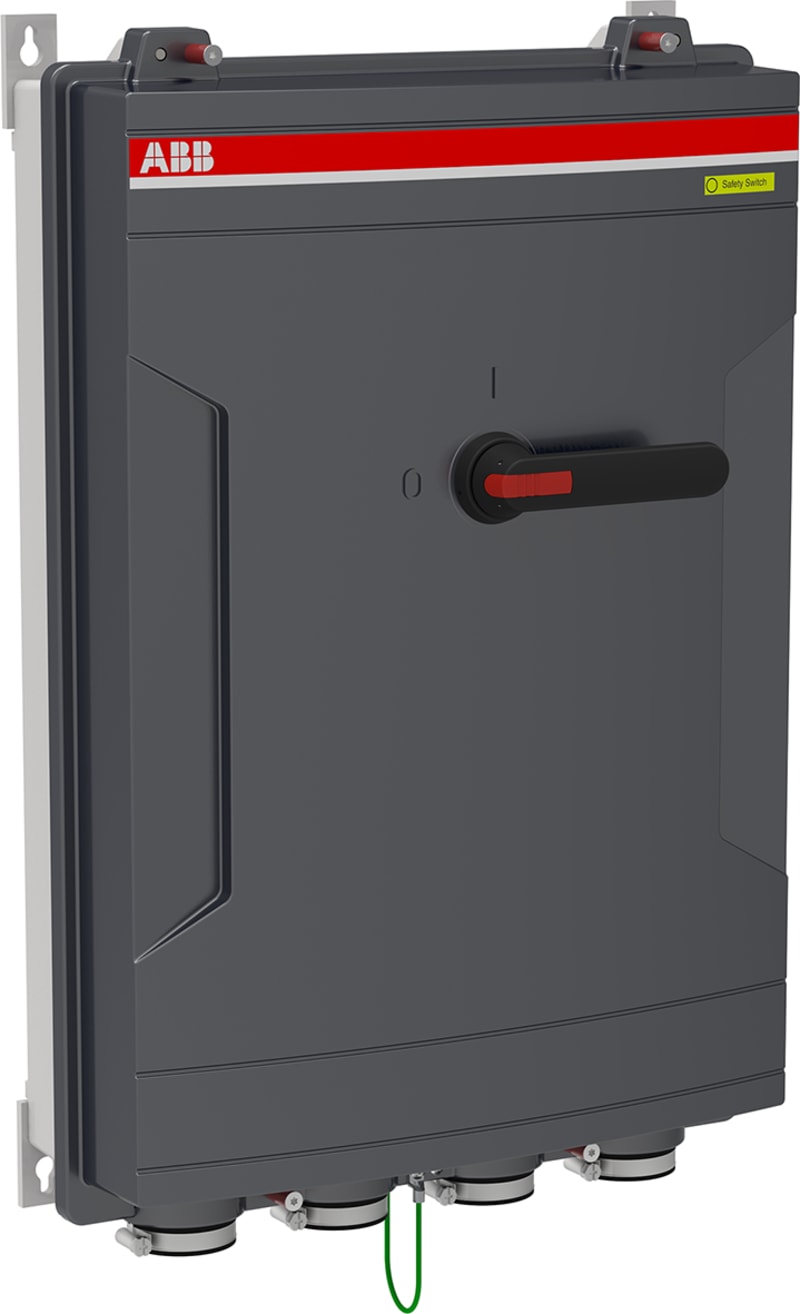

ABB 1SCA144287R1001 — EMC safety switch, 3-p. 415V AC23 540A, 315kW. Mounted auxiliary contact: 2NO2NC. Aluminium enclosure. IP65. Black Pistol handle. Interlocked cover. Defeatable interlocking. The dye casted aluminum alloy (silumin) enclosure is extremely rigid, and well suited for harsh environment. The surface is polyester coated and well protected from corrosion. Installation is made easy, thanks to the key hole type wall fastening, screwed cover and the included rubber type cable glands. The enclosure is arc proof. The cover is interlocked, and the interlocking can be defeated if needed. There are two or four cable entries, and one cable entry for the control cable. The unit is also EMC type, and no additional EMC cable glands are needed. Earthing of the cable shield is done via the pullstopper. Neutral and PE terminals are included.

Manufacturer part number (MPN)

1SCA144287R1001

EAN / GTIN

6417019724584

Sales unit

pcs

Degree of Protection

acc. to IEC 60529 IP65

Pollution Degree

3

Product Net Width

585 mm

Product Net Height

819 mm

Product Net Depth / Length

205 mm

Cable Entry Position

Bottom/Bottom

Cable Outlets Per Side

Blank / 4x28...68+2xM20

Color

RAL7012 / RAL7035

Connecting Capacity Main Circuit

Hole Diameter 12 mm; Screw Clamp / PE Terminal 2pc 25 ... 120 mm²

Conventional Thermal Current (I the )

Fully Enclosed 600 A

Enclosure Material

Aluminium

Enclosure Type

Fro

Handle Color

Black

Handle Type

Pistol

Impact Resistance Rating

Housing IK09

Maximum Mounted Auxiliary Contacts

2 NO, 2 NC

Mechanical Durability

10000

Mounted Auxiliary Contacts

2 NO, 2 NC

Mounting Type

Panel mounted

Neutral Type

Fixed Neutral

Number of Auxiliary Contacts NC

2

Number of Auxiliary Contacts NO

2

Number of Poles

3P

Power Loss

at Rated Operating Conditions per Pole 25 W; Total 75 W

Rated Conditional Short-Circuit Current (I nc )

90 kA

Rated Insulation Voltage (U i )

750 V

Rated Operational Current AC-21A (I e )

(400 V) 600 A; (500 V) 600 A; (690 V) 600 A

Rated Operational Current AC-22A (I e )

(380 ... 415 V) 600 A; (500 V) 600 A; (690 V) 600 A

Rated Operational Current AC-23A (I e )

(380 ... 415 V) 540 A; (500 V) 552 A; (690 V) 551 A

Rated Operational Power AC-23A (P e )

(380 ... 415 V) 315 kW; (500 V) 400 kW; (690 V) 560 kW

Rated Operational Voltage

Main Circuit 1000 V

Rated Short-Circuit Making Capacity (I cm )

(1000 V AC) 80 kA

Rated Short-time Withstand Current Low Voltage (I cw )

for 1 s 20 kA; for 0.2 s 20 kA

Recommended Screw Driver

Main Circuit M12

Special Functions

EMC

Standards

IEC 60947-1, -3

Terminal Type

Bolt

Tightening Torque

acc. IEC 60947-1 77

Declaration of Conformity - CE

1SCC340057D2701

Object Classification Code

Q

ETIM 9

EC000216 - Switch disconnector (low voltage)

ETIM 10

EC000216 - Switch disconnector (AC)

UNSPSC

39122205

IDEA Granular Category Code (IGCC)

5166 >> Safety switch

eClass

V11.1 : 27371403

WEEE Category

4. Large Equipment (Any External Dimension More Than 50 cm)

E-Number (Norway)

1414561

E-Number (Sweden)

3134540

HS Code

8536.30
