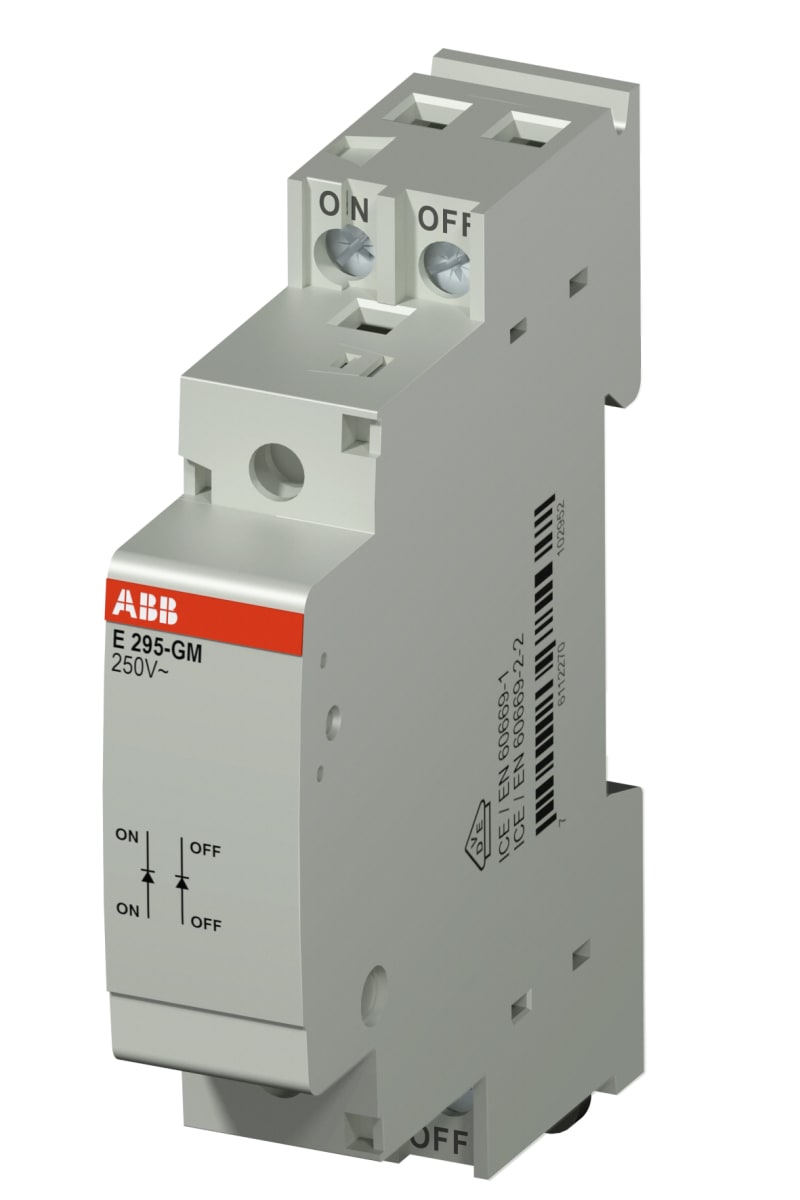

Gruppemodul E295-GM (2TAZ310002R1000)

ABB 2TAZ310002R1000 — Latching relays are electromagnetically operated devices. The E290 range from ABB can be used to realise a simple, energysaving and efficient lighting control system. These devices are mainly used in rivate houses, factory premises and commercial and public buildings as well as in industrial plants. As a rule, latching relays controlled by means of impulse buttons are installed where it is necessary for lighting to be operated from at least three different places. Each time a command is initiated (by means of an impulse button), an electrical pulse is applied to the coil of the latching relay. The coil in the device is briefly energised and activated. That short pulse to the coil leads to the mechanical latch of the internal main contacts. The internal switching mechanism enables us to achieve a safe and reliable interlock (in the same way as a ballpoint pen). Each pulse that is sent to the magnetic coil system switches the device ack to its previous position where it is held mechanically until the next control pulse is received. The devices are designed for rated currents 16 and 32A. Through the combinable accessories the main modules can be used in nearly all market applications.

Manufacturer part number (MPN)

2TAZ310002R1000

EAN / GTIN

7612270939466

Sales unit

pcs

Package quantity

10 pcs

Function

Group module

Number of Main Contacts NC

0

Number of Main Contacts NO

0

Tightening Torque

1.2 - 1.5 N·m

Accessory Type

Other

Connecting Capacity

Solid 1 x 1 ... 10 mm²; Flexible 2 x 2.5 mm²; Flexible with Cable End 1 x 0.75 ... 6 mm²; Flexible with Cable Lug 1 x 0.75 ... 6 mm²

Rated Voltage (U r )

250 V AC

Rated Control Supply Voltage (U s )

250 V AC

Rated Current (I n )

1 A

Rated Frequency (f)

50 Hz

RAL Number

RAL 7035 - Light Grey

Color

Grey

Ambient Air Temperature

Operation -25...+55 °C; Storage -40...+70 °C

Environmental Information

2CCC441012D0202

Climate Class Reference Standard

IEC 60068-2-2 - Deals with dry heat tests applicable both to heat-dissipating and non heat-dissipating specimens; IEC 60068-2-30 - Determines the suitability of components, equipment or other articles for use, transportation and storage under conditions of high humidity - combined with cyclic temperature changes and, in general, producing condensation on the surface of the specimen.; IEC 60068-2-1 - Deals with cold tests applicable to both non heat-dissipating and heat-dissipating specimens

Product Net Width

18 mm

Product Net Height

85 mm

Product Net Depth / Length

58 mm

Dimension Diagram

9AKK107992A6185

Declaration of Conformity - CE

2CCC005102D0201

Declaration of Conformity - UKCA

9AKK108467A6139

VDE Certificate

VDE E29x_40040851

Instructions and Manuals

2CCC441005M0801

Mounting Type

DIN-Rail

ETIM 9

EC000188 - Latching relay

UNSPSC

39122317

eClass

V11.0 : 27371692

Object Classification Code

K

Standards

IEC/EN 60669-1; IEC/EN 60669-2-2

Country of origin

China

HS Code

8536.20

• EAN 7612270939466
• SAP 1200640801
• Code 83055416
