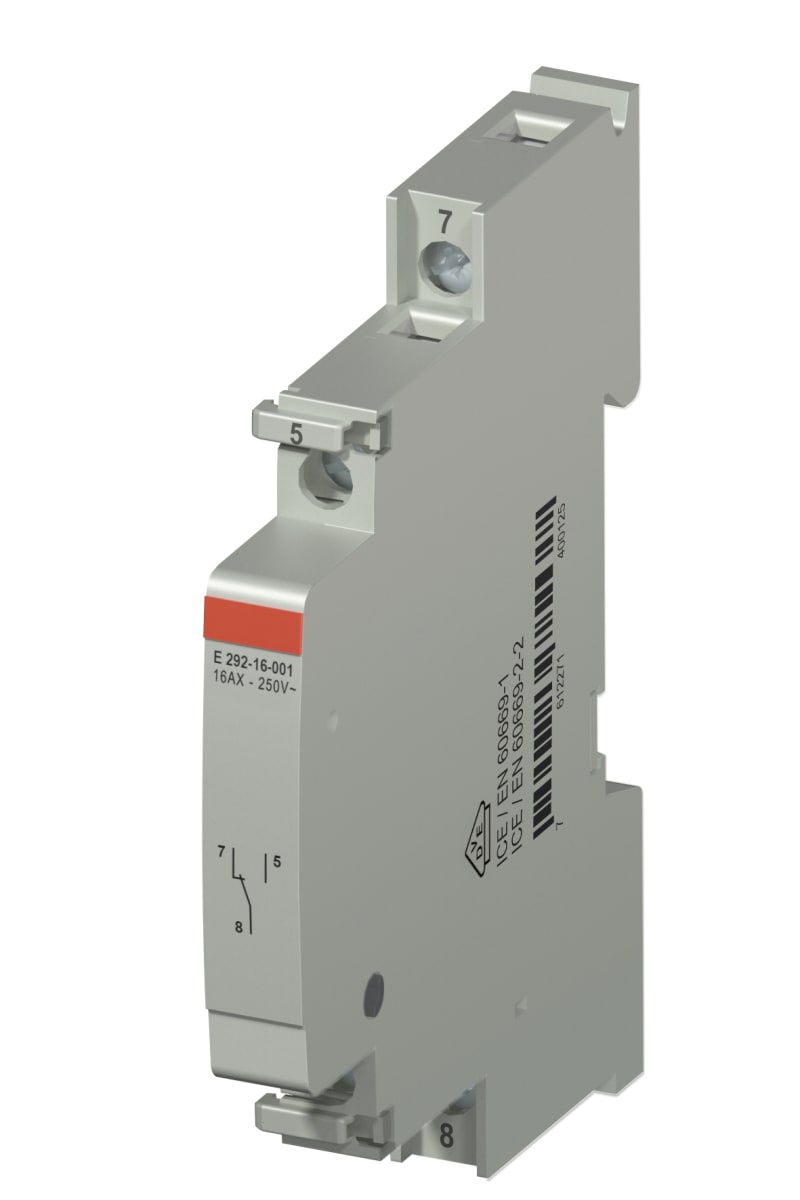

Contact module E292-16-001

ABB 2CCA704302R0001 — Latching relays are electromagnetically operated devices. The E290 range from ABB can be used to realise a simple, energysaving and efficient lighting control system. These devices are mainly used in rivate houses, factory premises and commercial and public buildings as well as in industrial plants. As a rule, latching relays controlled by means of impulse buttons are installed where it is necessary for lighting to be operated from at least three different places. Each time a command is initiated (by means of an impulse button), an electrical pulse is applied to the coil of the latching relay. The coil in the device is briefly energised and activated. That short pulse to the coil leads to the mechanical latch of the internal main contacts. The internal switching mechanism enables us to achieve a safe and reliable interlock (in the same way as a ballpoint pen). Each pulse that is sent to the magnetic coil system switches the device ack to its previous position where it is held mechanically until the next control pulse is received. The devices are designed for rated currents 16 and 32A. Through the combinable accessories the main modules can be used in nearly all market applications.

Manufacturer part number (MPN)

2CCA704302R0001 EAN / GTIN: 7612270939527 Sales unit: pcs Package quantity: 10 pcs Function: Mechanical latching relay main contact module Number of Main Contacts NC: 1 Number of Main Contacts NO: 1 Tightening Torque: 1.2 - 1.5 N·m Accessory Type: Connecting bridge Contact Type: Change-Over (CO) Connecting Capacity: Solid 1 x 1 ... 10 mm²; Flexible 2 x 2.5 mm²; Flexible with Cable End 1 x 0.75 ... 6 mm²; Flexible with Cable Lug 1 x 0.75 ... 6 mm² Rated Voltage (U r ): 250 V AC Rated Control Supply Voltage (U s ): 250 V AC Rated Current (I n ): 16 A Maximum Control Current DC: 8 A Rated Frequency (f): 50 Hz minimum Switching Capacity: 24 V; 10 mA Power Loss: Total 0.32 W Number of Contacts CO: 1 RAL Number: RAL 7035 - Light Grey Color: Grey Ambient Air Temperature: Operation -25...+55 °C; Storage -40...+70 °C Environmental Information: 2CCC441012D0202 Climate Class Reference Standard: IEC 60068-2-2 - Deals with dry heat tests applicable both to heat-dissipating and non heat-dissipating specimens; IEC 60068-2-30 - Determines the suitability of components, equipment or other articles for use, transportation and storage under conditions of high humidity - combined with cyclic temperature changes and, in general, producing condensation on the surface of the specimen.; IEC 60068-2-1 - Deals with cold tests applicable to both non heat-dissipating and heat-dissipating specimens Product Net Width: 9 mm Product Net Height: 85 mm Product Net Depth / Length: 58 mm Dimension Diagram: 9AKK107992A6182 Declaration of Conformity - CE: 2CCC005102D0201 Declaration of Conformity - UKCA: 9AKK108467A6139 VDE Certificate: VDE E29x_40040851 Instructions and Manuals: 2CCC441005M0801 Mounting Type: DIN-Rail ETIM 9: EC000188 - Latching relay UNSPSC: 39122317 eClass: V11.0 : 27371692 Object Classification Code: K Standards: IEC/EN 60669-1; IEC/EN 60669-2-2 Number of contacts as change-over contact: 1 Country of origin: Switzerland

HS Code

8536.20

• EAN 7612270939527
• SAP 1200640759
• Code 83055439
