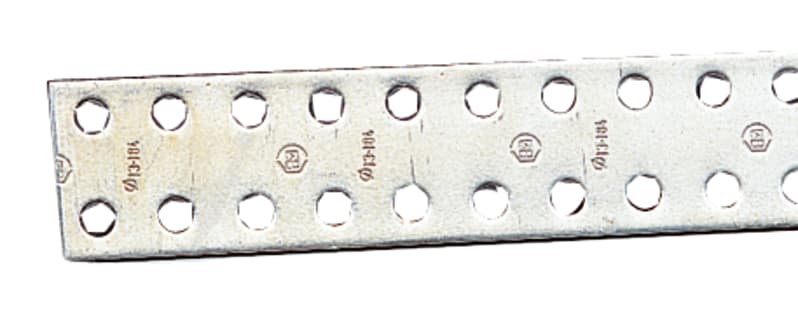

ABB 2TKA110011G1 PP36 Tinned Copper Earthing Band 35 mm² 1 m

ABB PP36 (2TKA110011G1) is an earthing band used to bond large air-conditioning and ventilation ducts to the earthing system. Made from 1.5 mm thick tinned copper with 35 mm² cross-section and 1 m length, it fits cylindrical items from 28 to 280 mm diameter (clamping range 13-164 mm) and is designed for use with the AM2 tensioner and AM3 connector. Where higher conductivity than 35 mm² is required both ends of the band must be pressed together.

Manufacturer part number (MPN)

2TKA110011G1

EAN / GTIN

6410050260974

Sales unit

pcs

Package quantity

20 pcs

Recyclability Rate of the Product acc. to EN45555

Design for Closing Resource Loops - Standard EN45555 - 86.2 %

Sustainable Material Content in Packaging (wt. %)

Mechanically Recycled Polymer - 8.1 %; Recycled Cardboard - 62.9 %

End Of Life Disassembling Instructions

9AKK108468A2670

Material

Metal, Copper

Environmental Information

9AKK108468A2670

Product Net Width

1 m

Product Net Height

0.0045 m

Product Net Depth / Length

0.035 m

Dimension Diagram

9AKK108469A7659

Declaration of Conformity - CE

9AKK108472A4419

ETIM 9

EC000493 - Earthing pipe clamp

Clamping/chucking range

13–164 mm

Country of origin

Estonia

HS Code

8536.90

• EAN 6410050260974
• SAP 1000513403
• Code 8949026
