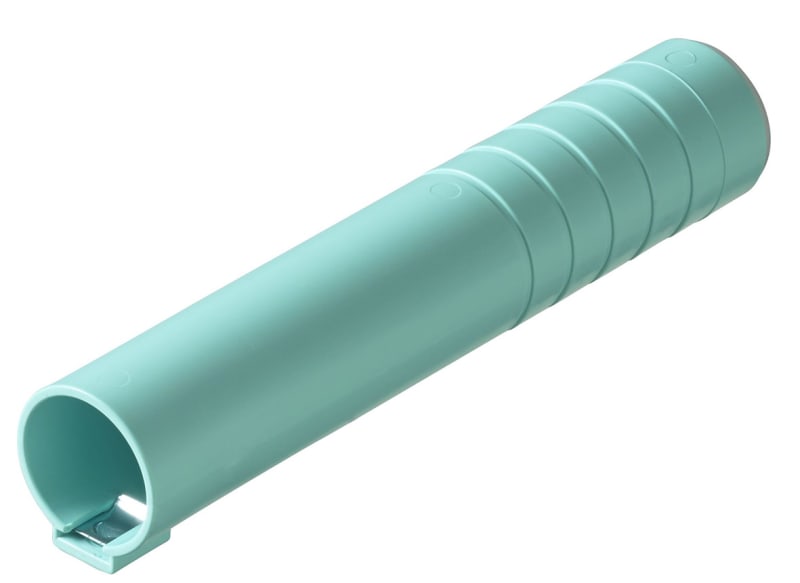

Endecoupling AJ5.25 (2TKA00004192)
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2TKA00004192 — A plug is supplied with each conduit end piece. Conduit end piece AJ5.25 is primarily used for termination of plastic conduits in concrete casting. After casting, the conduit end piece is cut to the desired length at one of the cut-off grooves, and the trunking is continued with a conduit of the same size. The plug protects the conduit from dirt, concrete and foreign particles. Made of halogen free material (IEC/61249-2-21).
Technical Specifications
- Manufacturer part number (MPN)
- 2TKA00004192
- EAN / GTIN
- 6438199008110
- Sales unit
- pcs
- Package quantity
- 30 pcs
- Surface Finishing
- Uncoated; Untreated
- Material
- Plastic; Polypropylene (PP)
- Environmental Information
- 9AKK107991A0762
- Product Net Width
- 0.03 m
- Product Net Height
- 0.032 m
- Product Net Depth / Length
- 0.03 m
- Dimension Diagram
- 9AKK108469A7598
- Declaration of Conformity - CE
- 9AKK108472A3937
- ETIM 9
- EC000937 - Terminal sleeve for installation tubes
- Material quality
- Polypropylene (PP)
- Quality of surface coating
- Uncoated
- Surface polished
- No
- Surface brushed
- No
- Halogen free
- Yes
- Model
- Plug-in
- Separable
- No
- For nominal tube diameter
- 25 mm
- Colour
- Green
- Country of origin
- Lithuania
Standards & Compliance
- HS Code
- 3917.40
Cross References
- EAN 6438199008110
- SAP 1200478759
- Code 82625375
Product Documentation
