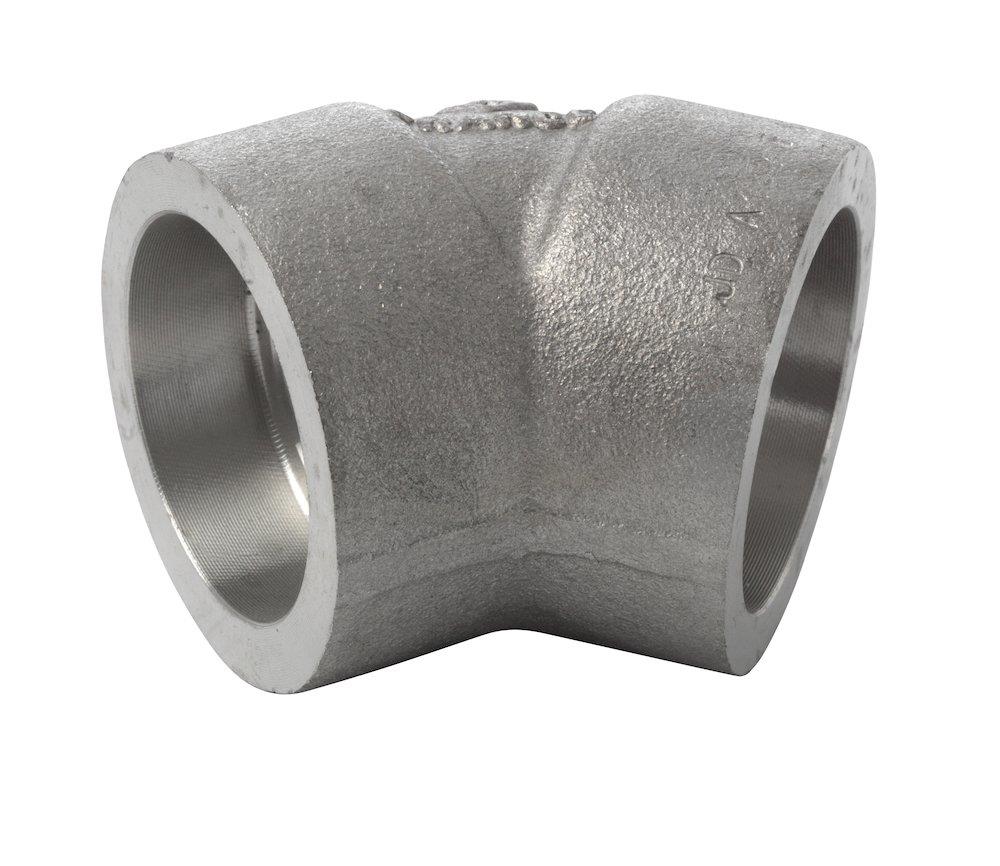

3000# Weld Angle acid-resistant - 1", 45°, 3000LBS
Pricing
Request a quote
We reply within 24 hours
Product Description
3000# Weld Angle acid-resistant. High pressure angles (Technique / Acid-resistant and Stainless fittings / 3000# fittings and pipes). Principal data: dimension 1", angle 45°, pressure ansi 3000 Lbs. Supplied under manufacturer part number TS13213590, HS code 7307.29, country of origin France.
Technical Specifications
- Product type
- High pressure angles Product group: Acid-resistant and Stainless fittings Dimension: 1" Angle: 45° Pressure ANSI: 3000 Lbs material certificate: EN 10204 3.1 Steel quality: 316L Weight: 0.45 kg Thickness: 4.55 mm Insert length: 12.5 mm A dimension min: 12 mm A dimension max: 16 mm B dimension min: 33.9 mm B dimension max: 34.3 mm C dimension min: 4.98 mm C dimension max: 5.69 mm D dimension min: 25.9 mm D dimension max: 27.4 mm REACH SVHC substance above 0.1%: None Carbon footprint (EPD): 0.0012 kg CO2e per pcs Environmental declaration: LCA Country of origin: France Customs tariff code (EU CN): 73072980 HS code: 7307.29 Manufacturer part number: TS13213590
Standards & Compliance
- HS Code
- 7307.29
Cross References
- MPN TS13213590
Product Documentation
