Product Description

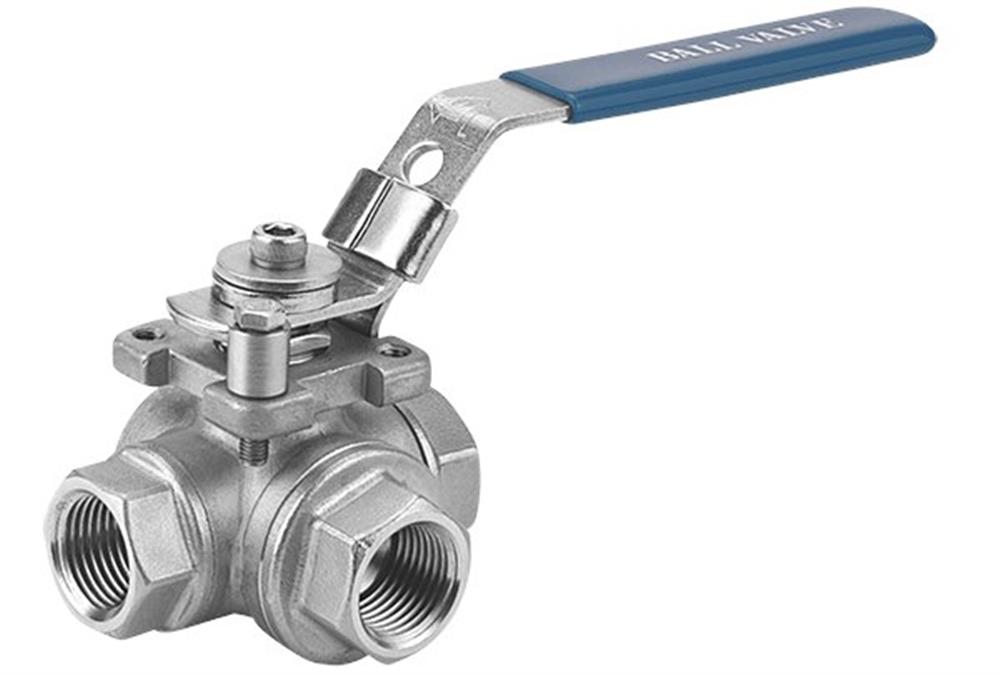

3-way Ball Valve L-bore 3× socket 316/316/PTFE. Three-way ball valves (Technique / Industrial valves / Ball valves). Principal data: thread 1 3/8", pressure pn 63 bar. Supplied under manufacturer part number VD10652180, HS code 8481.80, country of origin Netherlands.
Technical Specifications
- Product type
- Three-way ball valves Product group: Industrial valves Thread 1: 3/8" Pressure PN: 63 bar Thread 2: 3/8" Thread 3: 3/8" Temperature max: 180 °C Temperature min: -20 °C Length built-in dimension: 76 mm DN dimension: 10 House: 316 acid-resistant Ball / spindel: 316 acid-resistant Liner / packing: PTFE W dimension: 153 mm H dimension: 67 mm A dimension: 8 mm D dimension: 25.5 mm E dimension: 42 mm H1 dimension: 29.1 mm H2 dimension: 18 mm REACH SVHC substance above 0.1%: None Carbon footprint (EPD): 0.0011 kg CO2e per pcs Environmental declaration: LCA Country of origin: Netherlands Customs tariff code (EU CN): 84818081 HS code: 8481.80 Manufacturer part number: VD10652180
Standards & Compliance
- HS Code
- 8481.80
Cross References
- MPN VD10652180
Product Documentation
