Product Description

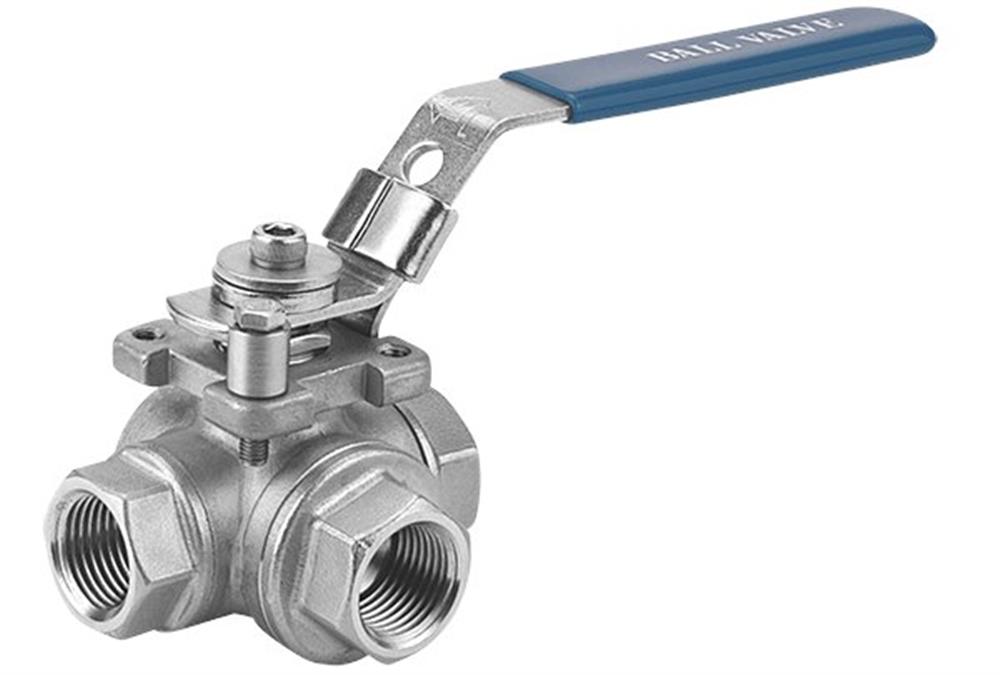

3-way Ball Valve L-bore 3× socket 316/316/PTFE. Three-way ball valves (Technique / Industrial valves / Ball valves). Principal data: thread 1 2", pressure pn 63 bar. Supplied under manufacturer part number VD12655135, HS code 8481.80, country of origin Netherlands.
Technical Specifications
- Product type
- Three-way ball valves Product group: Industrial valves Thread 1: 2" Pressure PN: 63 bar Thread 2: 2" Thread 3: 2" Temperature max: 180 °C Temperature min: -20 °C Length built-in dimension: 145 mm DN dimension: 50 House: 316 acid-resistant Ball / spindel: 316 acid-resistant Liner / packing: PTFE W dimension: 246 mm H dimension: 124 mm A dimension: 12.5 mm D dimension: 69.5 mm E dimension: 70 mm H1 dimension: 64.5 mm H2 dimension: 34 mm REACH SVHC substance above 0.1%: None Carbon footprint (EPD): 0.0155 kg CO2e per pcs Environmental declaration: LCA Country of origin: Netherlands Customs tariff code (EU CN): 84818081 HS code: 8481.80 Manufacturer part number: VD12655135
Standards & Compliance
- HS Code
- 8481.80
Cross References
- MPN VD12655135
