Product Description

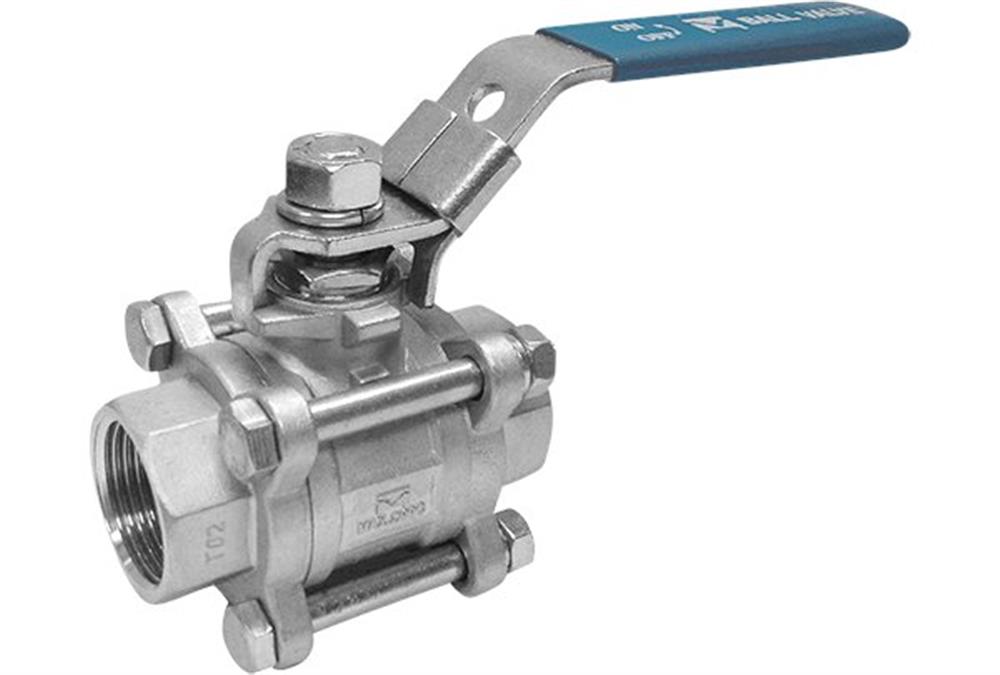

3-piece Ball Valve socket/socket 316/316/PTFE. Ball valves with threads (Technique / Industrial valves / Ball valves). Principal data: thread 1 1", pressure pn 63 bar. Supplied under manufacturer part number VB50653590, HS code 8481.80, country of origin Netherlands.
Technical Specifications
- Product type
- Ball valves with threads Product group: Industrial valves Thread 1: 1" Pressure PN: 63 bar Thread 2: 1" Temperature max: 180 °C Temperature min: -20 °C Length built-in dimension: 90 mm House: 316 acid-resistant Ball / spindel: 316 acid-resistant Liner / packing: PTFE Passage: Full bore W dimension: 149 mm H dimension: 80 mm C dimension: 7.9 mm REACH SVHC substance above 0.1%: None Carbon footprint (EPD): 0.0027 kg CO2e per pcs Environmental declaration: LCA Country of origin: Netherlands Customs tariff code (EU CN): 84818081 HS code: 8481.80 Manufacturer part number: VB50653590
Standards & Compliance
- HS Code
- 8481.80
Cross References
- MPN VB50653590
Product Documentation
