Product Description

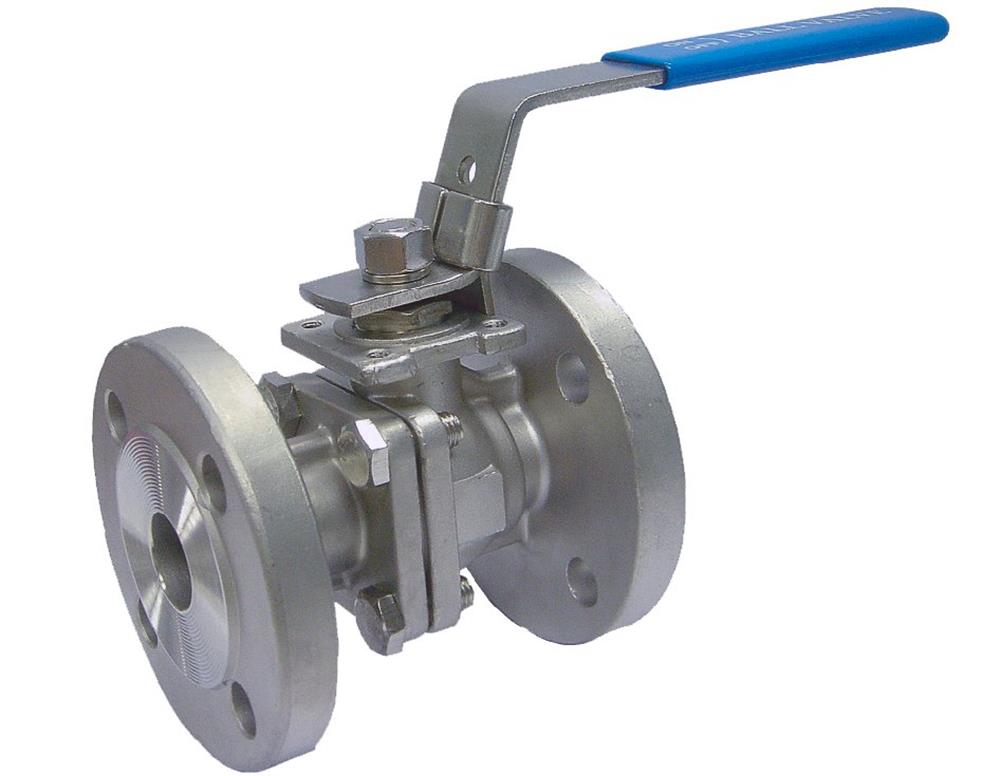

2-piece Ball Valve flange 316/316/PTFE. Ball valves with flange (Technique / Industrial valves / Ball valves). Principal data: dn dimension 40, pressure pn 16 bar, top flange F07/14mm. Supplied under manufacturer part number VF10384505, HS code 8481.80, country of origin Netherlands.
Technical Specifications
- Product type
- Ball valves with flange Product group: Industrial valves DN dimension: 40 Pressure PN: 16 bar Top flange: F07/14mm Temperature max: 200 °C Temperature min: -20 °C Length built-in dimension: 140 mm Bolt circle diameter: 110 mm House: acid-resistant 316 Ball / spindel: acid-resistant 316 ISO top flange: Indirekte montage Breakaway torque: 22.9 nm Passage: Full bore Connection: Flange W dimension: 267 mm H dimension: 130 mm H1 dimension: 100.9 mm H2 dimension: 39.4 mm D1 dimension: 70 mm M1 dimension: M8 mm REACH SVHC substance above 0.1%: None Carbon footprint (EPD): 0.0214 kg CO2e per pcs Environmental declaration: LCA Country of origin: Netherlands Customs tariff code (EU CN): 84818081 HS code: 8481.80 Manufacturer part number: VF10384505 VVS number: 418543511
Standards & Compliance
- HS Code
- 8481.80
Cross References
- MPN VF10384505
Product Documentation
